BODY
51

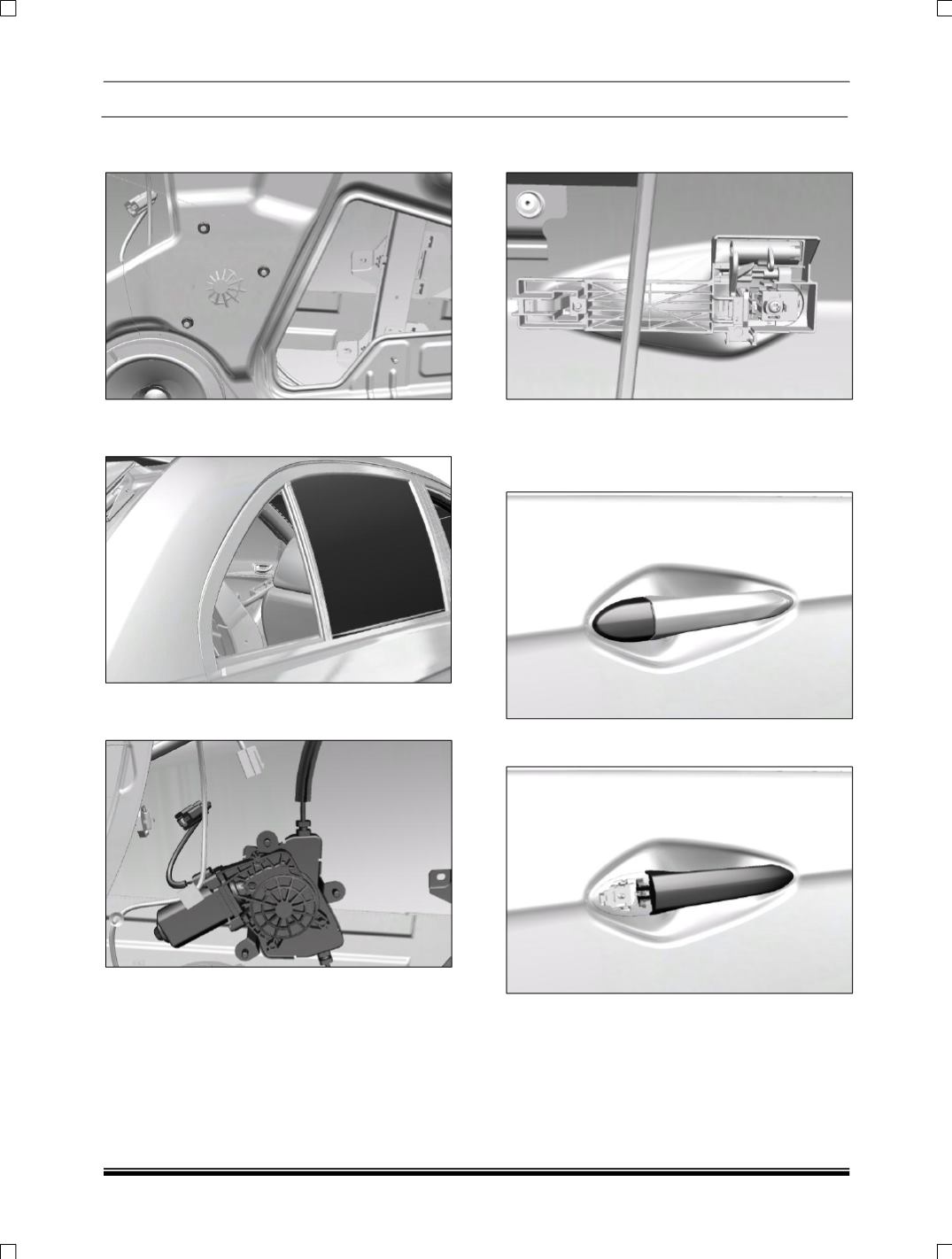

22. Also, remove the 3-mounting bolt of window
winding regulator.
23. Pull out the glass from outside along with the
glass-holding bracket.
24. Pull out the regulator along with the bracket
through the panel hole from inside.
25. Remove Rear door glass run mould of glass
guide channel.
26. Remove the door handle unit after
unscrewing its screws from the other end.
27. Tighten the door lock adjusting screw in antic
clock wise direction so that the clamp over
the lock will slide out. (If applicable)
28. Remove the door lock unit.
29. Slightly slide outer gripper handle and pull it
out.
