BODY
3
9.4. INTERIORS

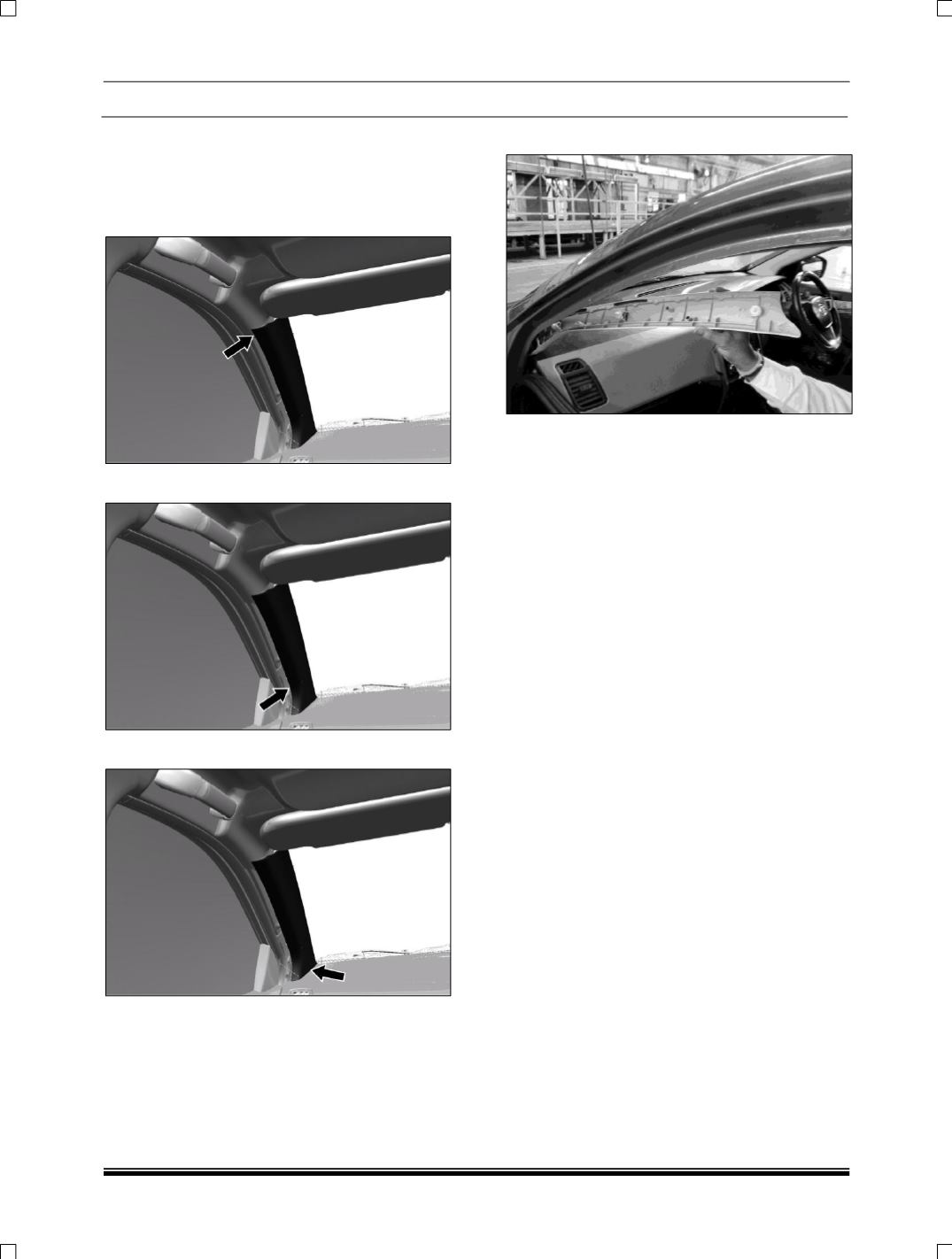

9.4.1 REMOVAL OF “A” PILLAR TRIM:
1. Remove door beading at A Pillar trim location.
2. Pull “A” Pillar trim from upper locater.
3. Remove “A” Pillar trim from Lower locators.
4. Pull “A” Pillar trim bottom snaps from slots.
5. Remove “A” Pillar trim.
REFITMENT OF “A” PILLAR TRIM:
1. Locate
“A”
pillar bottom snaps in slots
properly.
2. Push
“A”
Pillar trim
3. Ensure Proper fitment of three locators.
4. Refit door Bidding
