BODY
5
6.

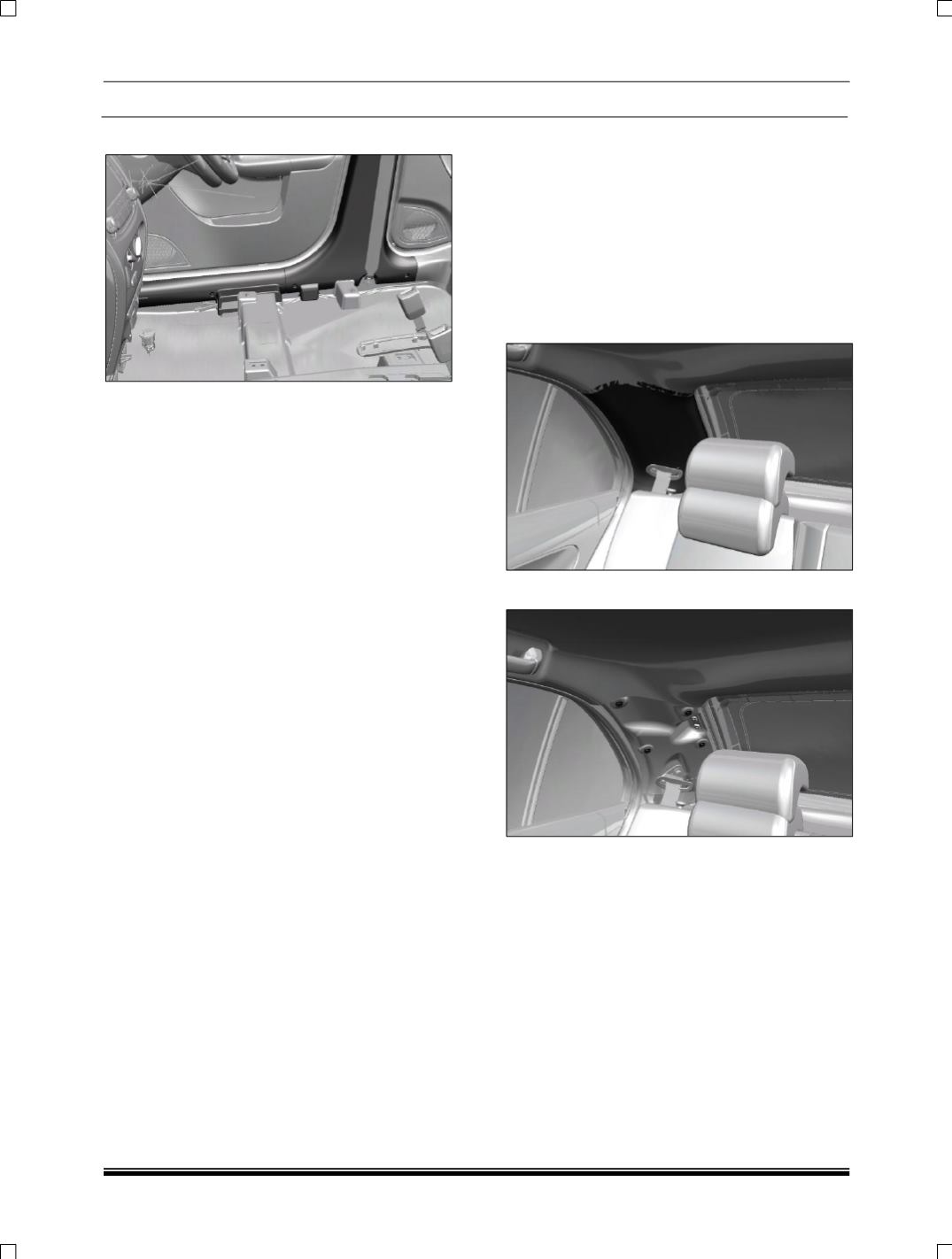

Remove “B” Pillar lower trim.
REFITMENT
OF “B”' PILLAR TRIMS:
1. Refit 'B' Pillar Upper & lower trim by aligning
snap fit buttons. See that 'B' Pillar upper trim
is appropriately locked in lower trim.
2. Refit 'B' Pillar lower trim front & rear screws.
3. Refit door Bidding.
4. Refit Front Seat. “Refer “R+R Front Seat”.
9.4.4 REMOVAL OF 'C' PILLAR TRIM:
1. Fold rear seat & remove Parcel Shelf. Refer
“R+R parcel shelf
2. Remove Tailgate Side Beading: Refer “R + R
tailgate Beading”
3. Remove Rear Door Beading at Rear Quarter
location: Refer “R+R Bidding”
4. Remove bolt of rear seat belt at rear.
5. Pull out C pillar from top.
6. Pull out 'C' pillar trim from Rear Quarter trim.
7. Remove fastener for rear seat belt anchor &
take off 'C' pillar trim.
