Revotron 1.2T
19

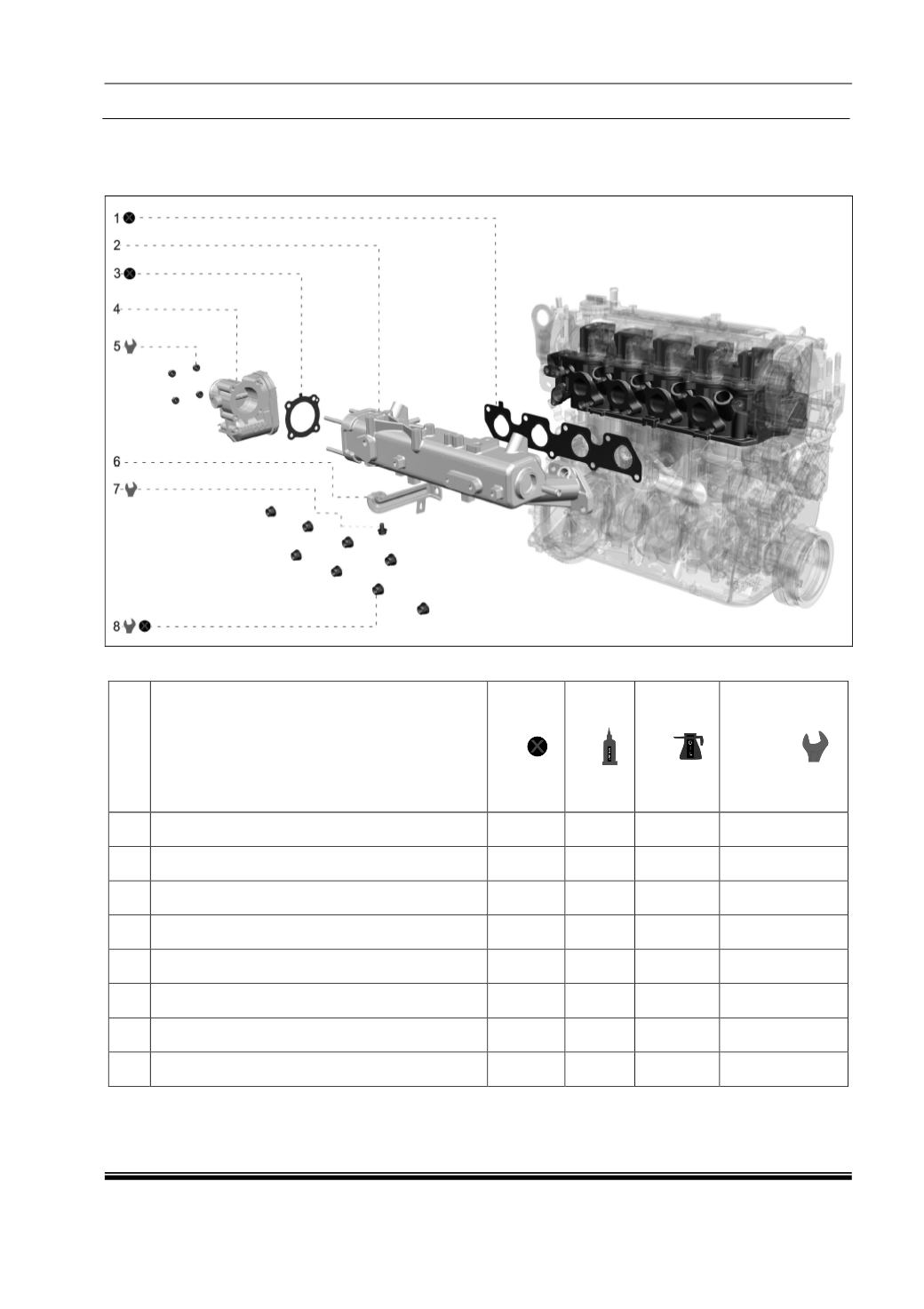

2.3 CONSTRUCTIONAL AND SERVICE DETAILS :
A. Intake Manifold :
Intake Manifold :
No.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TIGHTENING
TORQUE
(Kgfm)
1 Gasket (Intake Manifold)
2 Intake Manifold
3 Gasket (For Electronic Throttle Control)
4 Electronic Throttle Control
5 ETC to Intake Manifold (HEX.FL.Nut AM6)
1
6 Intake Manifold Support Bracket
7 Intake Manifold Support Bracket (M6)
1
8 Self Locking Nut (Clinch Nut M8 X 1.25)
1.9 to 2.1
