6.9.1.2 DISASSEMBLY AND ASSEMBLY OF
REAR SHOCK ABSORBER:
DISASSEMBLY OF REAR SHOCK
ABSORBER:

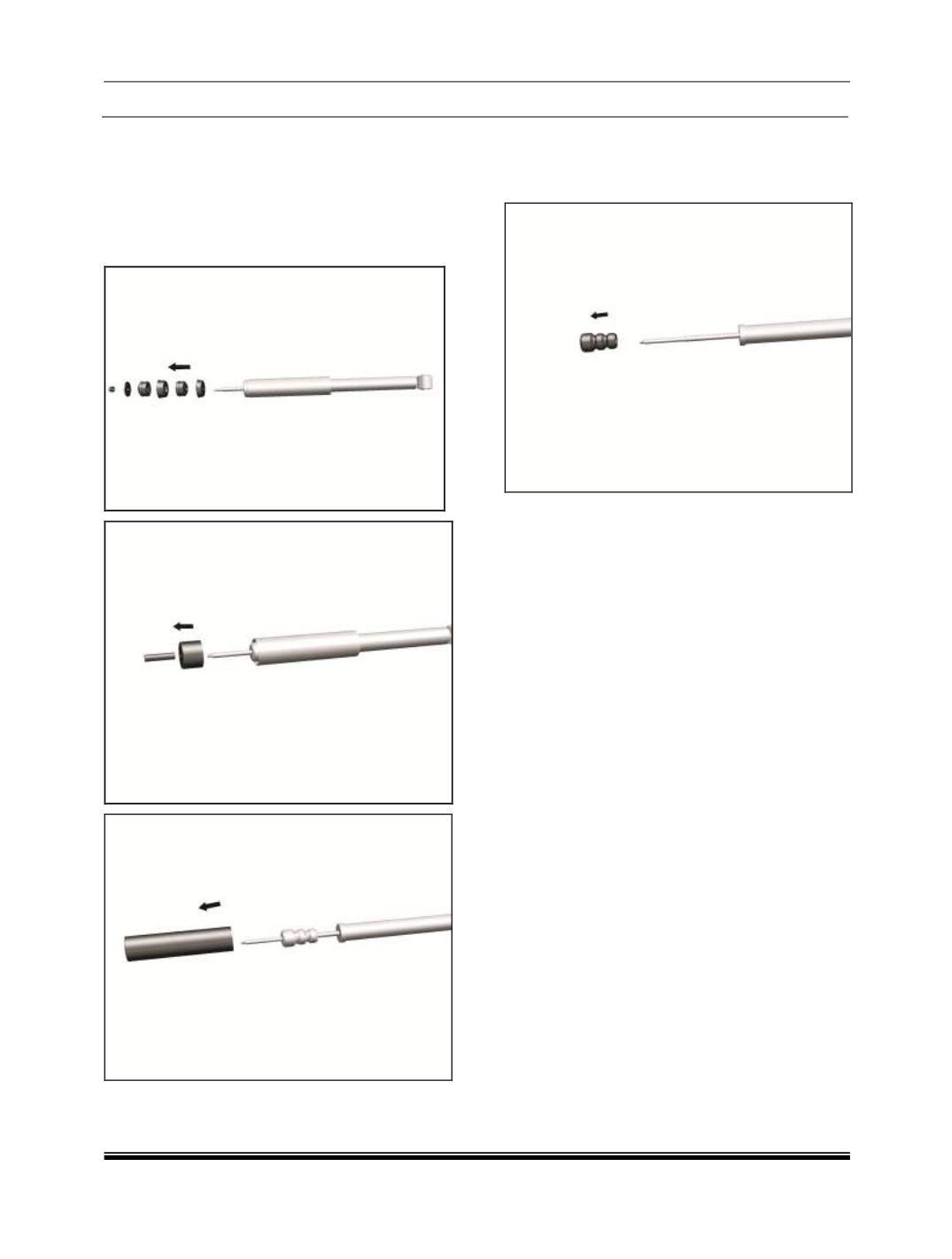

1. Remove the rubber pad and metal washer as
shown in Fig.
2. Pull the plastic cover apart.
3. Pry out the bump stop from the shock absorber
as shown in fig
4. Check for any oil leakage in the shock
absorber, if any replace the unit.
Check bump stop for cracks and replace if any.
Check top rubber for cracks.
Check dust cover for damage and replace it if
any.
ASSEMBLY OF REAR SHOCKABSORBER:
1. Refit the bump stop over the shock absorber.
2. Place the metal cover and washer over it.
3. Position the rubber pad over the assembled
Unit.
