SUSPENSION
36
15. Disconnect the bundy pipe/Hose from wheel
cylinder. Remove bleed screw. Put rubber dust
cap on to the bundy pipe to avoid brake fluid
from spilling and contamination.

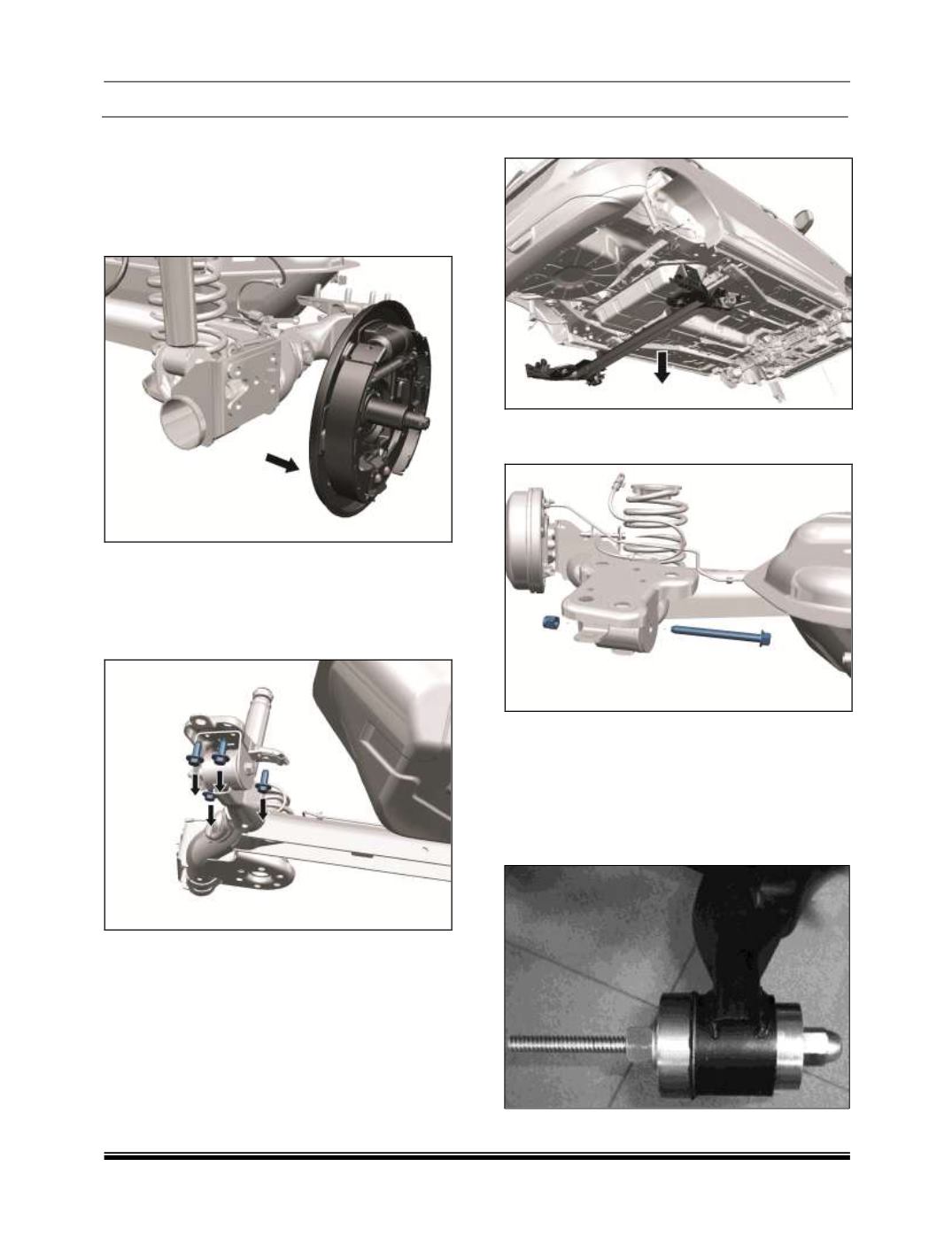

16. Remove the stub axle and back plate along
with brake shoe assembly as shown in figure
17. Remove the shock absorber lower bolts and
coil springs. (Refer removal and refitment of
shock absorber and coil springs)
18. Loosen and remove the twist beam bracket
bolts on both sides.
19. Lower the twist beam along with bracket
20. Remove the twist beam cross bolt on both
sides
21. Twist beam bush removal
Remove twist beam front pivot bush using special
tools as shown in below arrangement.
NOTE:
Apply soap water to the bush and the bore of twist
beam assembly before installation.
