SUSPENSION
24

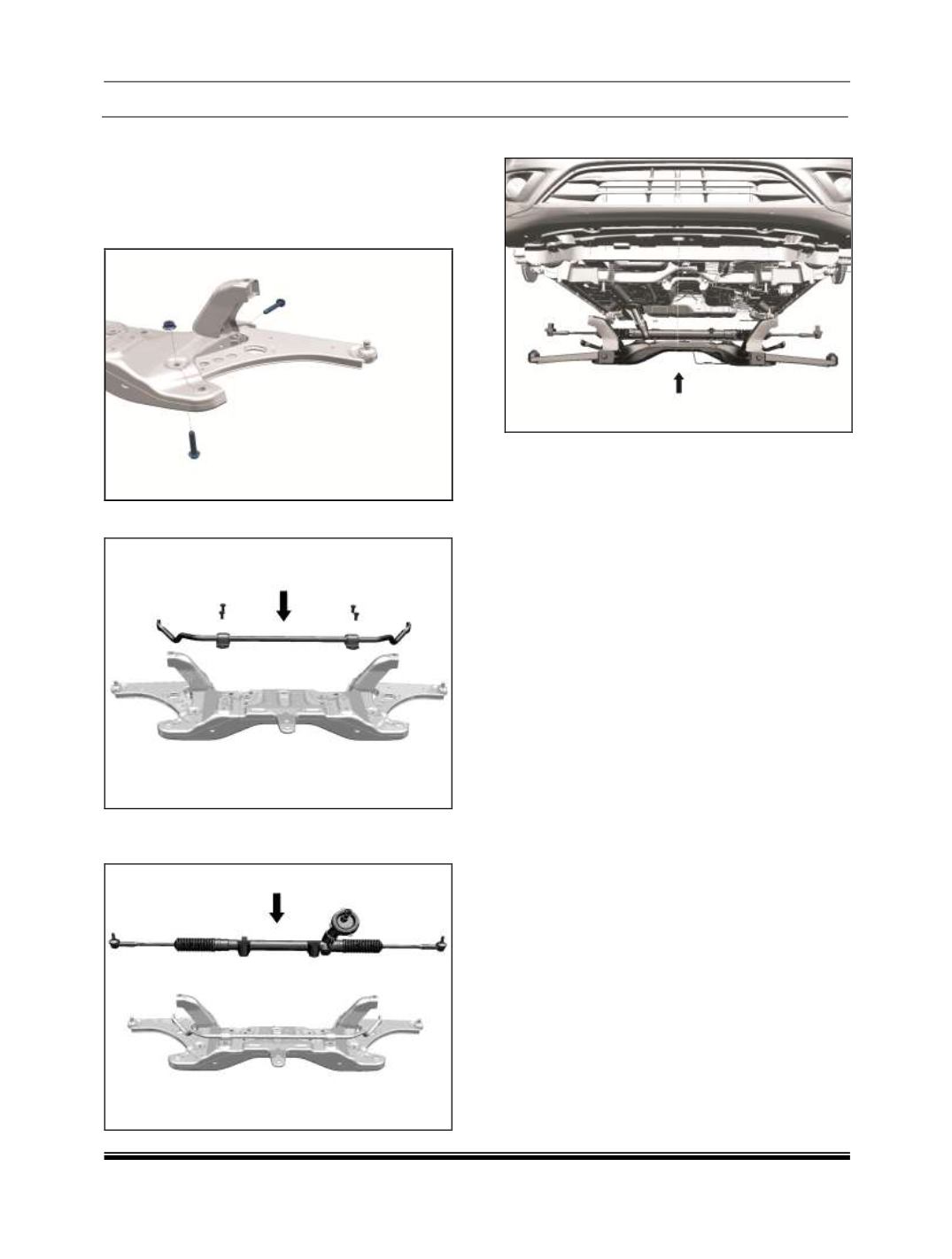

INSTALLATION OF SUBFRAME ASSEMBLY
1. Assemble the ball joint assembly to the lower
arm.
2. Position the lower arm to the Subframe and
tighten its front and rear pivot bush bolts.
3. Assemble anti roll bar to Subframe
4. Assemble the steering rack assembly to
Subframe.
5. Raise the cross member to the body
6. Fix the Subframe to the vehicle by tightening
the four bolts and one screw
7. Connect the EPAS for the rack assembly.
8. Fit the tie rod ball joint of steering rack to the
knuckle.
9. Fix the lower arm to the knuckle.
10.Fix the other attachments like 'C' mount and
stab link.
