SUSPENSION
37
INSTALLATION

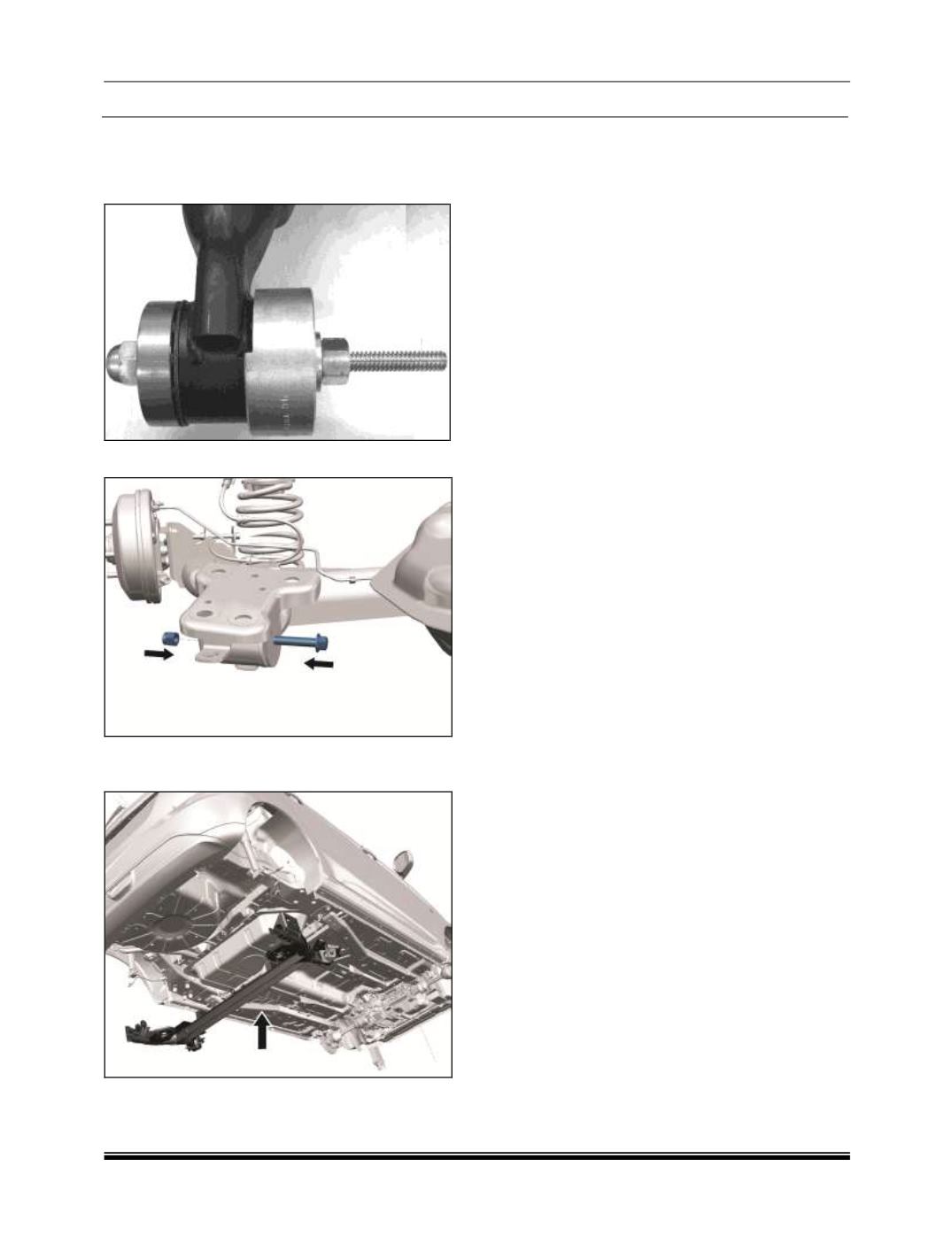

1. Install twist beam front pivot bush using special
tools as shown in below arrangement.
2. Tighten the cross bolt of the twist beam fig.
3. Lift and properly position the twist beam along
with bracket.
4. Tighten the four bolts of bracket on both sides.
5. Fix the brake lines and parking brake cable
mounting on the torsion beam.
6. Fix the back plate assembly along with brake
shoes and stub axle to the torsion beam.
7. Fit the brake drum.
8. Fix the shock absorber and coil spring to the
torsion beam. (Refer the refitment of shock
absorber and coil springs)
9. Top up the brake fluid and carry out the
bleeding of brakes. (Refer brakes).
