B. DRIVESHAFT REMOVAL – RH SIDE:
1. The removal of wheel side joint is similar to
that of LH side drive shaft.
2. Remove the fasteners and remove the right
driveshaft complete with intermediate
driveshaft use similar method to remove the
transaxle side as used in LH side drive shaft.
INSTALLATION
1. Follow the same procedure to refit the
driveshaft as that of LH driveshaft, but make
sure to place the intermediate driveshaft in its
housing and secure its nuts.
C. INTERMEDIATE SHAFT
1. Remove the right drive shaft following the
procedure of DRIVESHAFT REMOVAL – RH
SIDE.

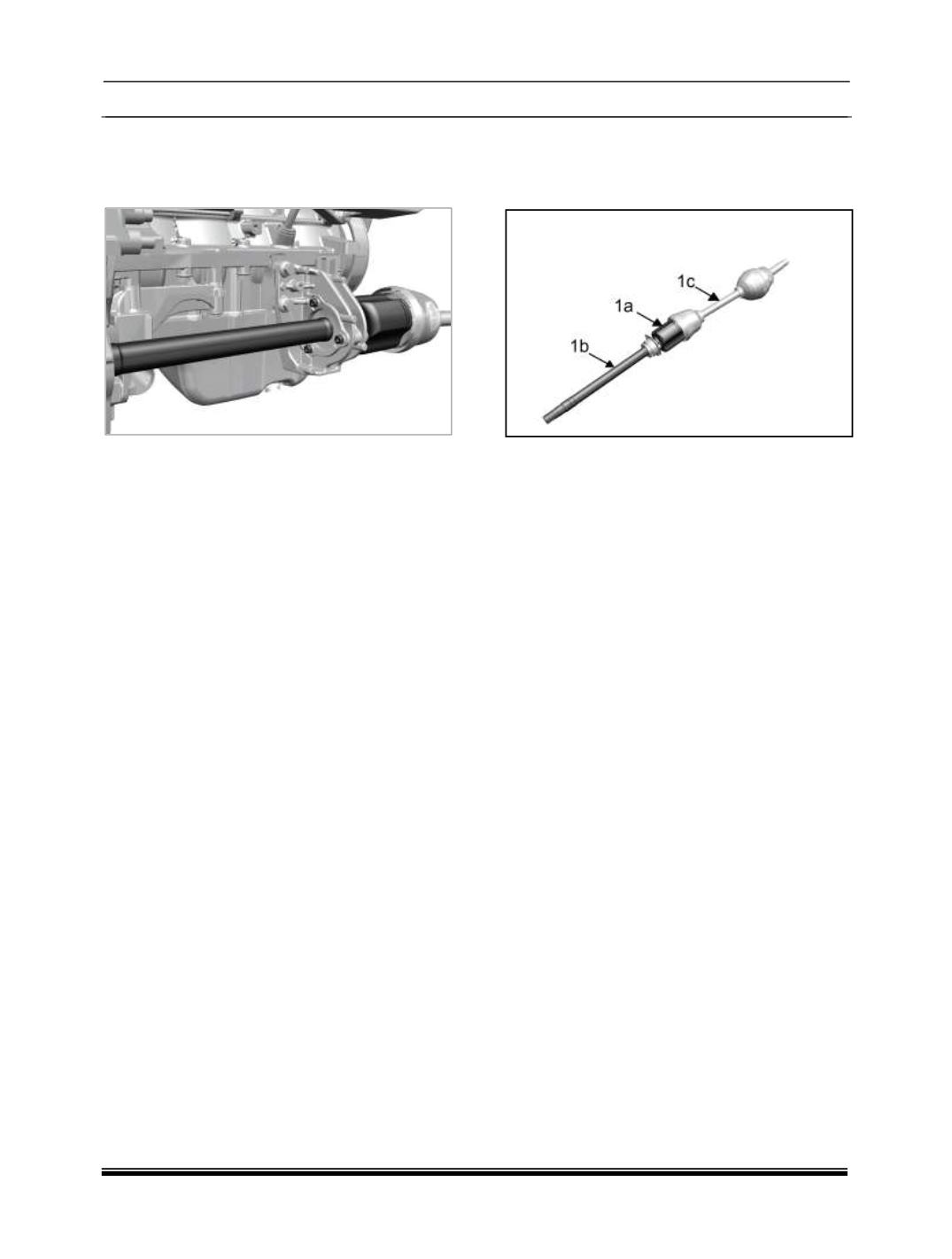

2. Loosen collar (1a) and disconnect the
intermediate driveshaft (1b) from the right
driveshaft (1c).
INSTALLATION
1. Connect the intermediate driveshaft to the
right drive shaft and tighten the band.
