Revotron 1.2T
137

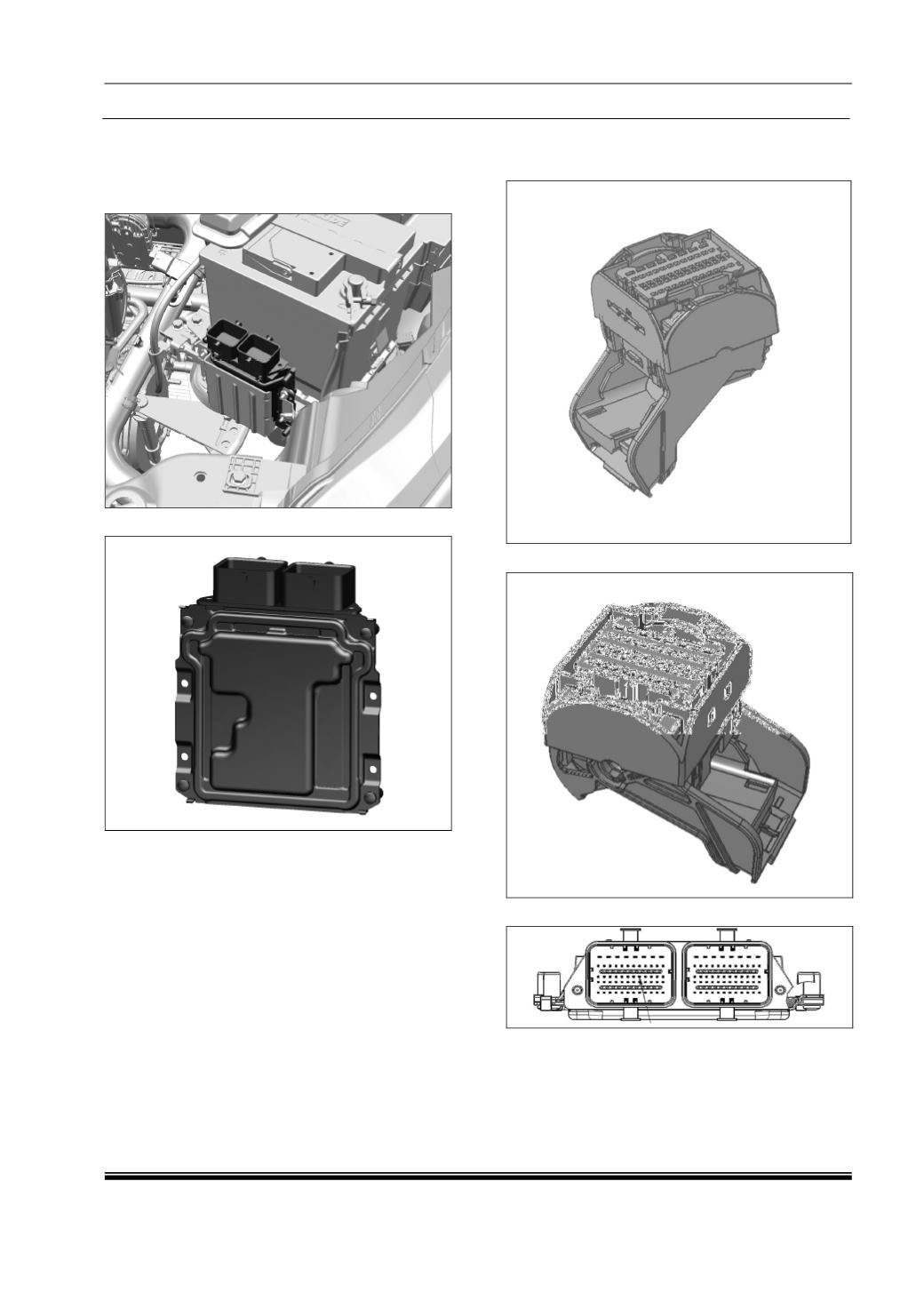

C. Electronic Control Unit (ECU) :
ECU Location :
Electronic Control Unit (ECU) is mounted
in engine compartment.
ECU description and operating conditions:
The ECU is designed for 6000 h of
operation, a lifetime of 15 years, and an
average of 2 cold starts per day.
Operating temperature: -40° to +85°C,
The maximum air temperature inside the ECU
is 105 °C.
Storage Temperature :
Please store the ECU around 10°C - 40°C
with relative room humidity: 25% - 75%
Connector Images :
•
Engine Connector :
•
Vehicle Connector :
Connector Pin out :
Module 1: 56 pins,
101....156 (Left side)
Module 2: 56 pins,
201....256 (Right Side)
•
8 pins 1.5 mm
2
•
48 pins 0.63 mm
2
•
8 pins 1.5 mm
2
•
48 pins 0.63 mm
2
