DETAIL I
CONNECT TO HRW +VE (LH)
HSG_1P
C196A
WITH XT VARIENT ONLY
EDGE CLIP
1-3MM THK
TAILGATE
DOOR PANEL
15
13
DETAIL J
TAILGATE DOOR WH
CONNECT TO HRW -VE (RH)
HSG_1P
C196B
WITH XT VARIENT ONLY
EDGE CLIP 1-3MM THK
TAILGATE DOOR
PANEL
13
15
VIEW FROM HRW SIDE
BODY CLIP
INTERCONNECTION TO
WASH HOSE
WITH XT VARIANT ONLY
EDGE CLIP
FRONT OF VEHICLE
17
DETAIL I
DETAIL J

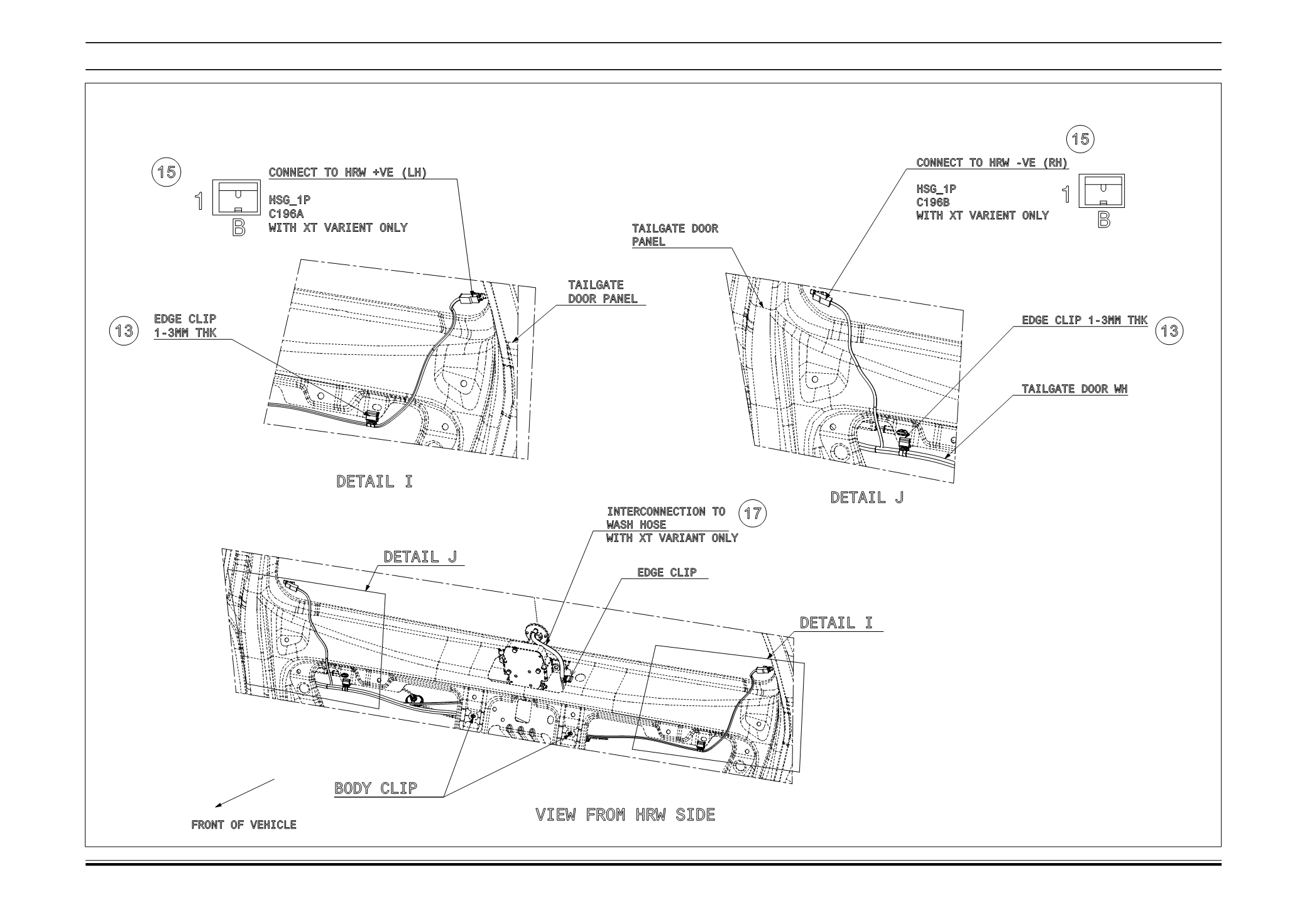

INFO FITMENT DRAWING FOR TAIL GATE
Electrical
BOLT / ZEST
361
