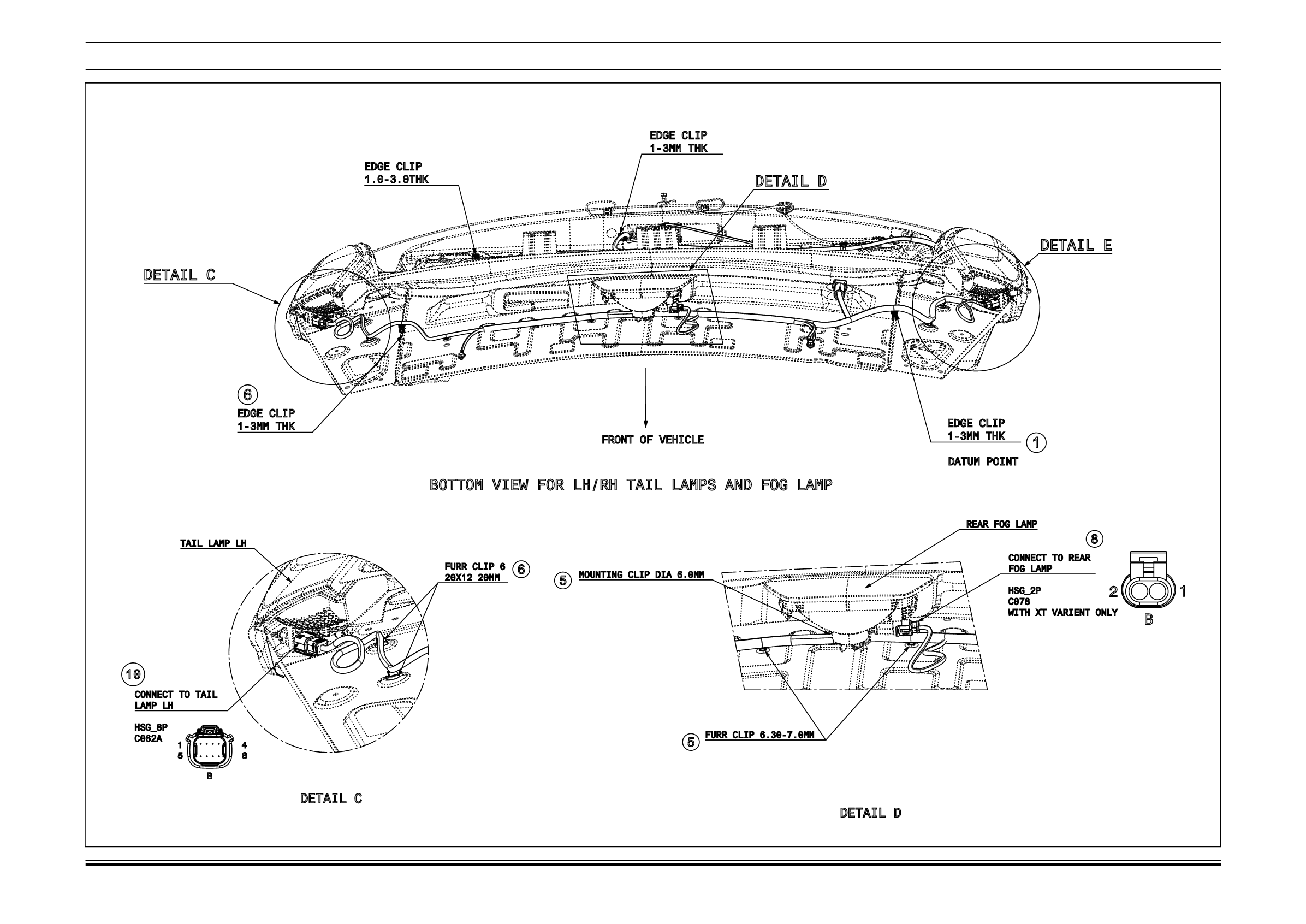

BOTTOM VIEW FOR LH/RH TAIL LAMPS AND FOG LAMP
EDGE CLIP
1-3MM THK
DATUM POINT
EDGE CLIP
1.0-3.0THK
EDGE CLIP
1-3MM THK
FRONT OF VEHICLE
1
EDGE CLIP
1-3MM THK
6
DETAIL C
DETAIL D
DETAIL E
DETAIL C
FURR CLIP 6
20X12 20MM
CONNECT TO TAIL
LAMP LH
HSG_8P
C062A
TAIL LAMP LH
6
10
DETAIL D
REAR FOG LAMP
FURR CLIP 6.30-7.0MM
MOUNTING CLIP DIA 6.0MM
CONNECT TO REAR
FOG LAMP
HSG_2P
C078
WITH XT VARIENT ONLY
5
5
8
INFO FITMENT DRAWING FOR TAIL GATE
Electrical
BOLT / ZEST
