FURR CLIP 6 20X12 20MM
TAILGATE GROMMET
GROMMET SLOT 45X27
EPDM BLACK
GROMMET BEFORE
INLINE CONN
TO FLOOR RH WH
FURR CLIP 6
20X12 20MM
TAILGATE DOOR
WINDSHIELD
FRONT OF VEHICLE
TAPE WITH DIFFERENT COLORS
AS PER WH DRG WILL BE USED
AT CLIP LOCATIONS ON WH
AND THESE CLIPS WILL BE
FITTED ON THE LINE
9
9
13
DETAIL A
DETAIL B
DETAIL K
BACK VIEW OF TAILGATE WH

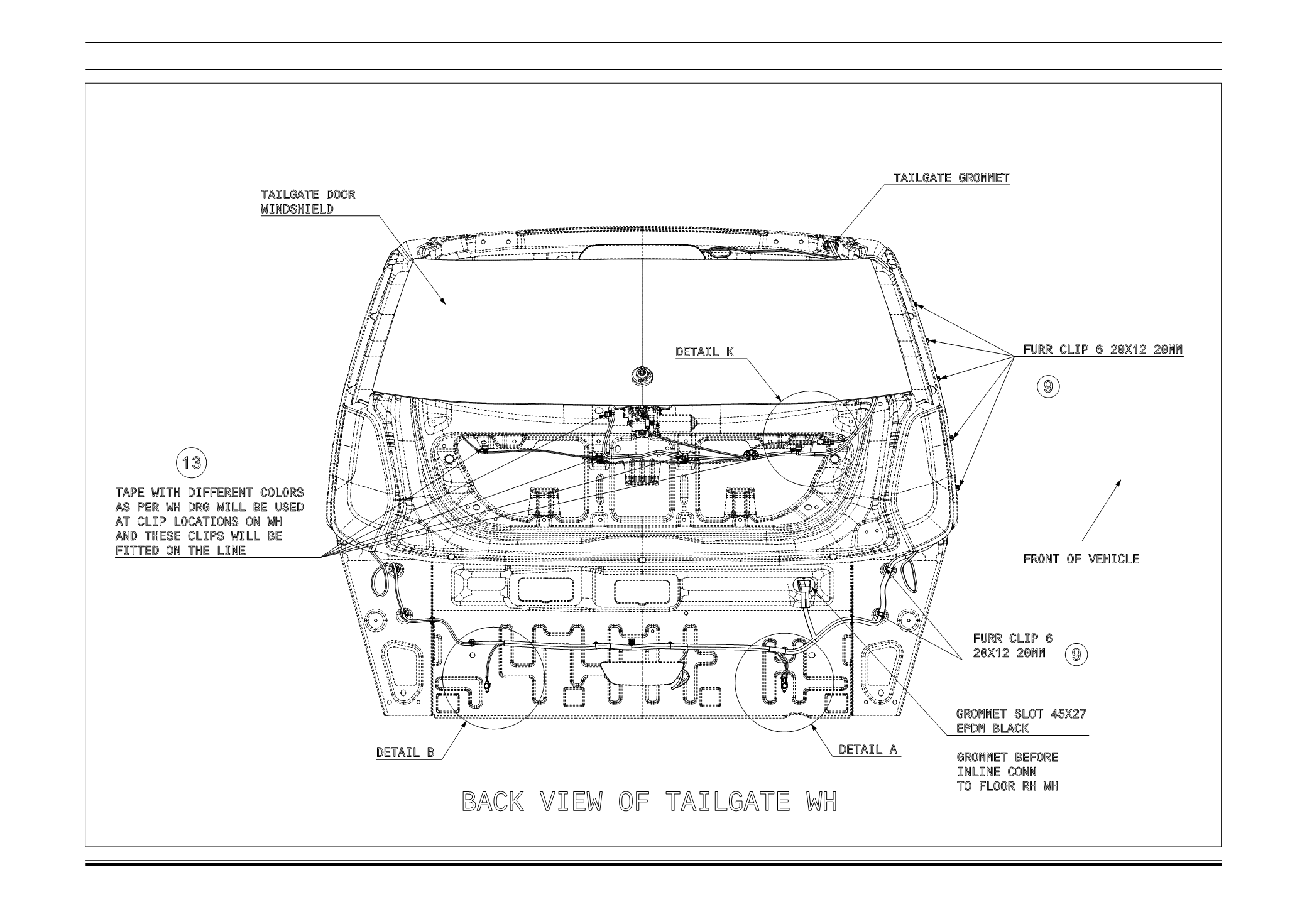

INFO FITMENT DRAWING FOR TAIL GATE
Electrical
BOLT / ZEST
355
