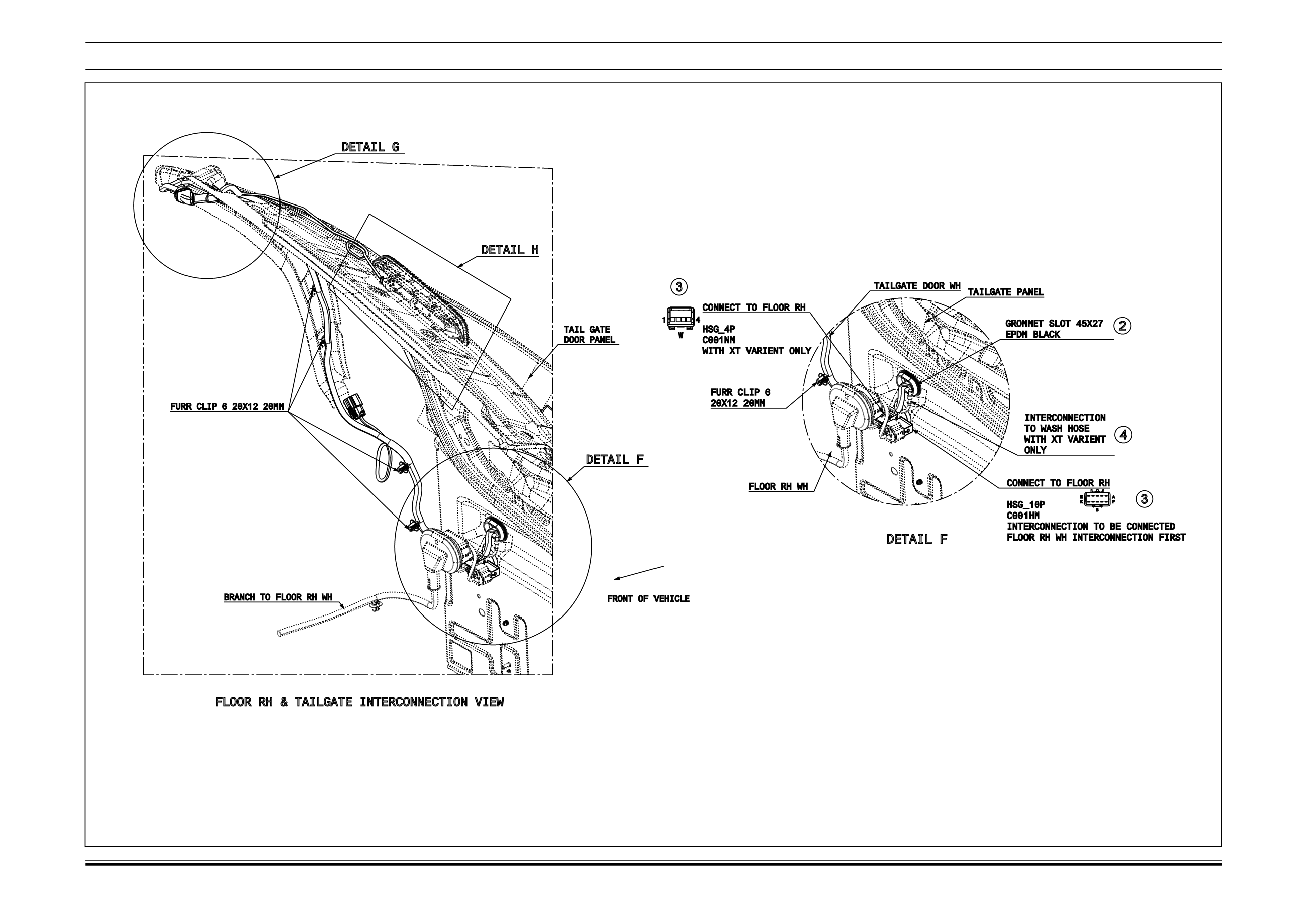

FLOOR RH & TAILGATE INTERCONNECTION VIEW
FURR CLIP 6 20X12 20MM
TAIL GATE
DOOR PANEL
BRANCH TO FLOOR RH WH
FRONT OF VEHICLE
DETAIL F
DETAIL G
DETAIL H
DETAIL F
CONNECT TO FLOOR RH
HSG_10P
C001HM
INTERCONNECTION TO BE CONNECTED
FLOOR RH WH INTERCONNECTION FIRST
CONNECT TO FLOOR RH
HSG_4P
C001NM
WITH XT VARIENT ONLY
FLOOR RH WH
GROMMET SLOT 45X27
EPDM BLACK
INTERCONNECTION
TO WASH HOSE
WITH XT VARIENT
ONLY
TAILGATE PANEL
TAILGATE DOOR WH
FURR CLIP 6
20X12 20MM
2
3
3
4
INFO FITMENT DRAWING FOR TAIL GATE
