ELECTRICAL
138

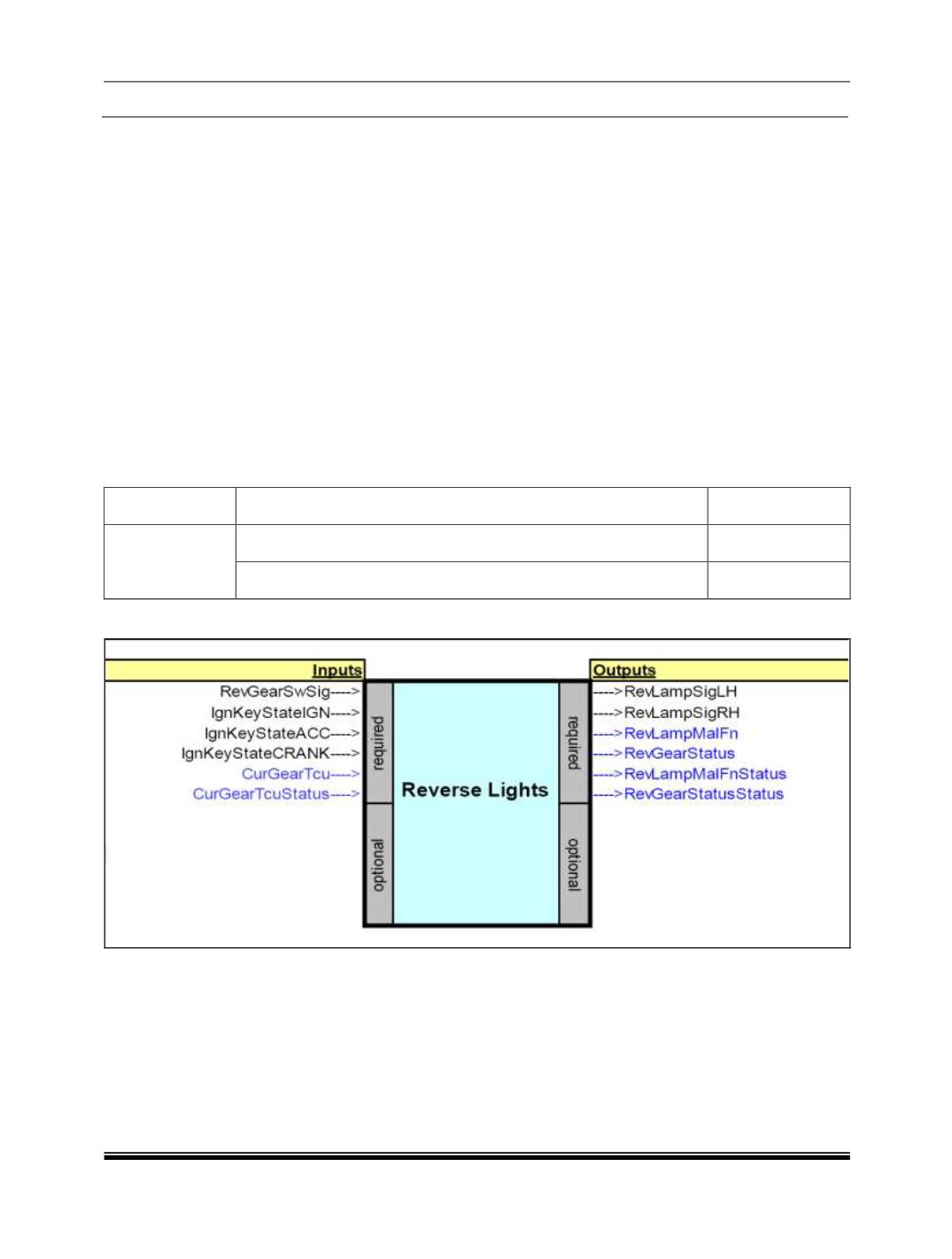

1.3 REVERSE LAMPS
1.3.1 Description
The reversing lights are used to illuminate the rear end of the vehicle when in reverse gear.
1.3.2 Conditional Requirements
Activation –
• IGN is ON &
• Reverse Gear is activated
Deactivation –
• IGN is OFF or
• Reverse Gear is deactivated
On Fault –
BCM logs respective DTC.
1.3.3 Operating Voltage Range
DESCRIPTION
REQUIREMENT
VOLTAGE
Reverse Lamps Normal operating voltage
12V
Min & Max operating voltage range
9V-16V
1.3.4 Inputs & Outputs
