1.11 DAY TIME RUNNING LAMPS (DRL).
1.11.1 Description
This feature is used to increase the visibility of the vehicle to other drivers during daytime. The daytime
running lights are positioned on the front of the vehicle. For safety benefit, daytime running light is
compulsory in many countries.
1.11.2 Conditional Requirements
Activation –
• IGN is ON or Engine is running
• Head Lamps & Position Lamps are OFF
Deactivation –
• IGN is OFF & Engine is not running
• Position Lamps are ON or Head lamps are ON
Tell-tale Indication –
Telltale on IC as long as the DRL is ON
On Fault –
Telltale is turned off when all lamps are failed and Respective DTC logged.
1.11.3 Operating Voltage Range
DESCRIPTION
REQUIREMENT
VOLTAGE
Day Time
Running Lamps
Normal operating voltage
12V
Min & Max operating voltage range
9V-16V

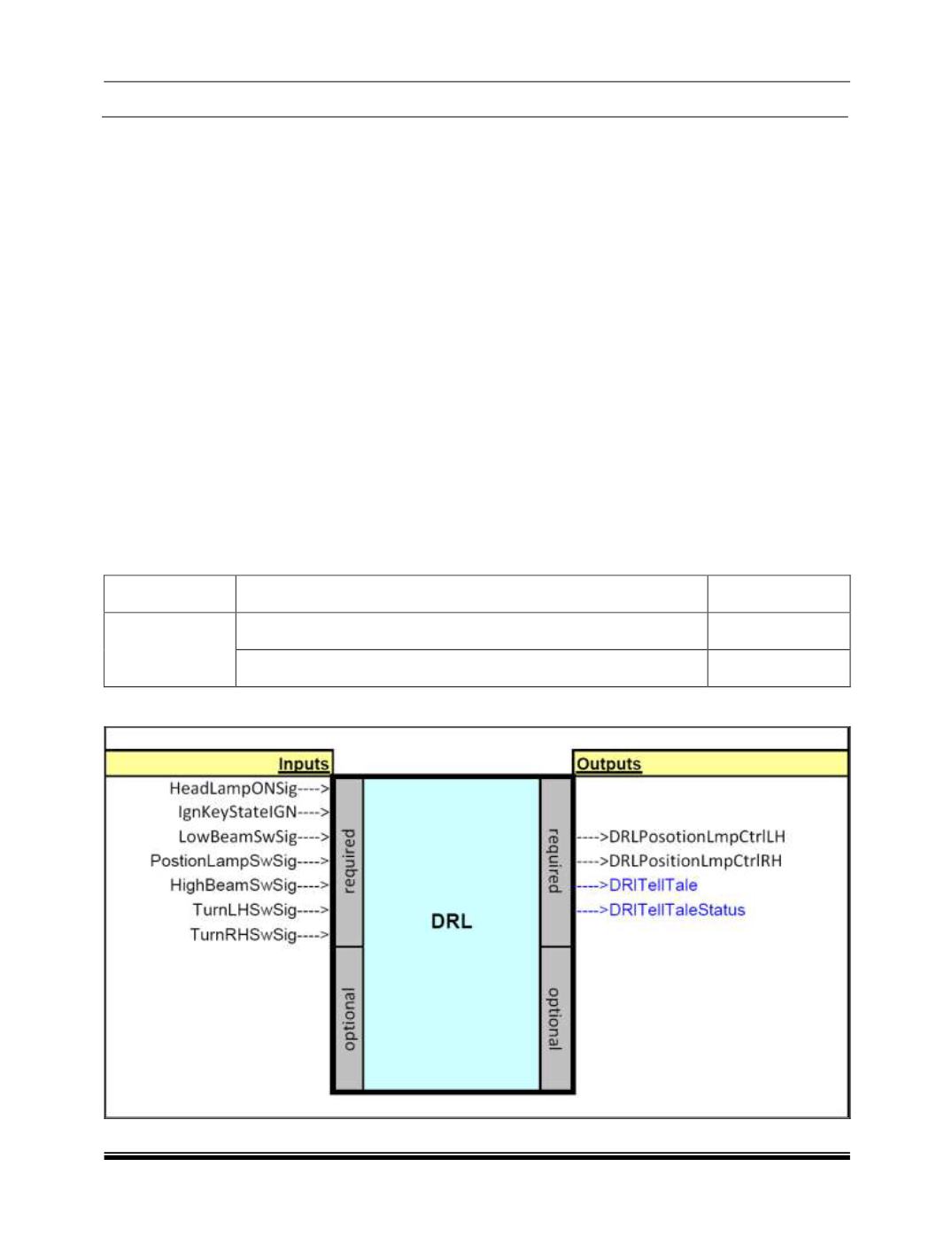

1.11.4 Inputs & Outputs
