1.8 POSITION LAMPS
1.8.1 Description
The Position Lights are used to indicate the vehicle presence. These lamps are presents on the corner of the
car (front / rear and left / right).
1.8.2 Conditional Requirements
Activation –
• Position Lamp Switch or Head Lamp ON switch is activated
Deactivation –
• Position Lamp Switch & Head Lamp ON switch is deactivated
Tell-tale Indication –
• Illuminates IC and dashboard switches
On Fault –
Dash board illumination is continuously ON and Respective DTC logged.
1.8.3 Operating Voltage Range
DESCRIPTION
REQUIREMENT
VOLTAGE
Position Lamps
Normal operating voltage
12V
Min & Max operating voltage range
9V-16V

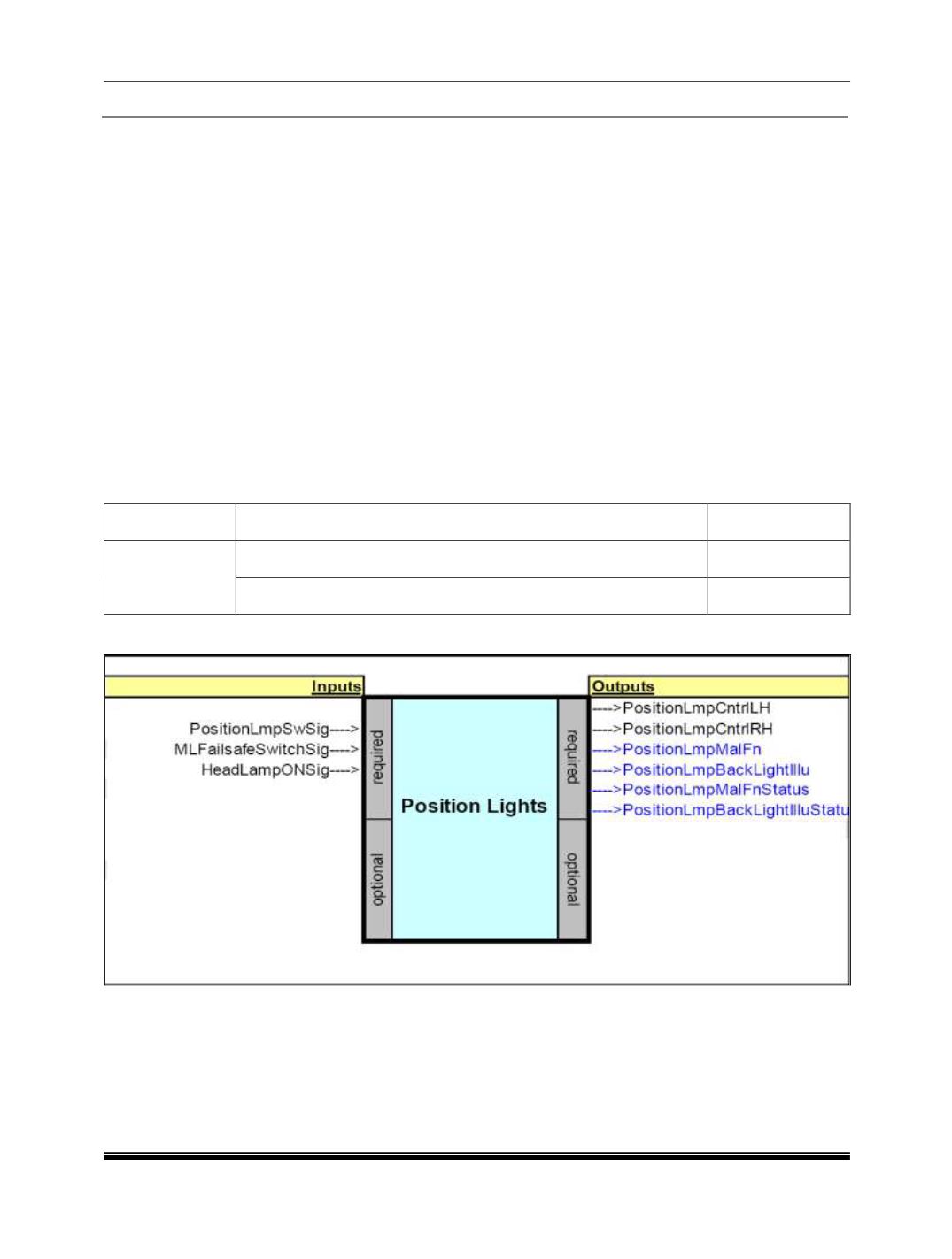

1.8.4 Inputs & Outputs
