BODY
61

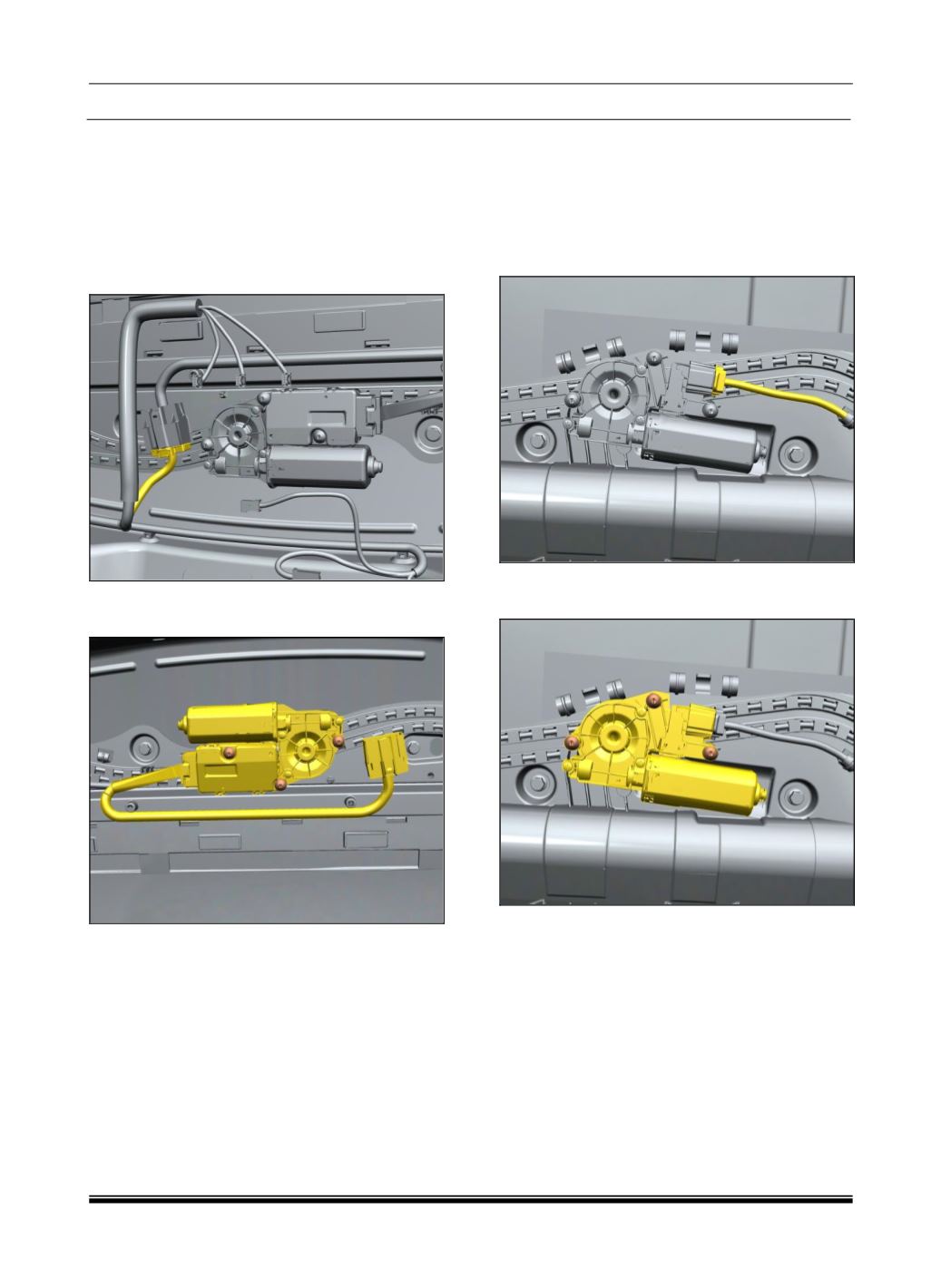

1.4.51
MECHANISM
ELECTRIC
DRIVE
ASSEMBLY
REMOVAL
1. Remove the roof headliner. (Refer R+R of
roof headliner).
2. Unplug wiring harness connected to
Mechanism Electric drive
3. Remove all three (3) screws from the
Mechanism Electric drive.
4. Remove the Mechanism electric drive from
the sunroof.
FITMENT
For fitment follow reverse procedure of removal.
1.4.52 ROLLO ELECTRIC DRIVE ASSEMBLY
REMOVAL
1. Remove the roof headliner. (Refer R+R of
roof headliner).
2. Unplug wiring harness connected to Rollo
Electric drive.
3. Remove all three (3) screws from the Rollo
Electric drive.
4. Remove the Rollo electric drive from the
sunroof
FITMENT
For fitment follow reverse procedure of removal.
