636 / 745
BODY
63

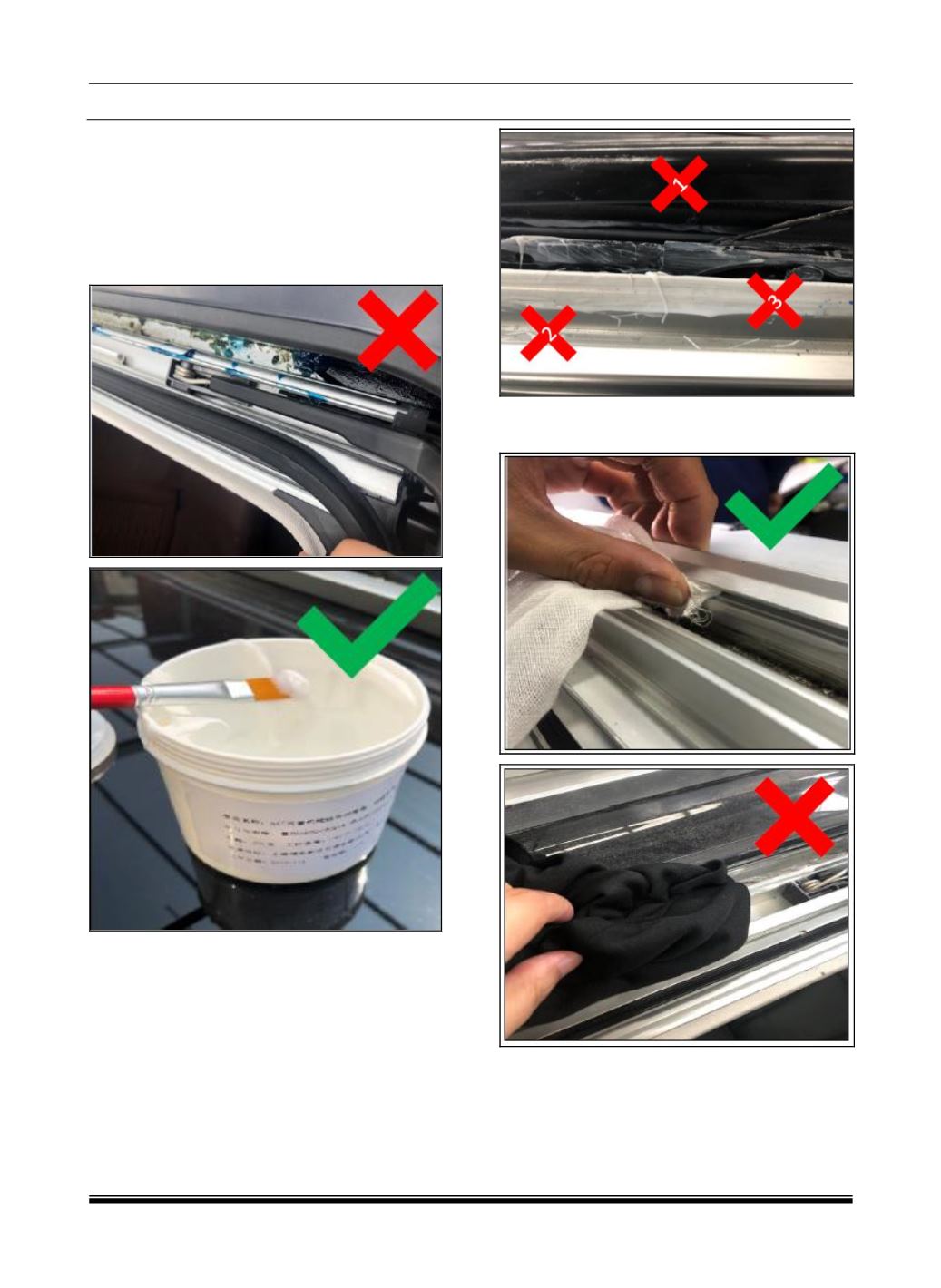

Flushness with Body Roof and step difference
between Moving Glass Panel & Fixed Glass
Panel.
NOTE
BELOW ARE VERY IMPORTANT FOR QUALITY
OF CLEANING AND MAINTAINING, TO BE
FOLLOWED STRICTLY:
USE SPECIAL GREASE 2C194 (PART NO.
006.091020) ONLY
1. Do not apply to the outer surface of the rail
where mechanism does not operate.
2. Apply inside the grooves, not the outer surface.
3. Do not apply too much grease, a thin layer is
enough.
4. When cleaning, the cloth must be inserted into
the rail grooves, not only surface.
5. When apply grease, make sure to use small
brush, as big brush cannot reach inside the
grooves.
