BODY
56
1.4.46 SUNROOF
DO’s AND DON’TS
Regularly check the GUIDE RAILS and
DRAIN HOLES for foreign objects.
Do not block the sunroof with your hands or
objects while operating to avoid accidents.
Do not touch the Rollo fabric when it is
operating, so as not to damage the Rollo.
Do not open the sunroof when the weather is
bad (dusty, windy and heavy rain), to avoid
water or dust or debris accumulation.

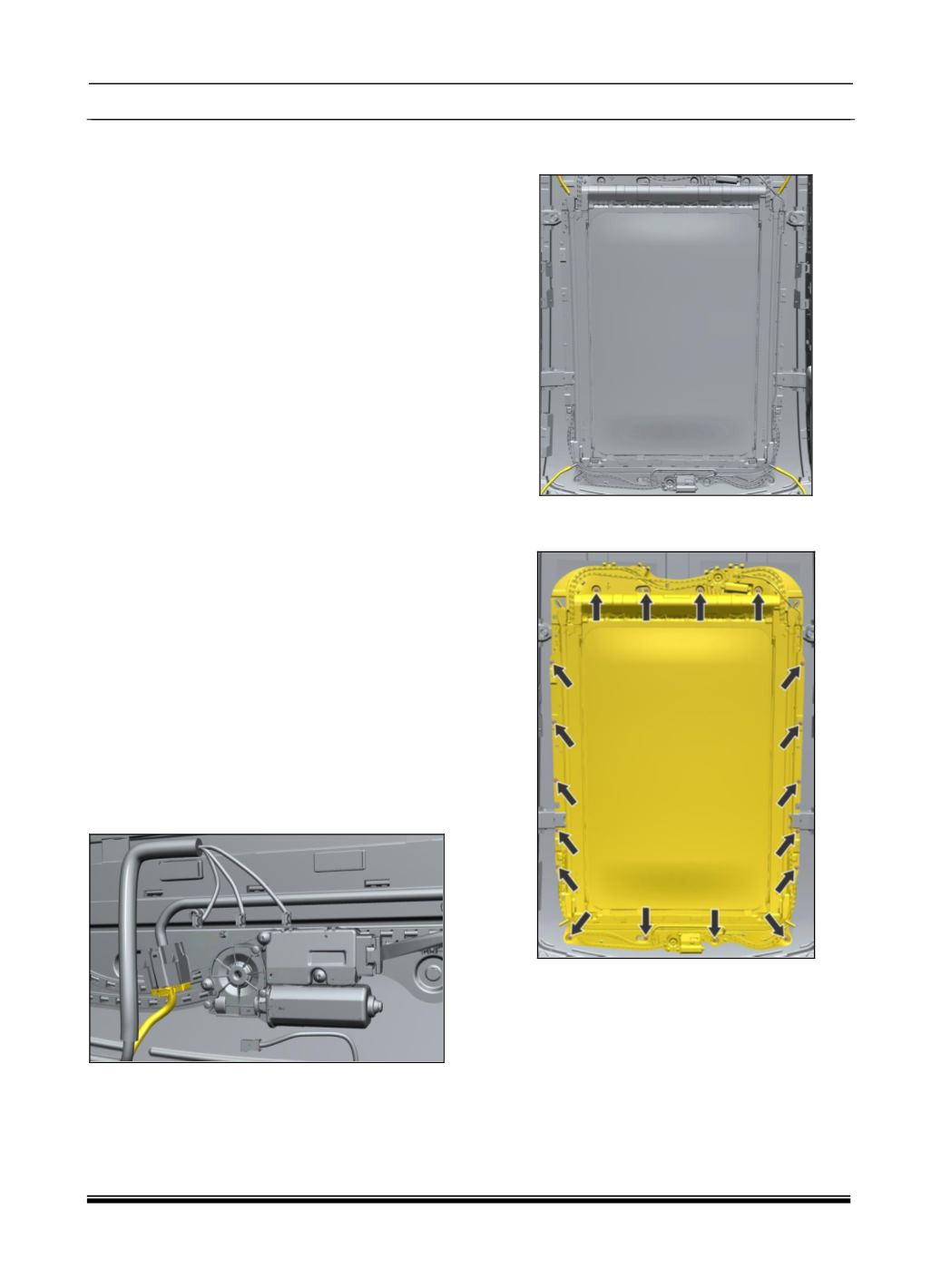

REMOVAL
1. Disconnect the battery’s negative terminal.
2. Place protective covers on the following:
Carpet, Steering Wheel, Instrumental Panel,
Seats, Hood, Doors, Deck Lid, Exterior Glass,
and Roof.
3. Remove A pillar trim. (Refer R+R of A pillar
trim)
4. Remove B pillar trim. (Refer R+R of B pillar
trim)
5. Remove C pillar trim. (Refer R+R of C pillar
trim)
6. Remove the two sunvisors.( Refer R+R of
sunvisor)
7. Remove the roof lamp. (Refer R+R of roof
lamp in Electrical section.)
8. Remove the three grab handle. (Refer R+R of
grab handle)
9. Remove the roof headliner. (Refer R+R of
roof headliner)
10. Unplug all the wiring harness connected to
sunroof, and sunroof switches.
11. Unplug all the drain hoses from 4 corners of
the sunroof.
12. Remove all 18Nos. M6 Screws with washer
and safely remove the sunroof.
NOTE
Due to the weight of the sunroof assembly it is
recommended that you use Jacks to support the
sunroof assembly to avoid twisting of guide rails
during handling.
FITMENT
For fitment follow reverse procedure of removal.
Sunroof to be aligned to BIW with help of
Sunroof alignment Tool 541258905101 &
