FATC
47

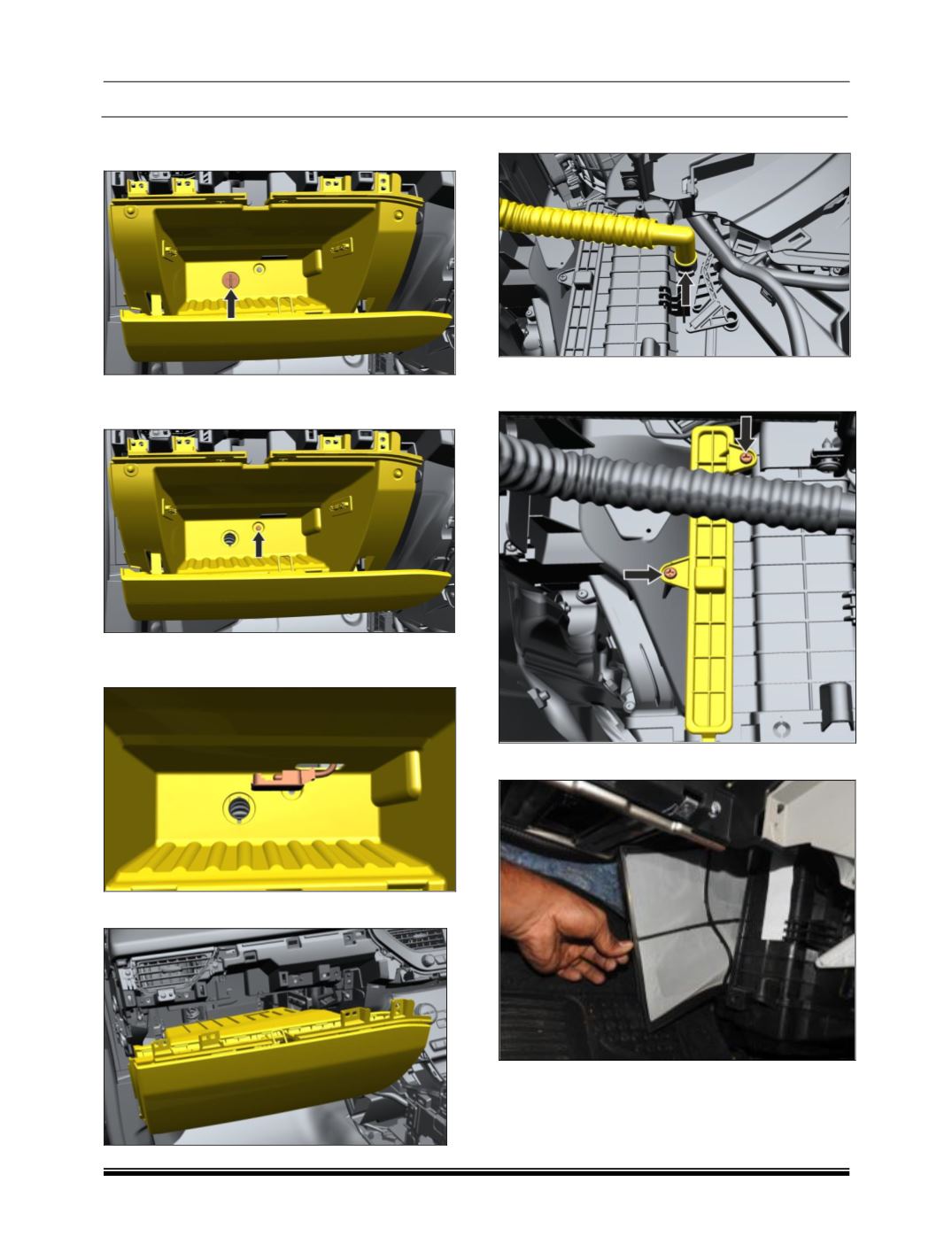

7. Open the glove box and pull out AC adaptor top
Utility Bin.
8. Remove one mounting screws of glove box,
which is inside of glove box.
9. Disconnect the electrical connection of glove box
lamp.
10.Take out the glove box assembly.
11.Disconnect the Chiller duct from HVAC unit.
12.Remove two mounting screw of the wire mesh
cover & remove cover.
13.Twist & Take out the wire mesh.
14.Clean the wire mesh thoroughly and dry it before
refitting.
FITMENT
Follow reverse procedure of removal
