FATC
45

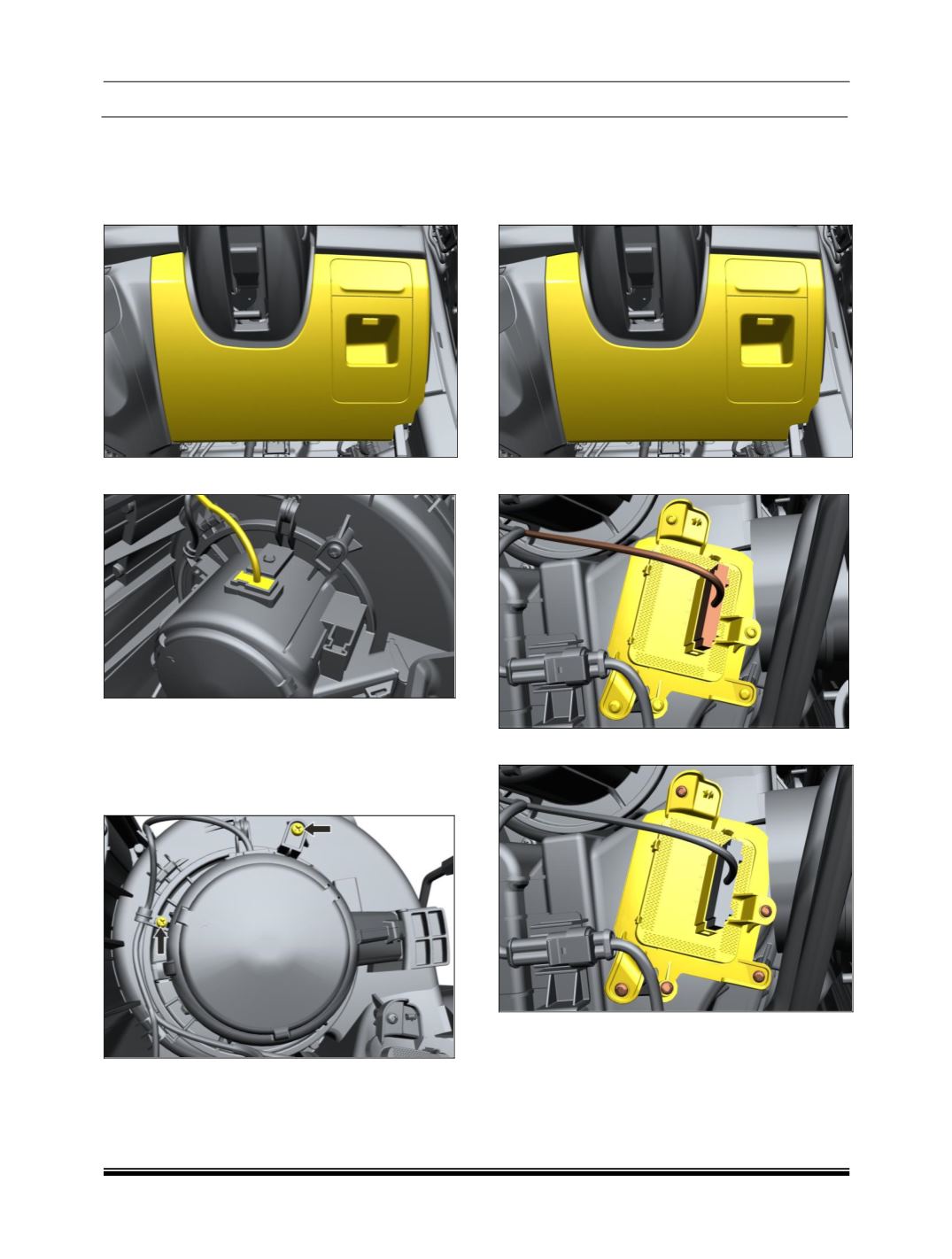

D. BLOWER
REMOVAL
1. Remove the driver lower panel located below
dashboard top panel.
2. Disconnect electrical connections.
3. Remove dashboard with cross car beam assem-
bly. (For procedure, refer dashboard removal with
cross car beam in body section)
4. Remove mounting screws and separate the
blower from the HVAC assembly.
FITMENT
Follow the reverse procedure of removal.
E. LPM
REMOVAL
1. Remove the driver lower panel located below
dashboard top panel.
2. Disconnect electrical connection.
3. Loosen & remove screw of LPM.
4. Take out LPM unit.
FITMENT
Follow reverse procedure of removal.
