FATC
50

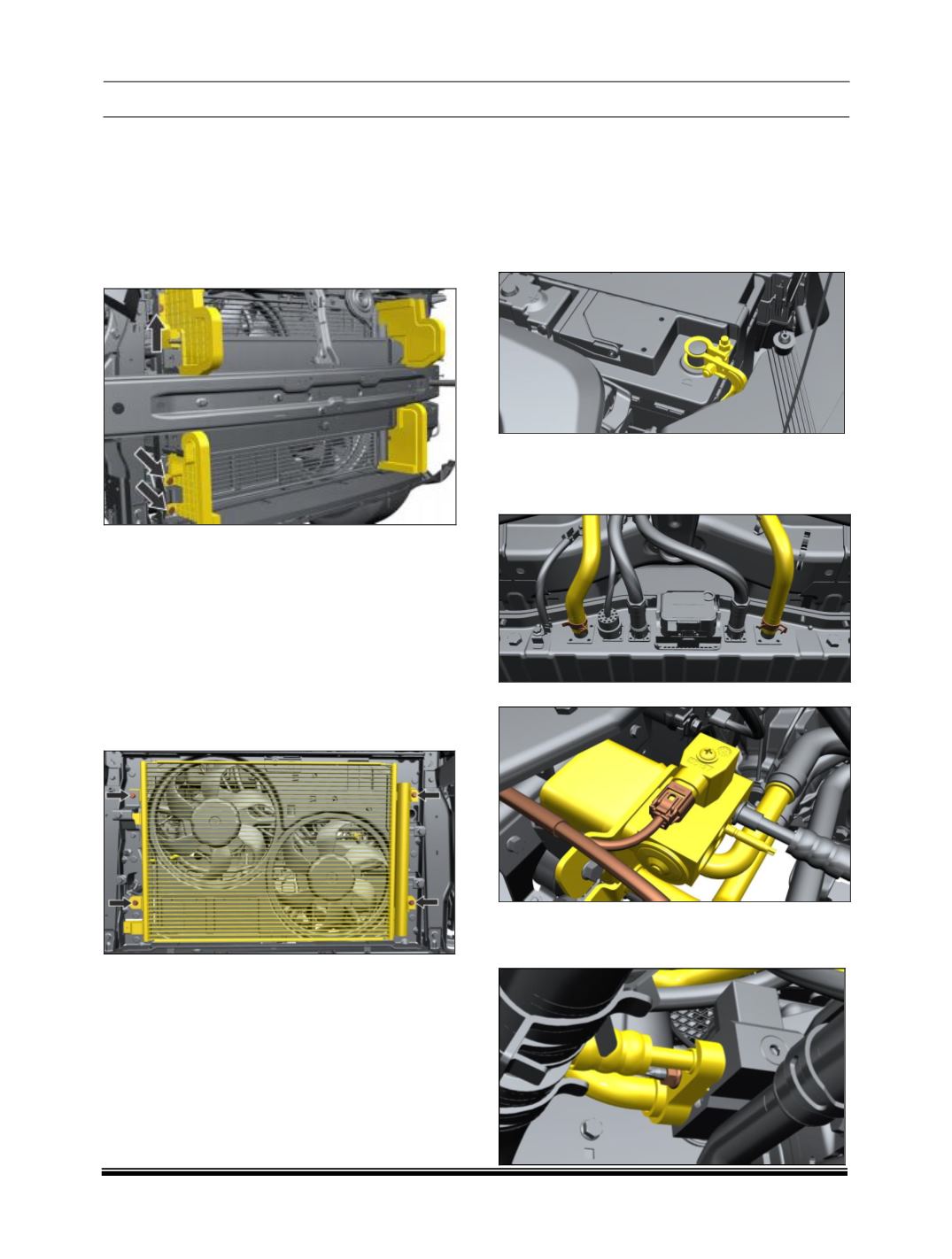

K. CONDENSER SEALING DUCT
REMOVAL
1. Remove the bumper (Refer Body section).
2. Open the bonnet.
3. Remove horns from both ends.
4. Loosen and remove mounting screws.
FITMENT
Follow the reverse procedure of removal.
L. CONDENSER
REMOVAL
1. Remove the radiator (Refer Radiator removal
process).
2. Loosen and remove the 4 condenser mounting
bolts on the radiator and separate out the con-
denser.
CAUTION
Never leave the condenser lines open immediately
cover them with caps, otherwise the desiccant which
is in-built in the condenser may absorb the moisture
from surrounding air and get contaminated.
FITMENT
Follow the reverse procedure of removal.
M. CHILLER UNIT
Type
– Plate type chiller
REMOVAL
1. Open the bonnet of the vehicle.
2. Remove Aux Battery negative terminal and Put
masking tape on Aux Battery negative terminal &
cable.
3. Discharge the refrigerant using standard recov-
ering equipment.
(Refer maintenance section.)
4. Drain coolant from BCS system by disconnecting
coolant hose from HV battery.
5. Remove Electrical connection on chiller unit.
6. Remove the mounting nut and disconnect the
Suction line and the discharge pipes from chiller
TXV and take out AC pipes.
