FATC
43

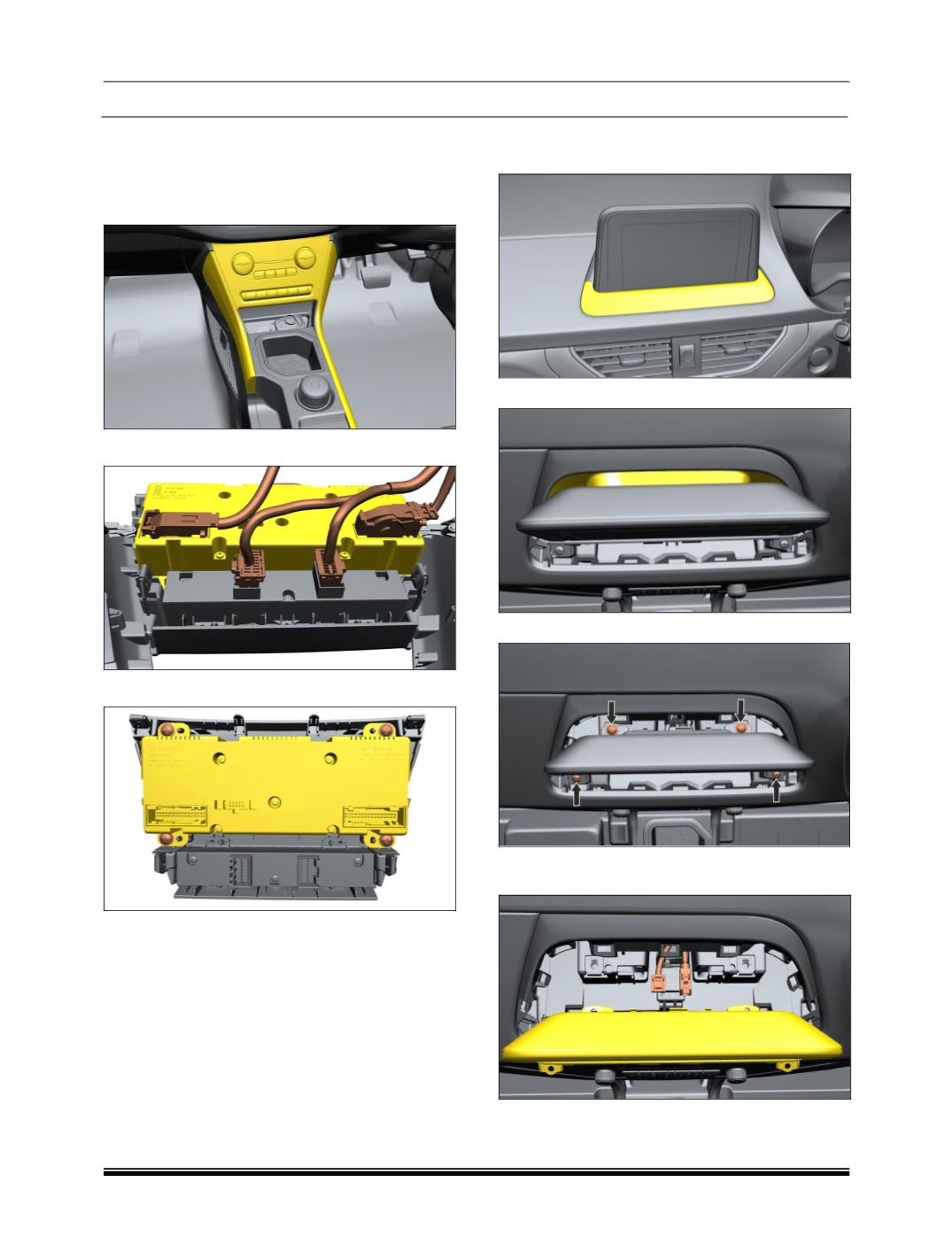

15. ON VEHICLE REPAIRS
A. CONTROL PANEL ASSEMBLY REMOVAL
1. Remove the top console panel along with control
panel.
2. Disconnect the electrical connection of panel.
3. Remove four mounting screws of control panel.
4. Take out the control panel.
REFITMENT
Follow the reverse procedure of removal.
B. INFOTAINMENT DISPLAY REMOVAL
1. Carefully pry out Lower cover assembly.
2. Carefully pry out Display mounting cap.
3. Remove all the 4 mounting screw on Display.
4. Disconnect all the electrical connections and take
out the display.
FITMENT
Follow the reverse procedure of removal.
