INSTALLATION

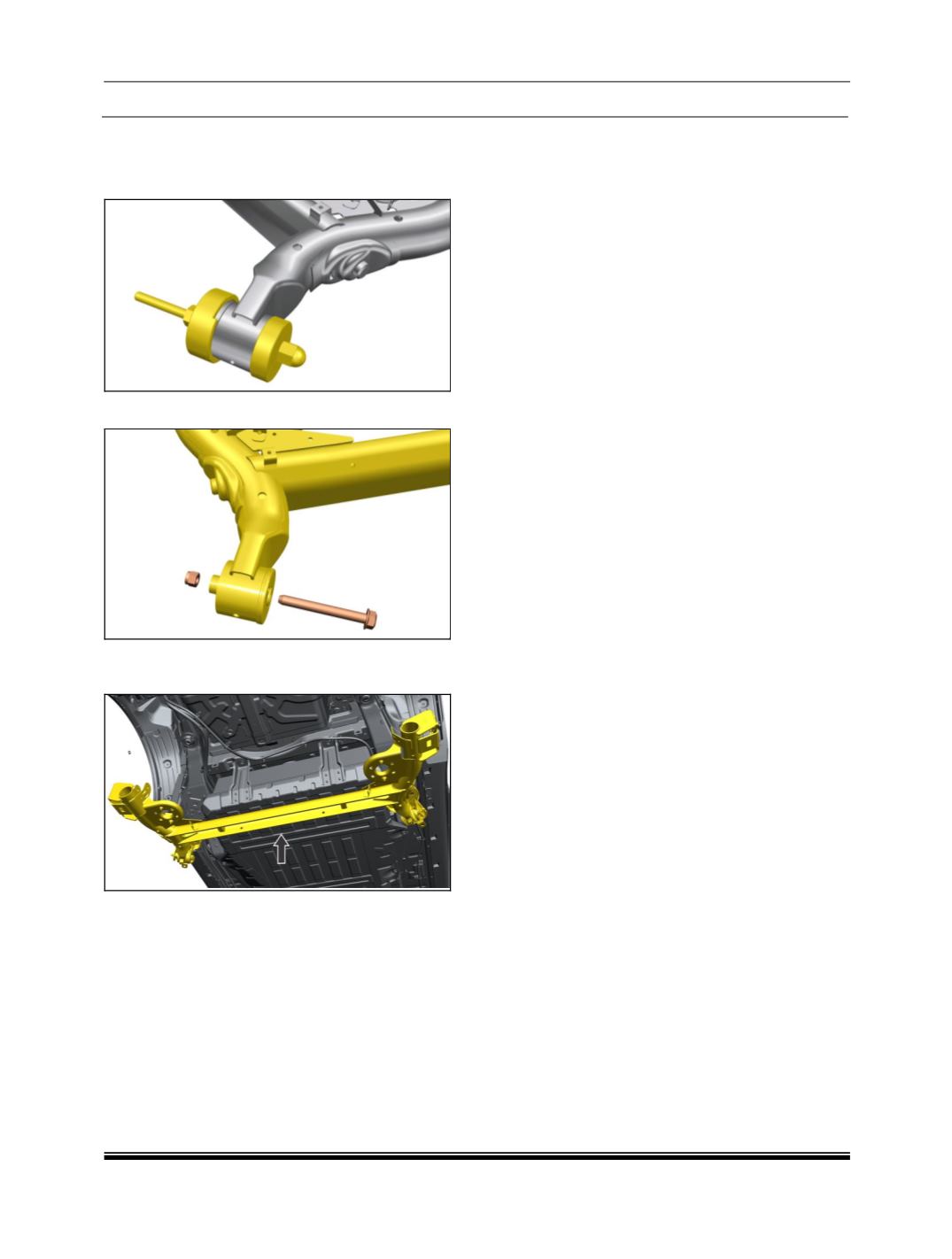

1. Install twist beam front pivot bush using special
tools as shown in below arrangement.
2. Tighten the cross bolt of the twist beam.
3. Lift and properly position the twist beam along
with bracket.
4. Tighten the four bolts on bracket from both
sides.
5. Fix the shock absorber and coil spring to the
torsion beam. (Refer the refitment of shock
absorber and coil springs)
6. Fix the back plate assembly along with brake
shoes and stub axle to the torsion beam.
7. Fix the brake lines, parking brake cable and
rear sensor cable mountings on the torsion
beam.
8. Fit the brake drum.
9. Top up the brake fluid and carry out the
bleeding of brakes. (Refer brakes).
10.Fix the Wheels.
