SUSPENSION
44

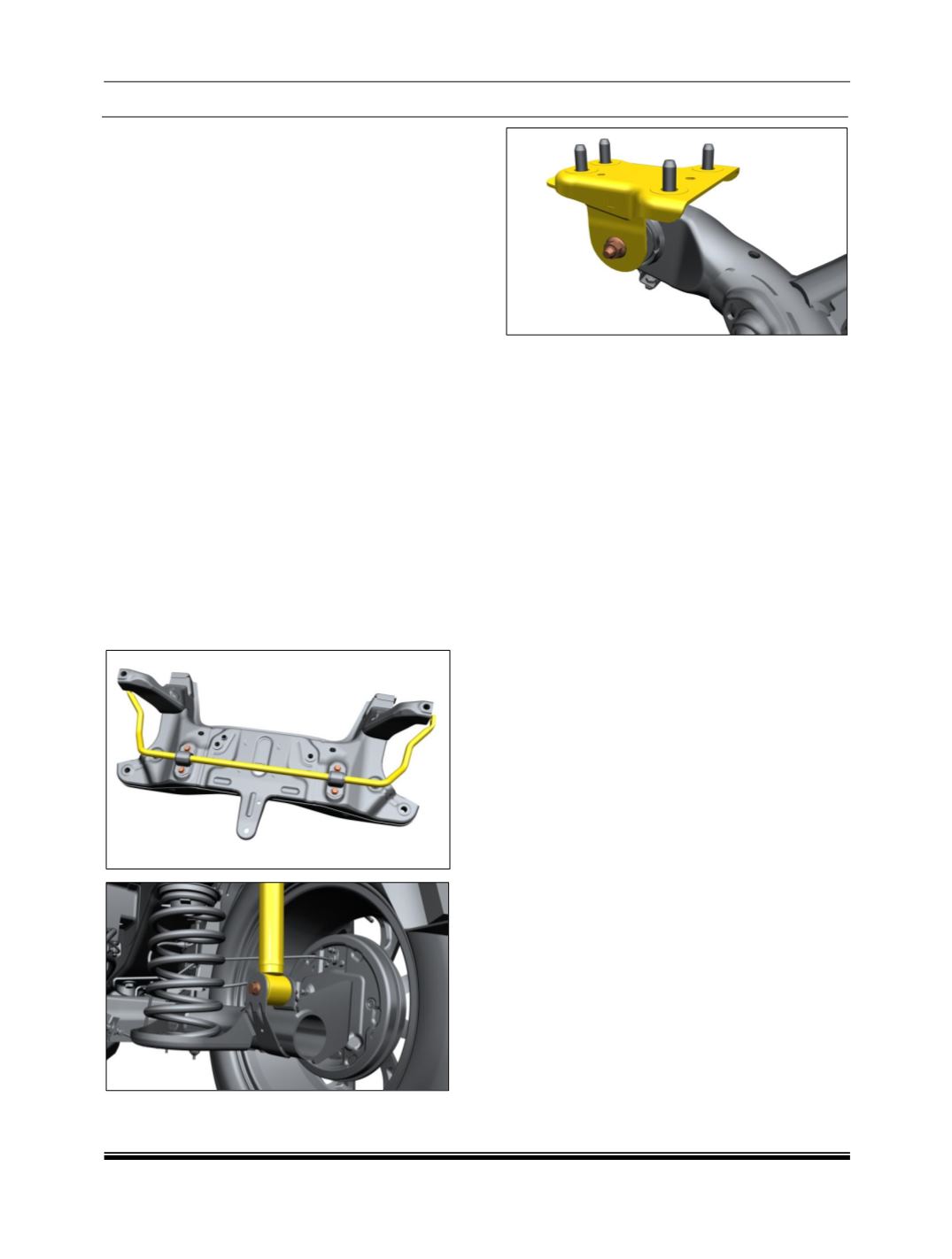

10. SUSPENSION PRE-LOADING CONDITION
1. Install twist beam front pivot bush using
special tools as shown in below arrangement.
2. After working on any of the following
fasteners, do not apply complete torque. Just
do the partial or hand tightening. Ensure that
no clamping torque applied.
a) LCA front bush fastener
b) RTB Pivot mounting fasteners
c) Rear Shock absorber bottom mounting
fastener.
3. Load the vehicle with two persons in front and
one in rear such that one person on driver
and co-driver seat each and one person on
rear seat in center of seat. The weight of the
person seating should be between 70Kg to
80Kg.
NOTE:-
Loosen the fasteners partially ensuring that no
clamping torque applied and bolt is not
disengaged from nut.
4. Rumble the vehicle suitably.
5. Tighten the bolt with the specified torque.
6. It is to be ensured that vehicle is kept loaded
as per point no. 3 while performing activity no.
4 to no. 6.
7. Unladen the vehicle.
NOTE:-
This procedure should be followed for any of
above mentioned fastener under consideration of
working.
