11.Lock the dust cover with striker cap.

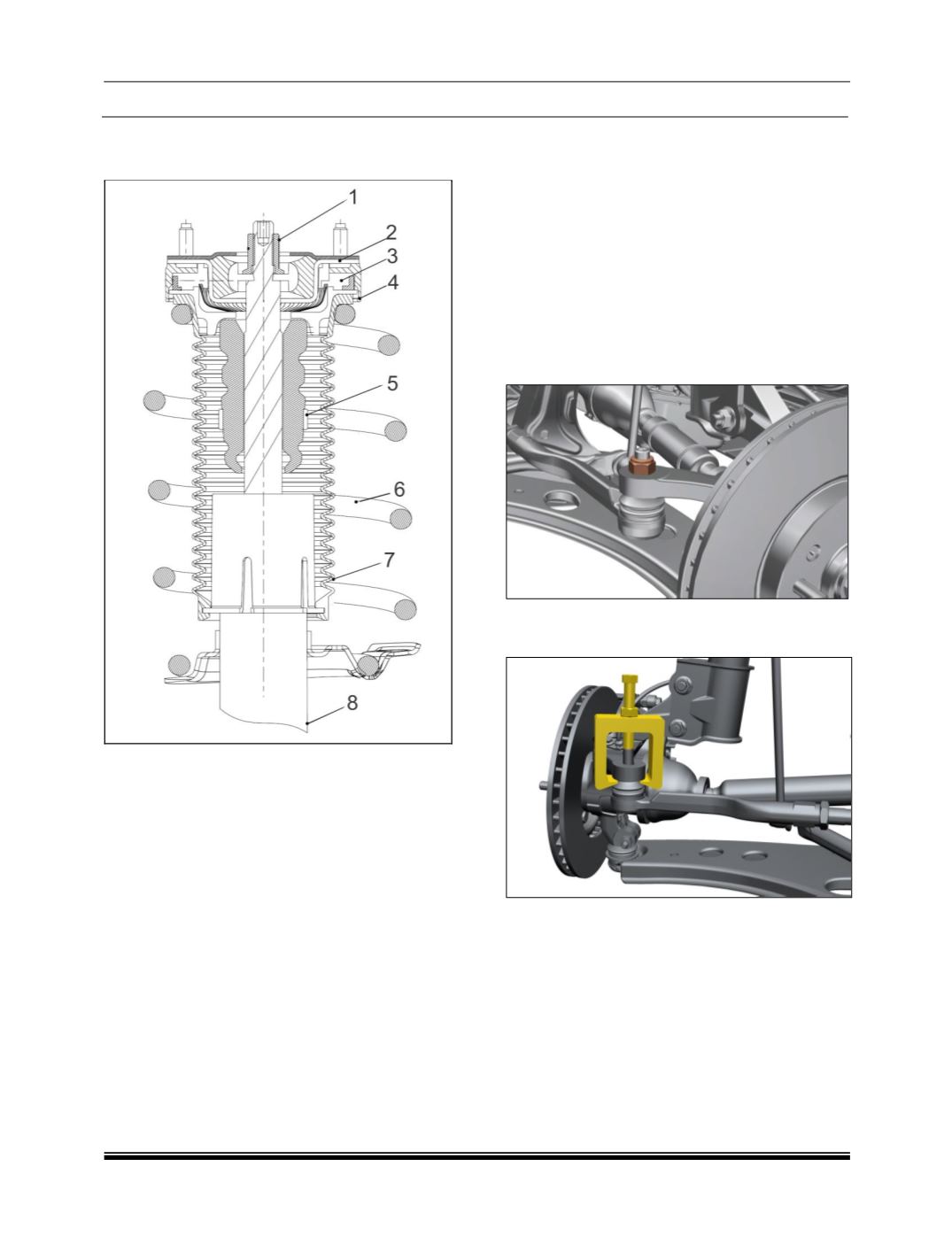

EXPLODED VIEW
1. Hex flange nyloc nut M12x1.25 top
2. Assembly top mount
3. Bearing dust cover
4. Assembly bearing complete
5. Compression Bumper
6. Spring front suspension
7. Damper dust cover
8. Assembly front damper
C. WHEEL HUB
REMOVAL
1. Place the vehicle in the two-post lift and apply
parking brake.
2. Remove wheel rim cover.
3. Loosen the wheel mounting bolts.
4. Lift the vehicle till the front wheels are off the
ground.
5. Unscrew the wheel mounting bolts and remove
the wheel.
6. Unscrew and remove tie rod ball joint nut.
7. Remove tie rod ball joint using puller part No.
2871 5890 4601.
8. Support the lower arm from bottom.
9. Hold hub assembly with holder part No. 2702
5890 3301.
