LV ELECTRICAL SYSTEM
63

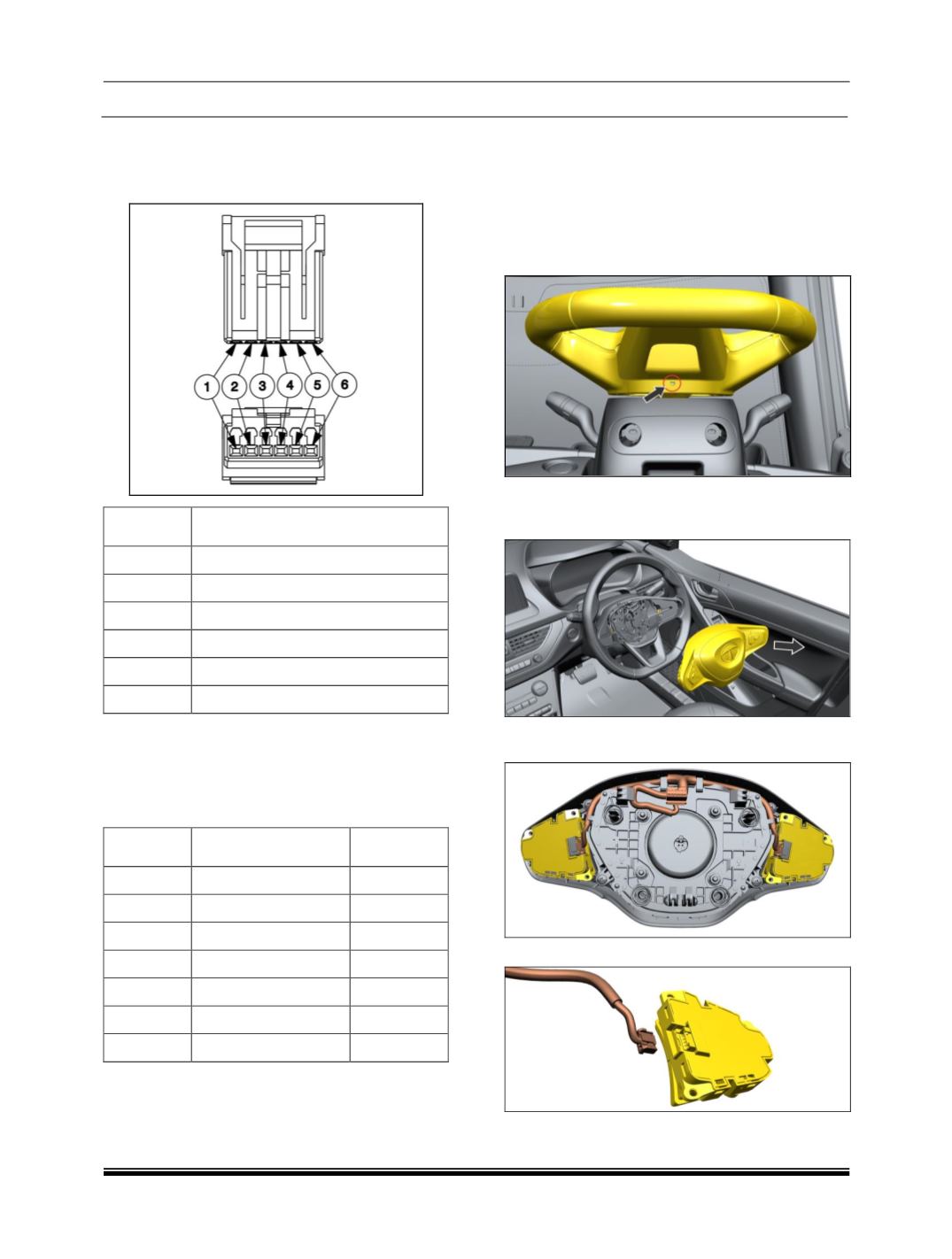

B. Switch main connector
NOTE:
Some features may not applicable for
NEXON EV mention in pin details).
PIN
DETAIL
1
ILL +
2
ILL -
3
CRUISE -
4
CRUISE +
5
INFOTAINMENT -
6
INFOTAINMENT +
FUNCTION
Steering wheel switches are used to control the
music system operations.
For details ref below table
SWITCH
FUNCTION
POSITION
SW1
Seek Down
LH
SW2
Source
LH
SW3
Seek up
LH
SW4
Phone Reject / Mute
LH
SW5
Volume Up
LH
SW6
Volume Down
LH
SW7
Phone Accept / PTT
RH
LOCATION
It is located on the steering wheel.
C. REMOVAL
1. Park the car with front wheel in straight ahead
position. Apply parking brake and place wheel
chokes at rear wheels.
2. Disconnect battery.
3. Insert screwdriver into hole and press to
unlock the DAB assembly.
4. Pull out the DAB assembly (In case of Airbag
version refer DAB removal procedure in SRS
section).
5. Separate Garnish switch Assembly and remove
electrical connections.
6. Take out the switches.
INSTALLATION
Follow the reverse procedure of Removal.
