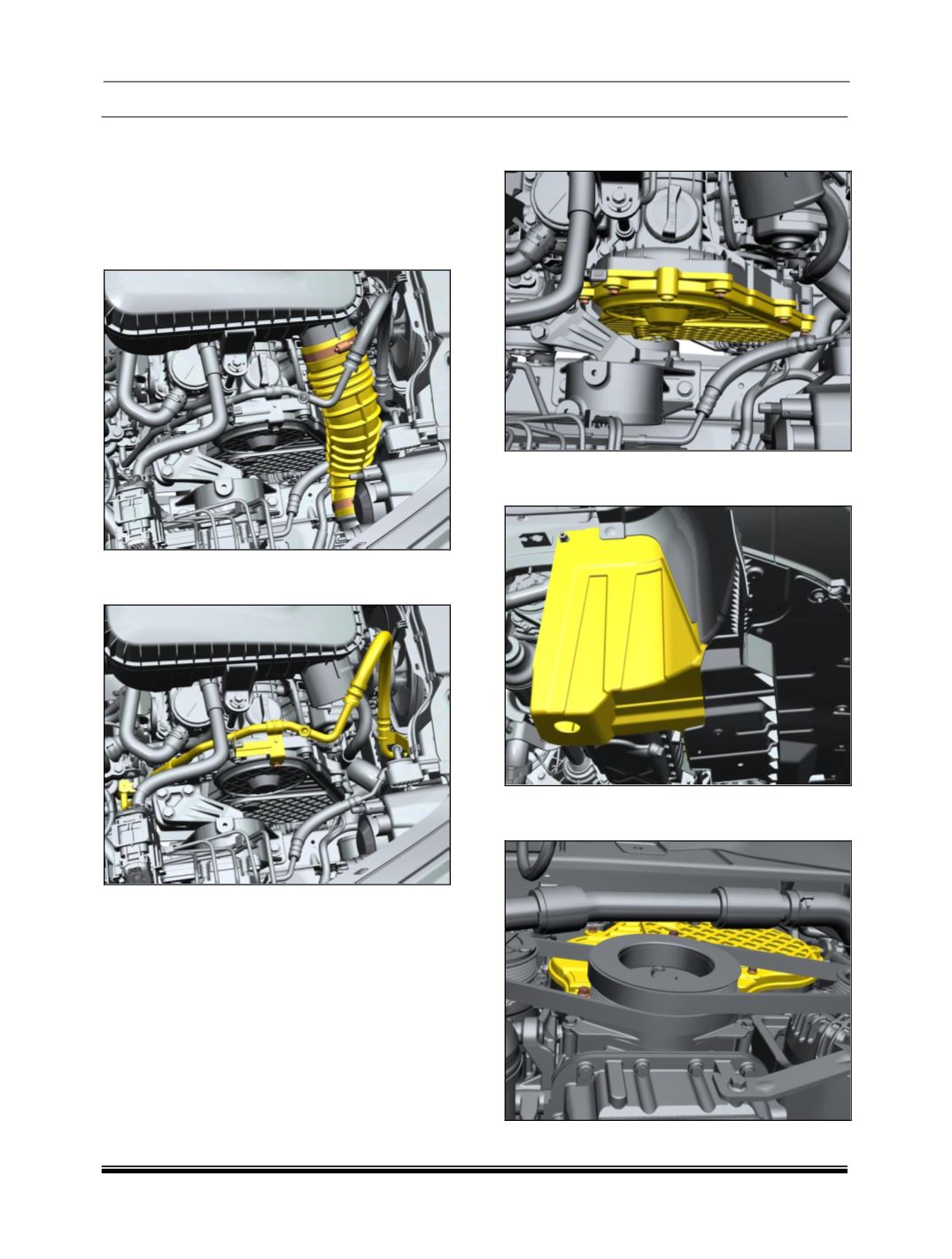

G. TIMING BELT REMOVAL AND REFITMENT
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Open the hood (bonnet).
3. Disconnect the rubber hose connecting the air
filter.
4. Remove mounting bolt and set the refrigerant
line aside.
5. Remove the top timing cover mounting bolts
accessible from the bonnet side.
6. Lift the vehicle and remove the RH side front
mud liner.
(For procedure refer body section).
7. Remove the top timing cover mounting bolts
accessible from below the vehicle.
