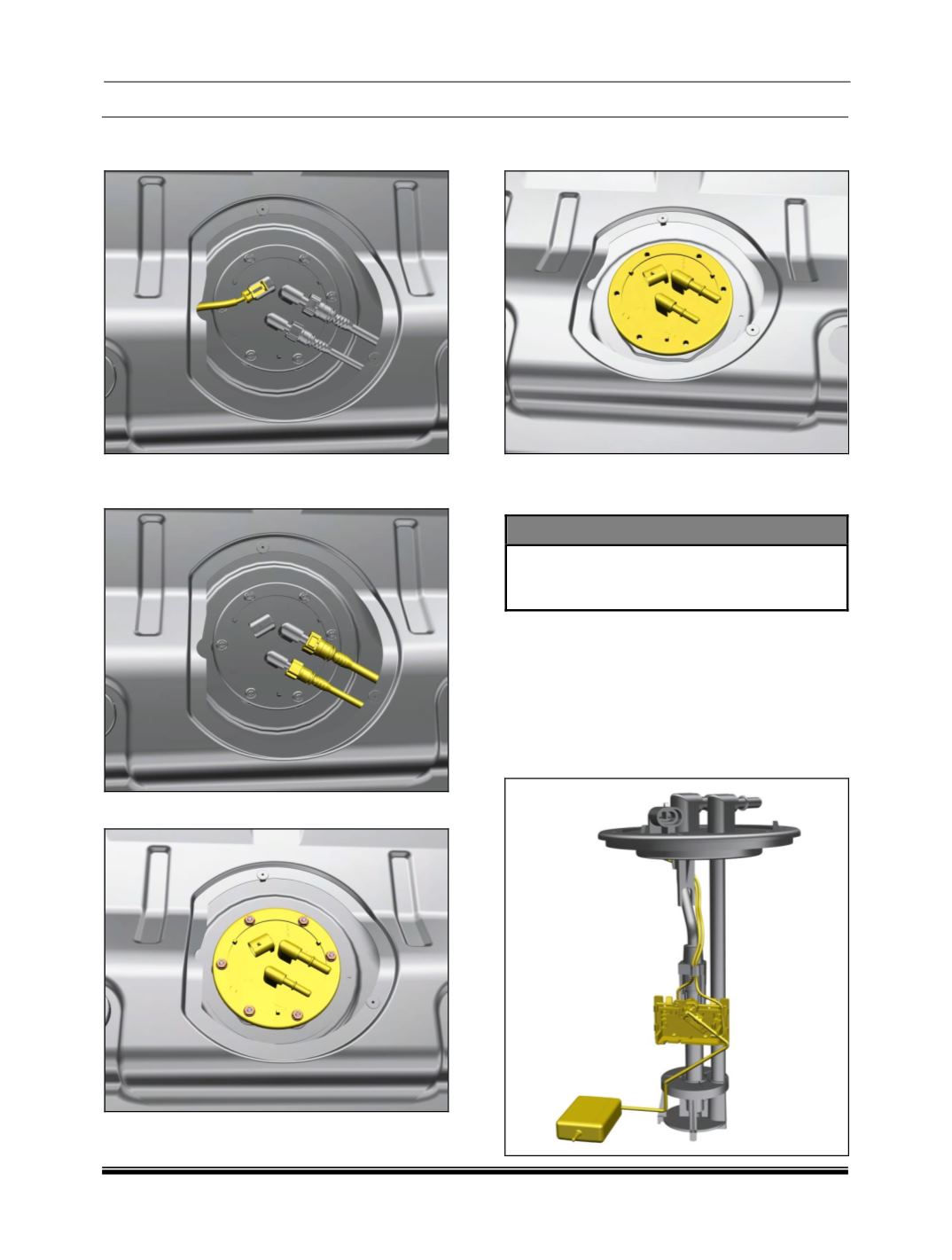

4. Disconnect the electrical connection of the fuel
pump module.
5. Disconnect the fuel delivery line and the hose
connecting fuel pump module to the canister.
6. Loosen and remove the mounting fasteners.
7. Lift the in-tank pump carefully out from the
tank.
FITMENT
For fitment follow removal procedure in reverse.
INSPECTION
Use multi-meter to confirm that the resistance
of the fuel level sensor changes with the level
of float position.
FUEL LEVEL SENSOR
REMOVAL
1. Remove the tank unit.
(For Removal Refer
Tank Unit removal process).
2. Disconnect the electrical connection and
remove the fuel level sensor by releasing the
snap.
