1.5L REVOTORQ BS VI ENGINE
120

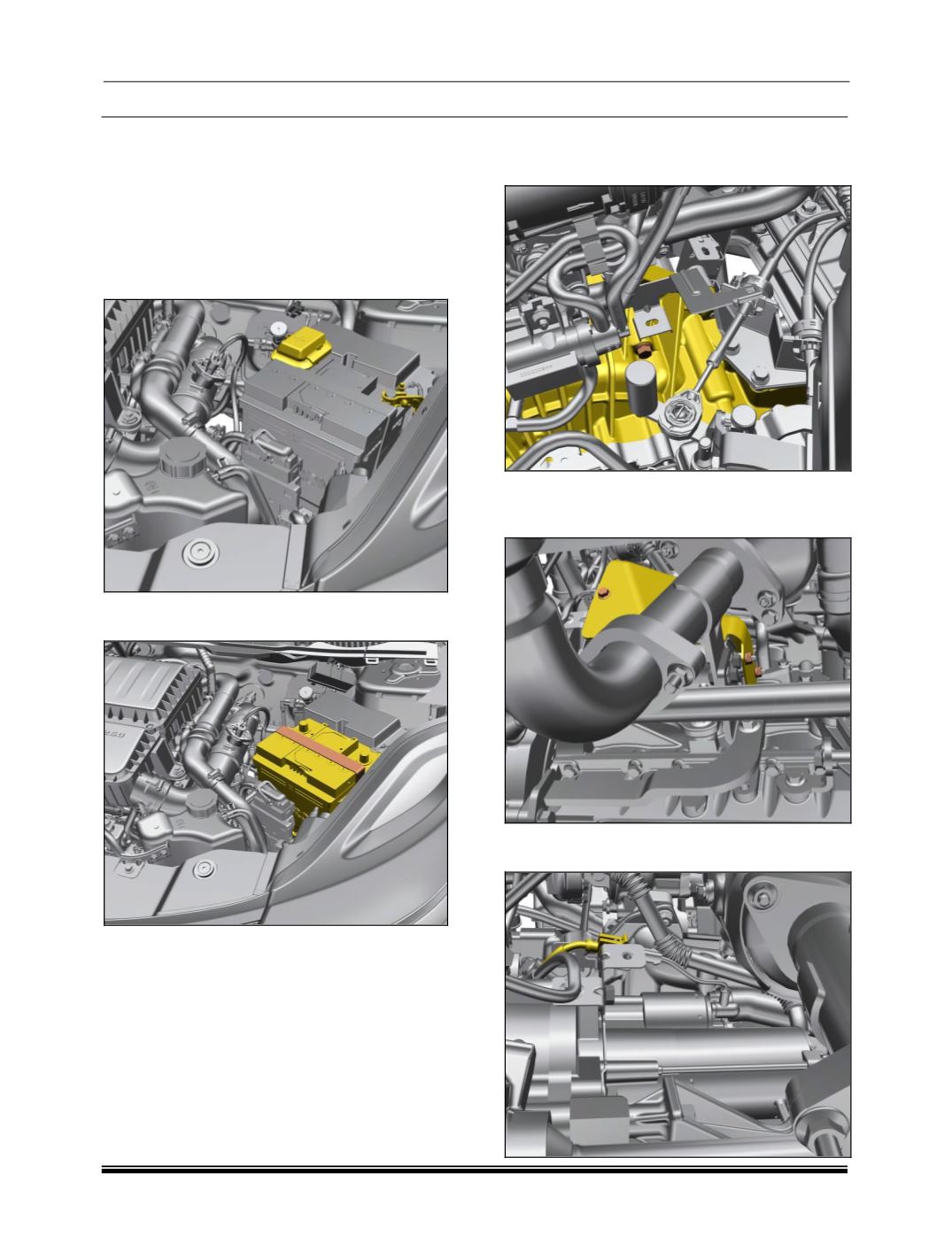

H. STARTER
MOTOR
REMOVAL
AND
FITMENT – NEED INFORMATION
REMOVAL
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Open the hood (bonnet) of the vehicle.
3. Disconnect the negative (-) cable and then
the positive (+) cable from the engine.
4. Remove the battery strap and take out the
battery from the vehicle.
5. Loosen and remove the top mounting bolt of
the starter motor located on the transaxle
housing.
6. Lift the vehicle and remove the mounting
fasteners of the starter motor shield and take
out the shield.
7. Disconnect the electrical connection of the
starter motor.
