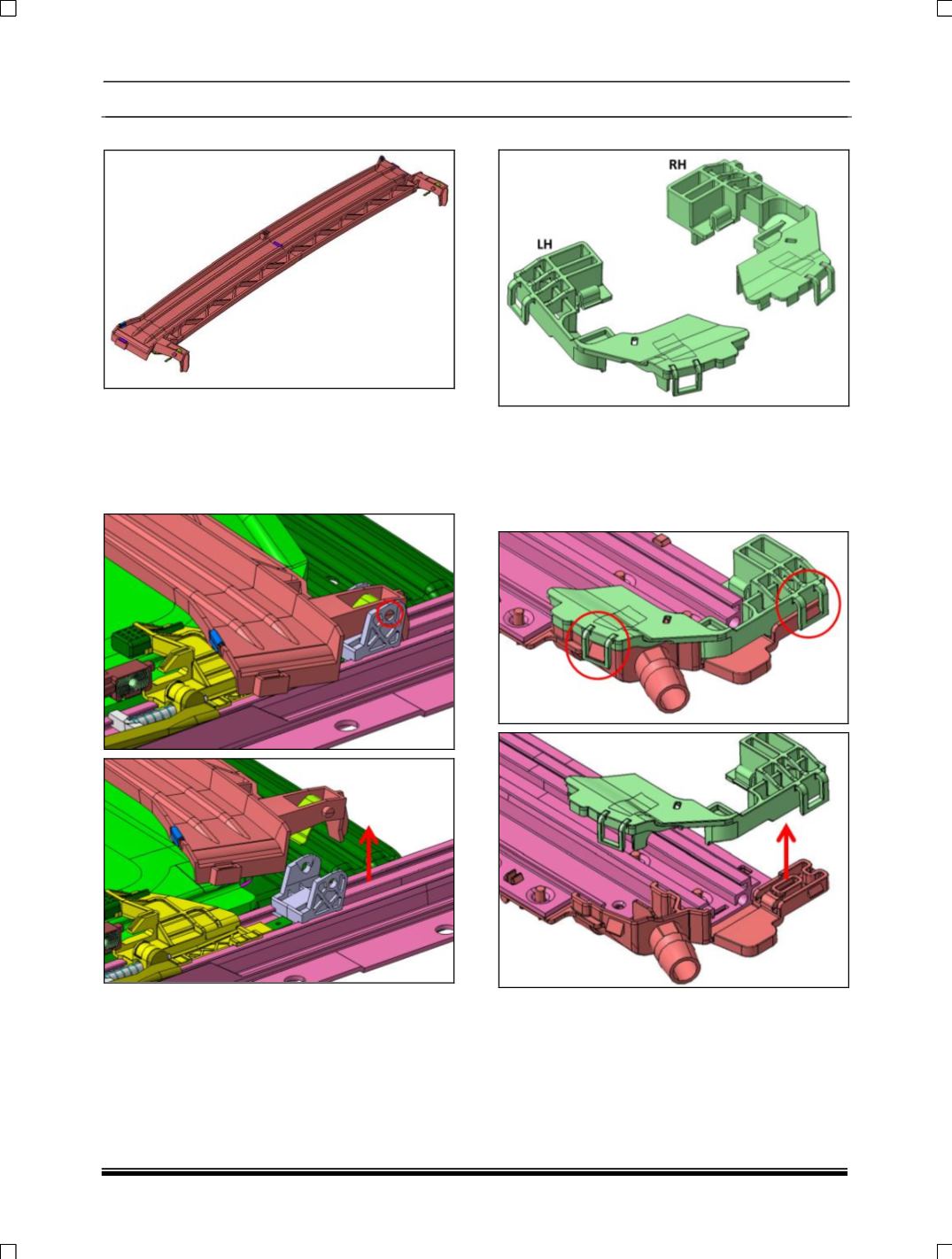

5. REAR WATER CHANNEL ASSEMBLY
REMOVAL
1. Remove sunroof.
2. Unlock Hinge snaps using a flat screw driver on
both the Sides and lift the water channel from
sunroof.
NOTE
Observe the Leaf spring orientation before
removal; label and mark if necessary.
FITMENT
For fitment follow the removal procedure in
reverse.
6. CORNER COVER PIECE
REMOVAL
1. Remove sunroof.
2. Unlock Corner cover snaps using a flat screw
driver on both the Sides and lift the cover from
Guide rail ends.
NOTE
Observe the Corner cover orientation before
removal; label and mark if necessary.
FITMENT
For fitment follow the removal procedure in
reverse.
