BODY
65

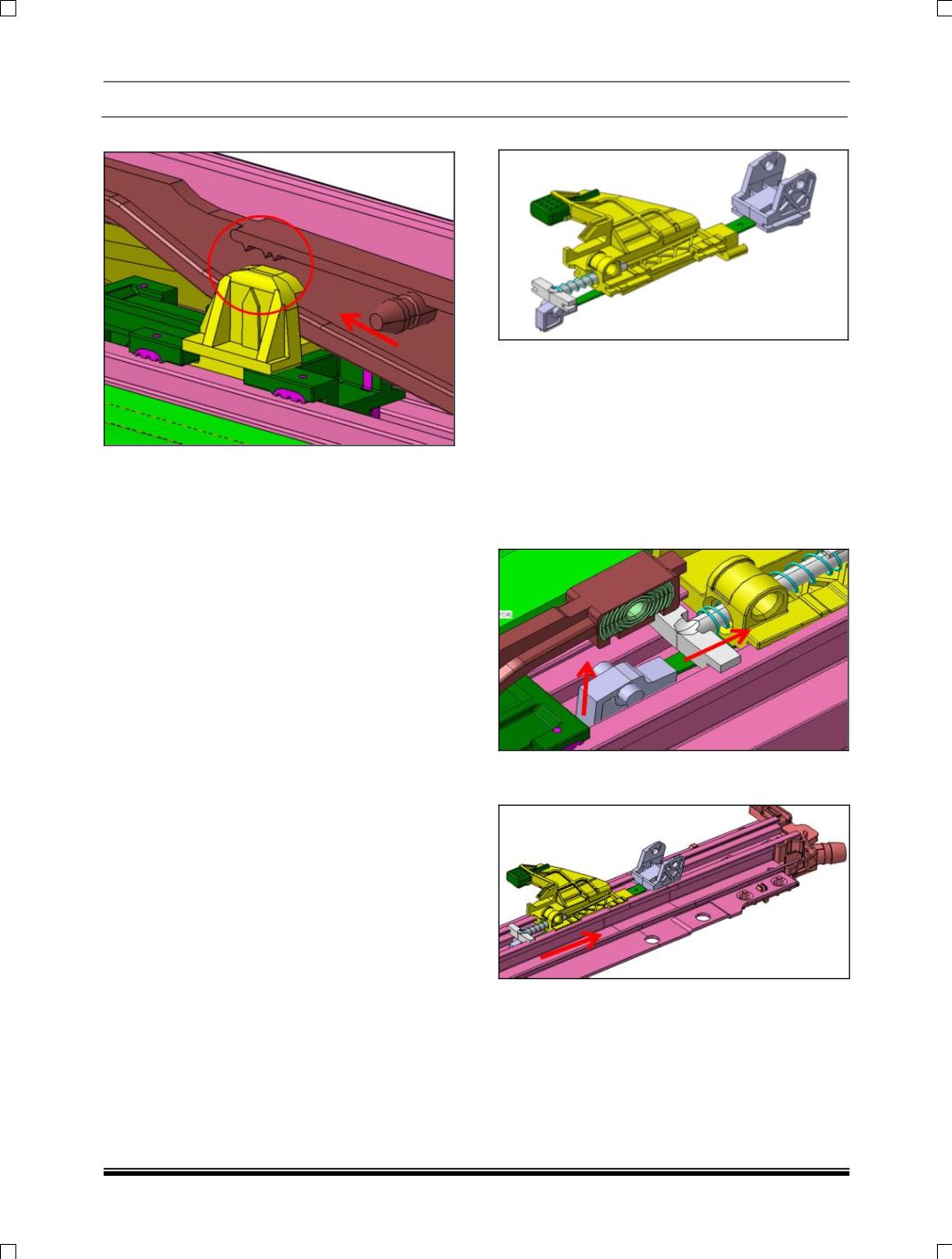

Colissa and Guide RR assembly Position
NOTE
Observe the Colissa guide orientation before
removal; label and mark if necessary.
FITMENT
For fitment follow the removal procedure in
reverse.
NOTE
During installation, Collisa should be moved until
arrow marking is positioned above Guide RR as
shown. This ensures correct mechanism assembly
position.
9. RETAINING HOOK GUIDE AC
REMOVAL
1. Remove sunroof.
2. Remove Glass Panel from Sunroof.
3. Rear Water Channel
4. Remove Corner cover piece.
5. Remove connecting part.
6. Push the spring-loaded Retainer and unlock
Retaining hook from guide rail as shown.
7. Slide the Retaining Hook Guide along the Guide
rail till the end.
8. Remove it from Guide rail.
NOTE
Observe the Hook guide orientation before
removal; label and mark if necessary.
FITMENT
For fitment follow the removal procedure in
reverse.
