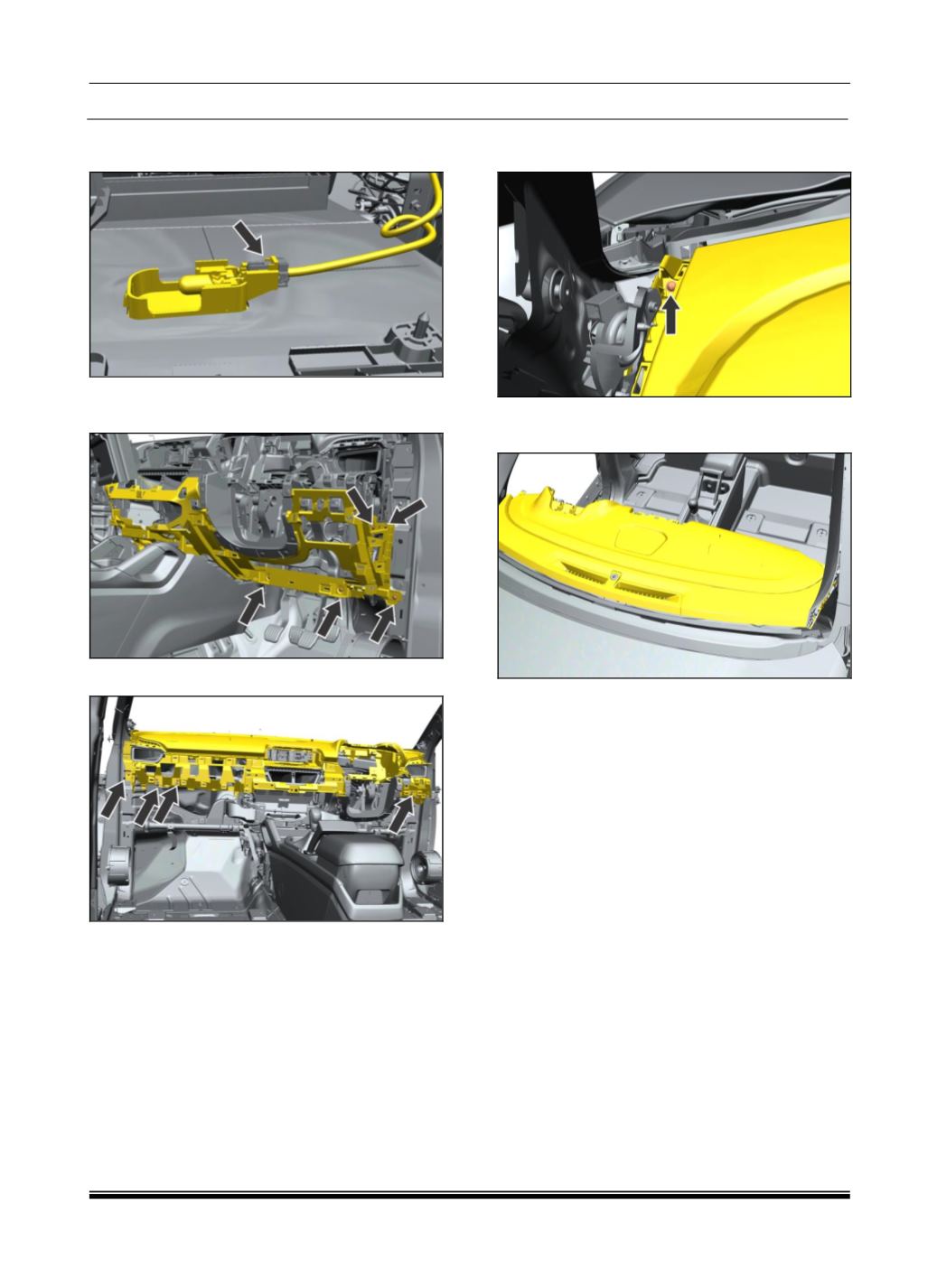

23. Disconnect the electrical connection of glove
box lamp and take it.
24. Loosen remove the screw and pay out the
instrument panel, lower
25. Remove mounting bolts of dashboard
26. Disconnect two connections behind the
control panel assembly.
27. Remove A pillar Lower trim. (For procedure
refer A pillar trim removal process.)
28. Remove two mounting screw near A
pillar.(LH,RH)
29. Disengage 3 locators located on BIW plenum
panel brackets.
30.Remove the dashboard, while removing
Dashboard carefully disengage HVAC system
behind the glove box.
FITMENT
For fitment follow reverse procedure of the
removal.
