BODY
14

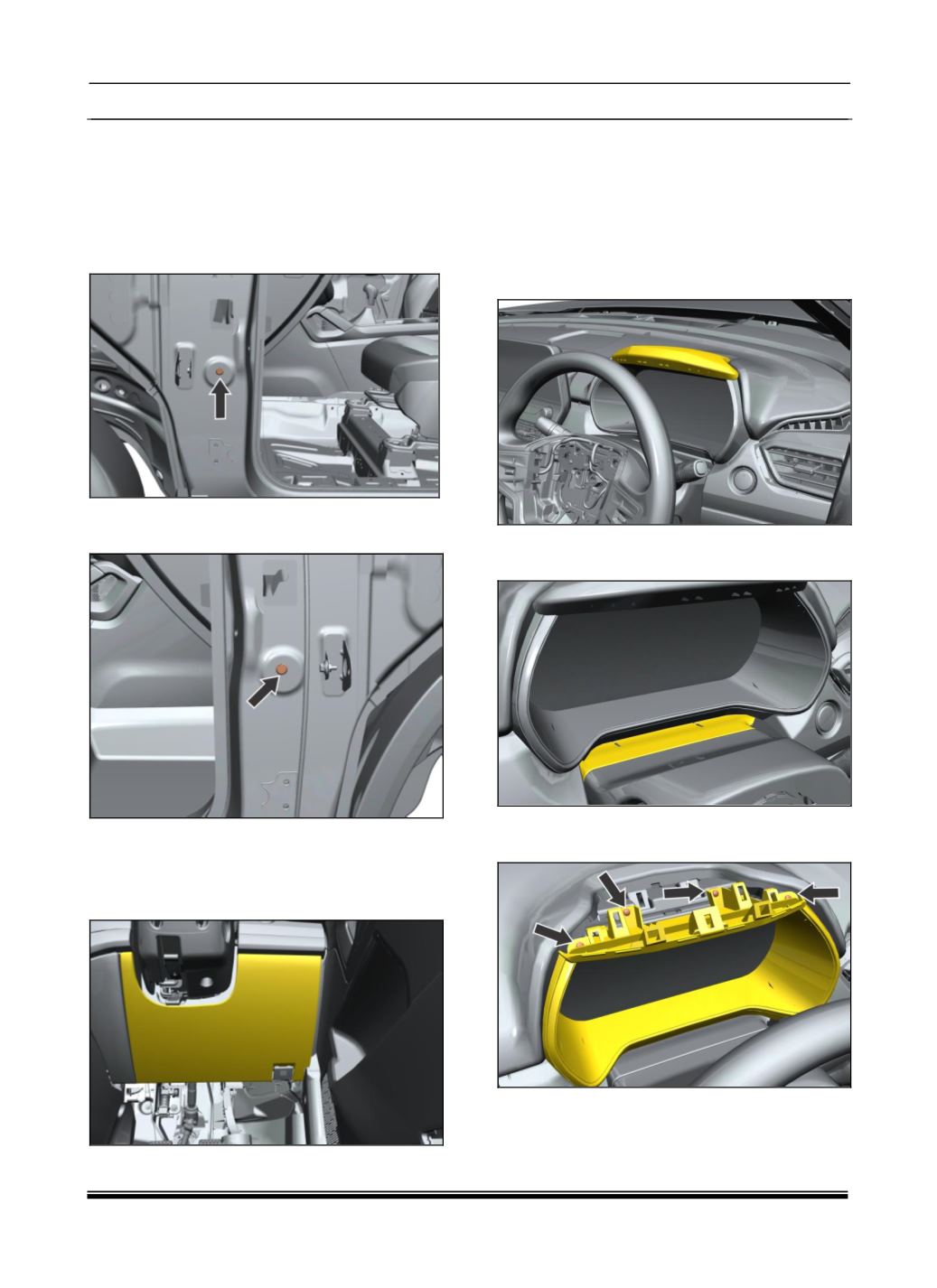

COCKPIT REMOVAL (COMPLETE ASSY)
REMOVAL
1. Remove Door (For procedure refer Door
removal process in Door section.)
2. Remove two dashboard mounting bolts on LH
side as shown in figure.
3. Similarly remove two mounting bolts on RH
side.
4. Remove steering wheel with Driver air bag (if
applicable) (For procedure refer steering
wheel removal process in steering section.)
5. Pull out Driver lower panel.
6. Remove nacelle Assembly. (For removal refer
steering column removal process in steering
section.)
7. Remove combination switch assembly and
ignition switch assembly (For procedure
refers combination switch and ignition switch
removal process in Electrical section.)
8. Pull out instrument cluster hood.
9. Pull out gap hider fitted on the dashboard sub
assembly.
10. Loosen and remove the mounting screw and
take out cluster bezel
11. Remove instrument cluster. (For procedure
refer instrument cluster removal process in
Electrical section.)
