1.4.3 FLOOR CONSOLE

REMOVAL

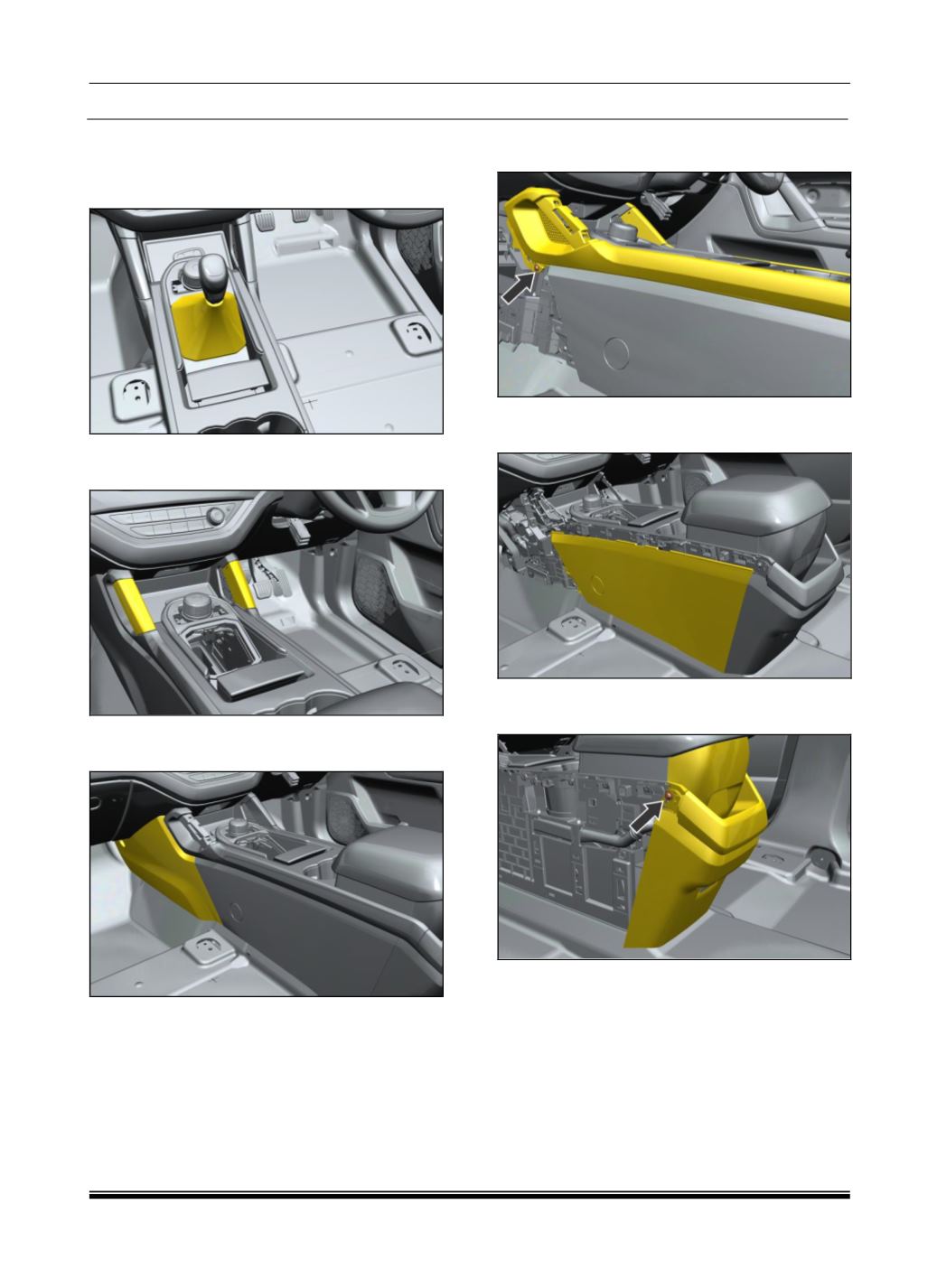

1. Pull out gear shifter bezel.

2. Pull out the console handle with leather LH

and RH sub assy

3. Pull out the floor console side panel LH and

RH side

4. Remove the screw both side and Pull out

console RH and LH side panel.

5. Pull out the console cover side panel LH and

RH side.

6. Remove the screw and pull out the console

rear storage assy
