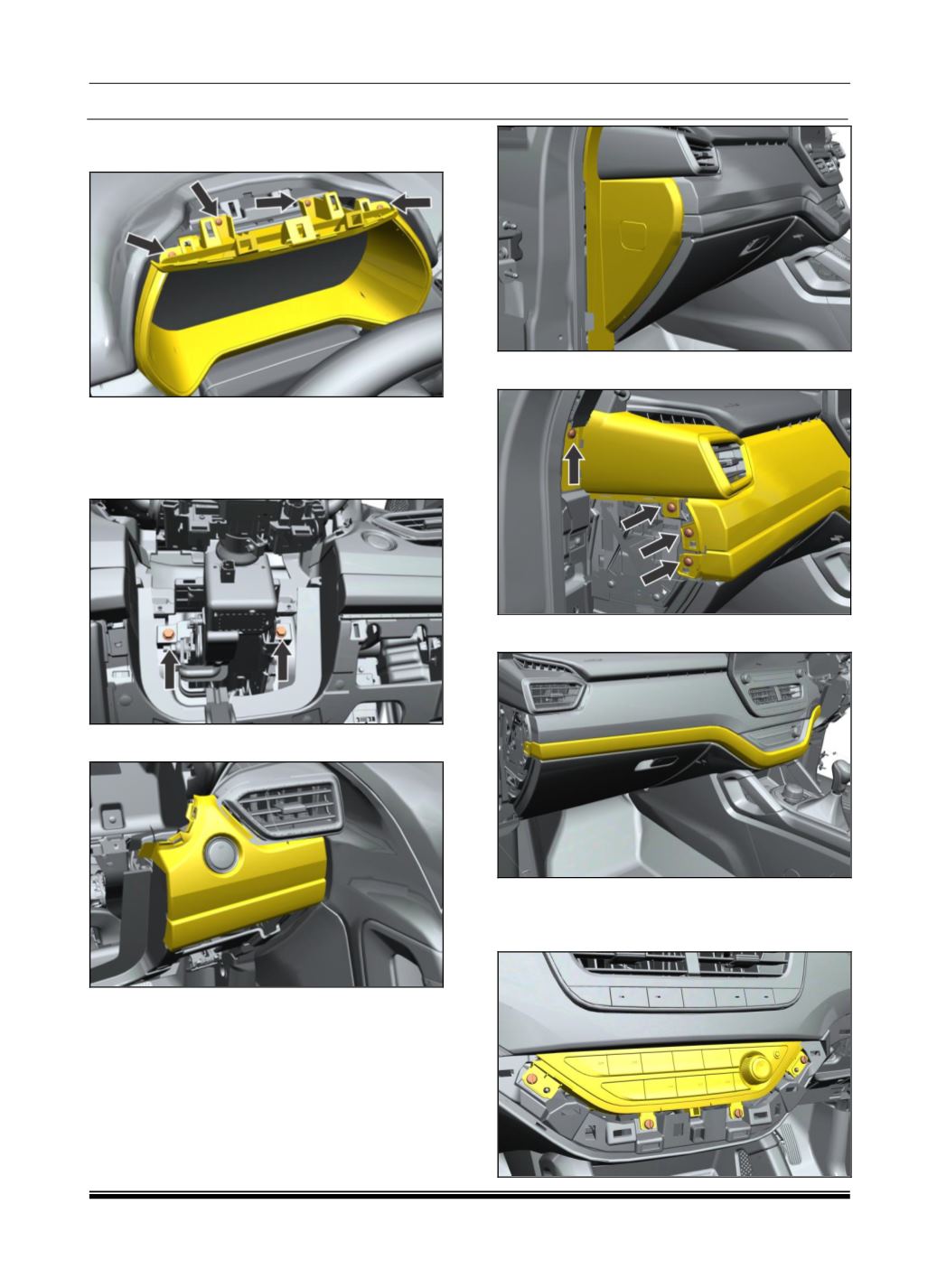

7. Loosen and remove the mounting screw and
take out cluster bezel
8. Remove instrument cluster. (For procedure
refer instrument cluster removal process in
Electrical section.)
9. Remove two steering column mounting nuts.
10.Pull out central trim with hole RH side.
11. Pull out end cover LH side
12. Remove mounting screws.
13. Pull out center assembly
14. Remove the four mounting screws and
Disconnect the electrical connection of
control module.
