C635 TRANSAXLE
41

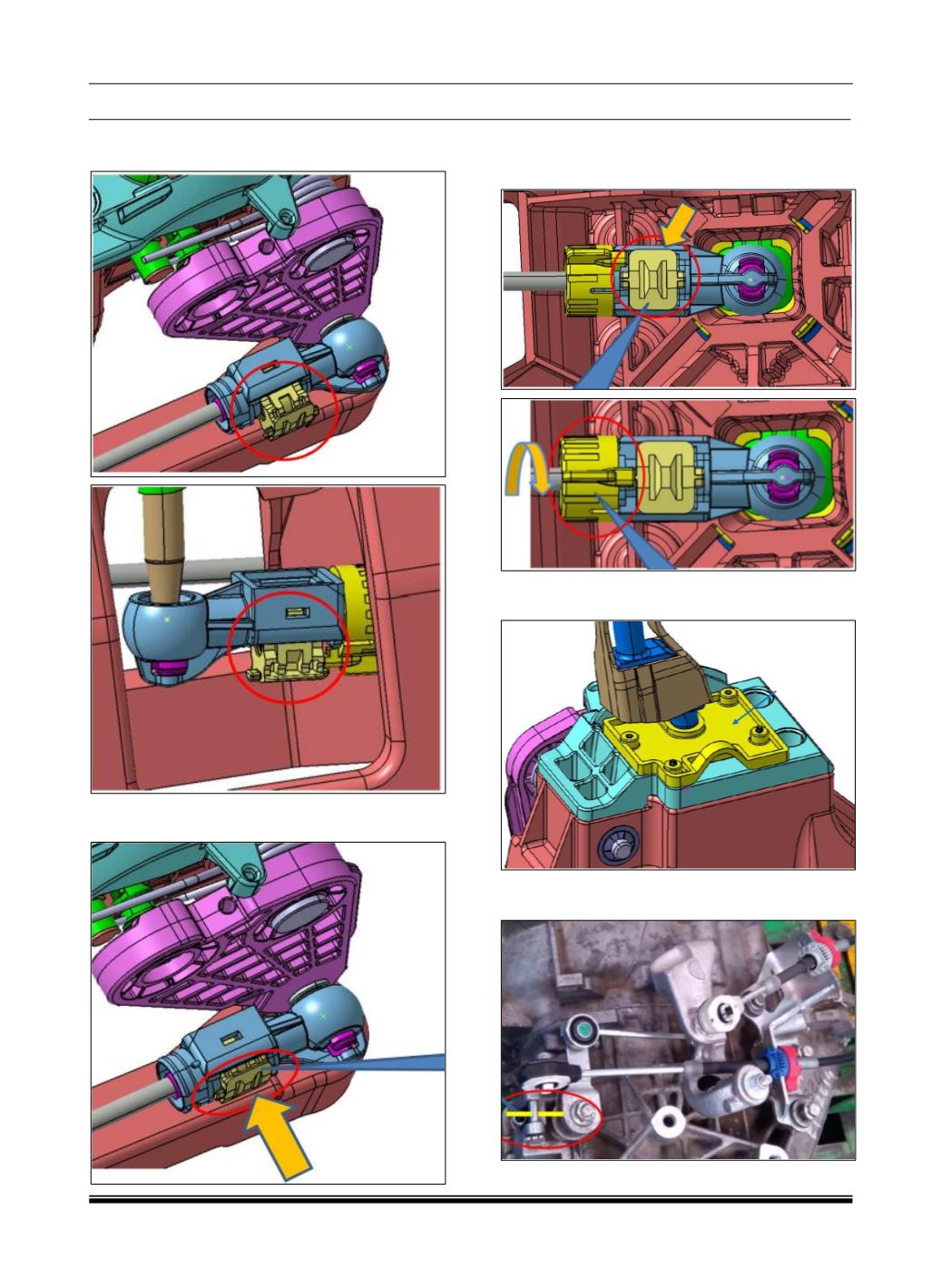

9. Yellow clip will be partially fitted condition
before locking the shift and select cable end.
10.Select cable – Press yellow clip of select cable
end fitting at shifter side.
11.Shift cable- Press yellow clip of shift cable end
fitting at shifter side, Then rotate adjustor lock
clockwise for yellow clip lock.
12.Remove shift lever locking clip (1
st
-2
nd
plane)
placed on Top side of housing.
13.Transaxle side locking pin (1
st
-2
nd
plane) to be
removed at end.
