C635 TRANSAXLE
45

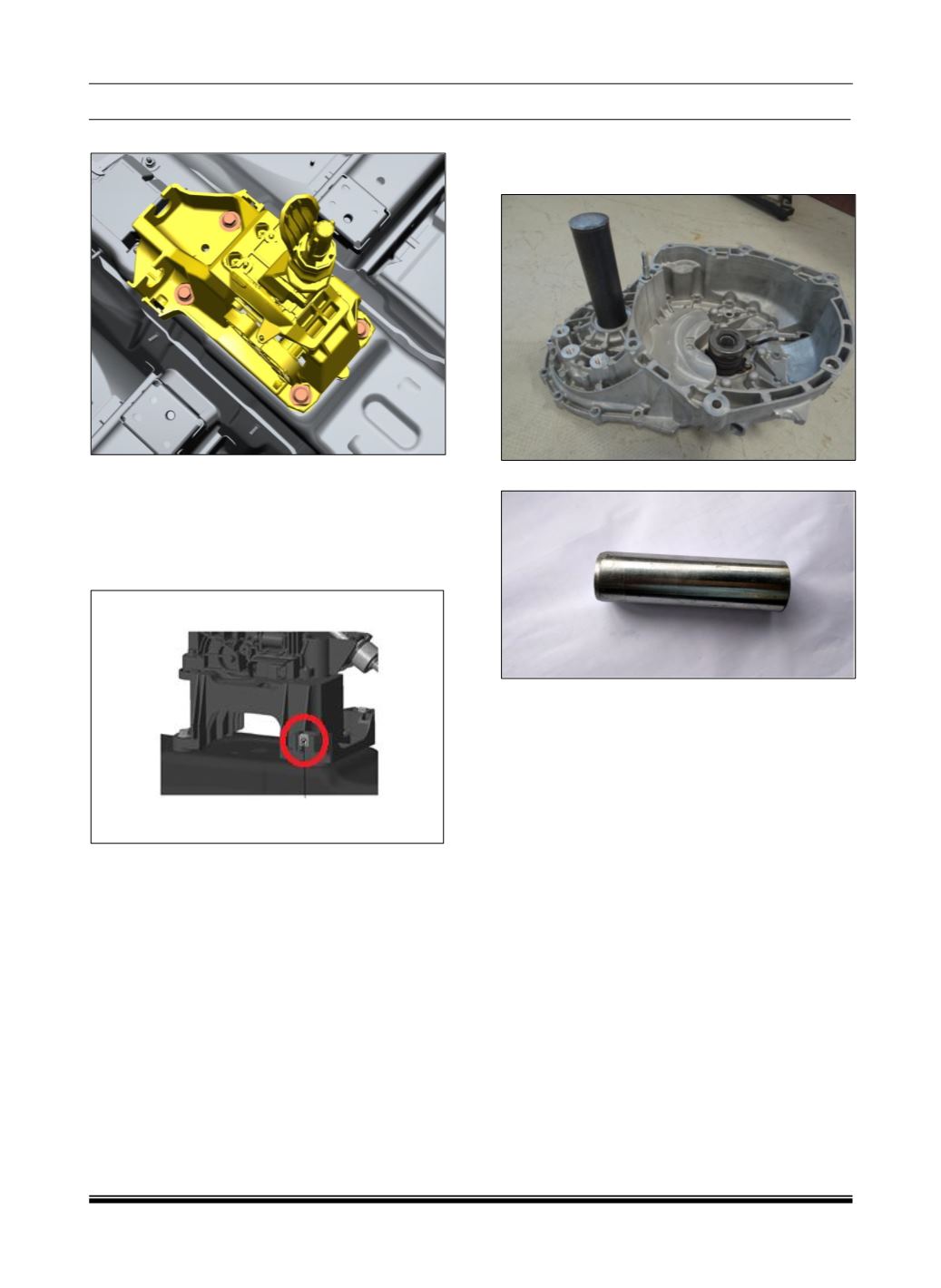

11.Remove all 4 bolts on Shifter mechanism Unit.
12.Take out shifting Mechanism unit from vehicle.
16.ASSEMBLY GEARSHIFT MECHANISM
Follow the reverse procedure of gearshift housing
removal process.
Before assembly of console assy, Fix C Nut ST
4.8 (2 Nos) on Gear shifter Housing from TOP.
Ensure “Neutral setting procedure” get followed
during reassembly as mentioned in the document.
17.ASSEMBLY DIFFERENTIAL OIL SEAL
1. Fix differential oil seal using Tool no
2654 5890
3511
DRIFT 2654 5890 3511
NOTE:
1. USE TOOL NO.
2654 5890 3511
FOR ON
VEHICLE OIL SEAL ASSEMBLY OPRATION.
USE STANDARD TOOL FOR REMOVAL OF OIL
SEAL ASSEMBLY OPERATION.
