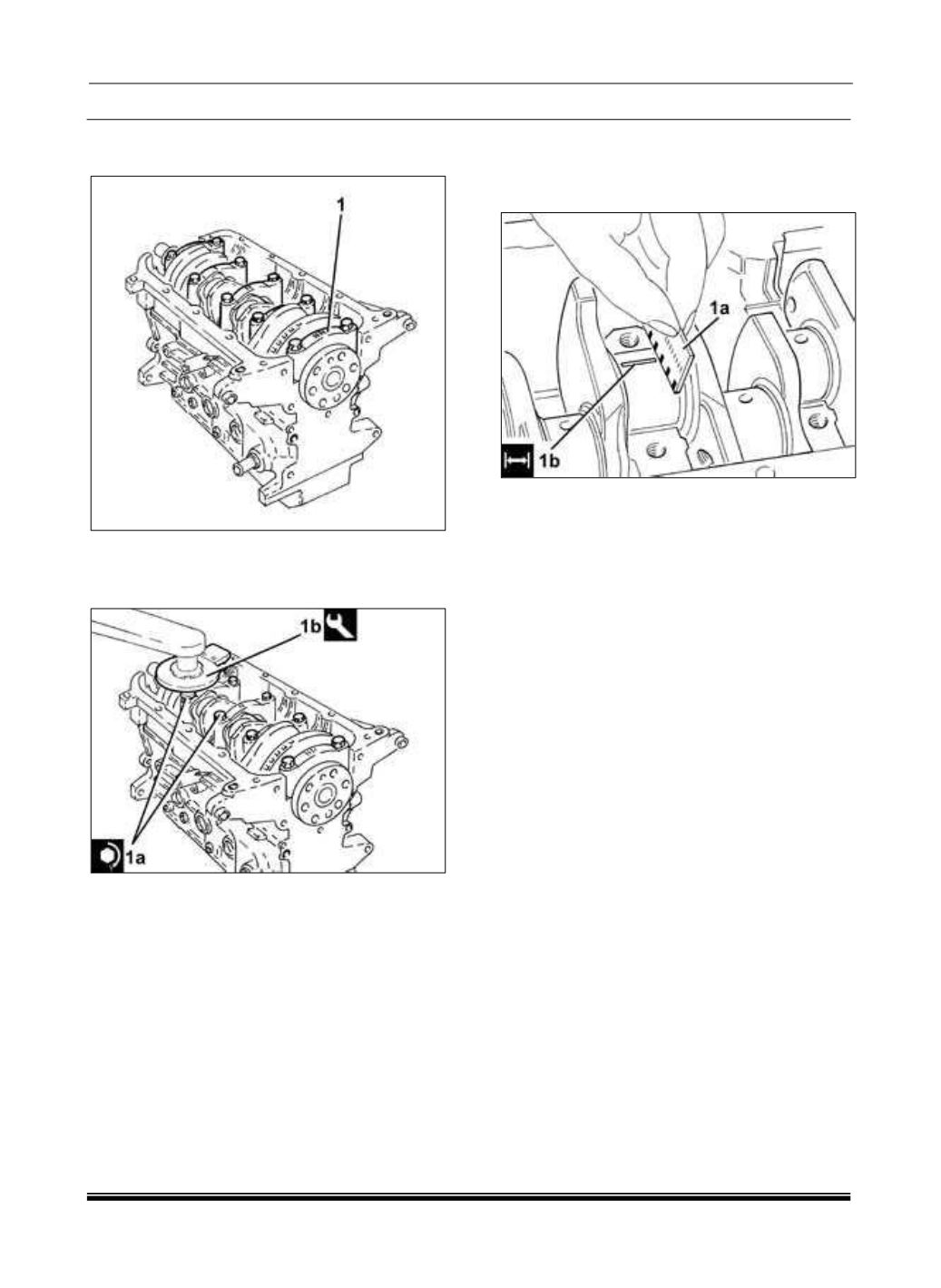

23. Fit the bearing caps complete with bearing
shells (1).
24. Tighten the bearing cap bolts (1a) using a
suitable angle tightening tool (1b) to the proper
(Torque Specifications).
25. Remove the bearing caps previously installed
and using the graduated measuring guide (1a)
determine the bearing clearance indicated by the
calibrated wire (1b).
NOTE
If the measured value is not within specification,
replace the bearing shells with the proper
dimension of the appropriate class. Perform the
measurement on the remaining journals taking
care not to rotate the crankshaft.
26. Check that the diameter of the connecting rod
small end bushings are within specification (Refer
to 09 - Engine/ Specifications).
27. Verify that the internal diameter of the pistons
pin bores are within specification (Refer to 09 -
Engine/ Specifications).
28. Make sure that the outer diameter of the piston
pins are within specification (Refer to 09 - Engine/
Specifications).
29. Insert the piston rings in the cylinder bore and
check that the end gaps are within specification
(Refer to 09 - Engine/Specifications).
30. Make sure that the piston outer diameter is
within
specification
(Refer
to
09
-
Engine/Specifications).
NOTE
Measure 7 mm up from the bottom edge of the
piston skirt, perpendicular to the piston pin bore.
31. Check that the piston to cylinder bore
clearances are within specification (Refer to 09 -
Engine/Specifications).
32. Check that the thickness of the piston rings are
within
specification
(Refer
to
09
-
Engine/Specifications).
