BODY

1

ON VEHICLE PROCEDURE

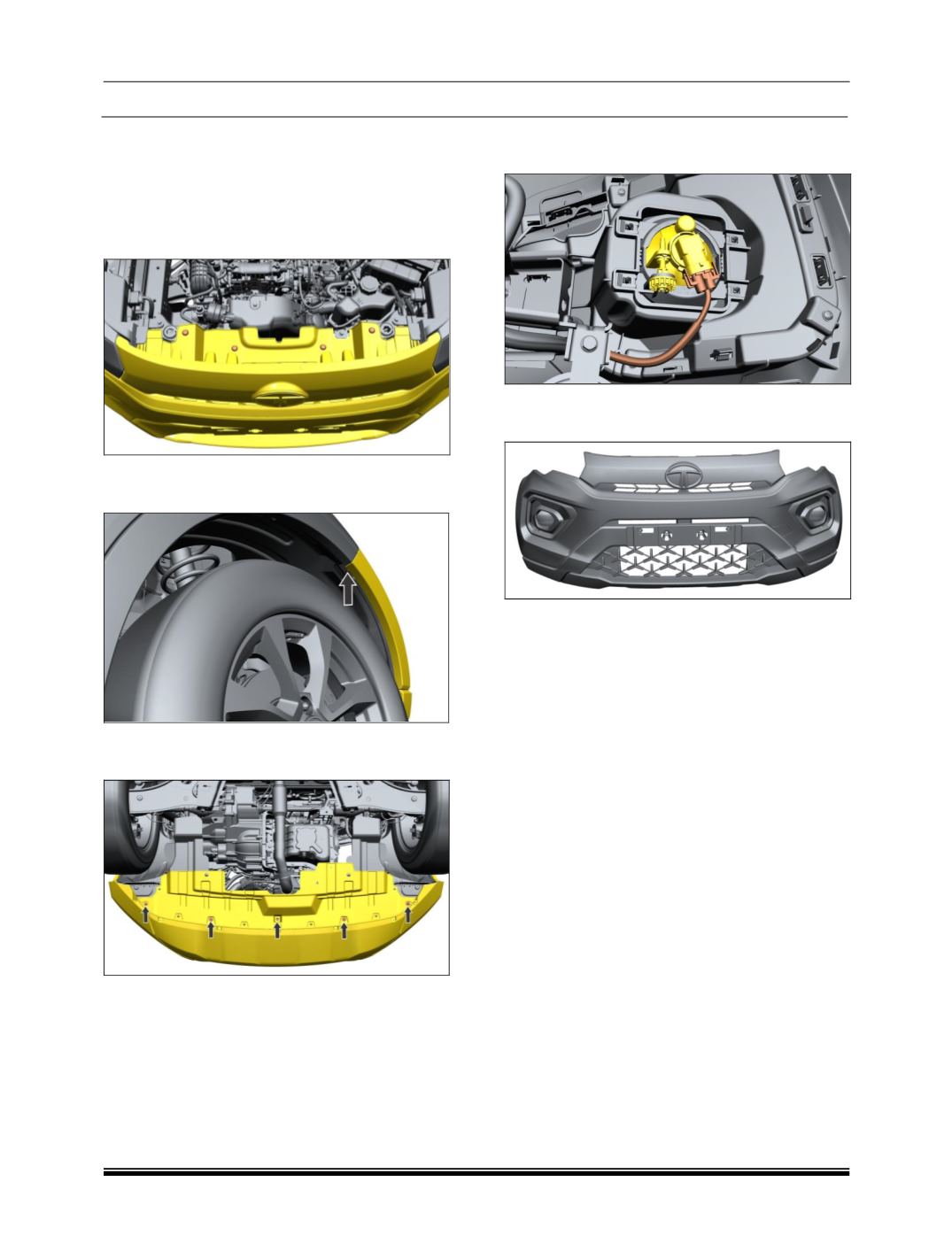

A. FRONT BUMPER REMOVAL (NEXON BS

VI)

1. Open the bonnet.

2. Remove clips M6 on Front Bumper.

3. Remove ST 4.8X16 Screws on Front Bumper

from LH and RH sides.

4. Remove Flange Screw M6X20 and ST

4.8X16 from bottom side of Bumper.

5. Disconnnect

Fog

Lamp

Electrical

Connection.from LH and RH Sides.

6. Take out Front Bumper assembly from

Vehicle.

FRONT BUMPER ASSEMBLY

Follow the reverse procedure of Front Bumper

Removal.
