BODY
7
3. Use flat blade screwdriver to pry open the feet
slip.
4. After removing 8 feet slips, sunshade can be
removed from the vehicle.
FITMENT
For fitment follow the removal procedure in
reverse.
NOTE
Observe the Sunshade orientation before
removal; label and mark if necessary.

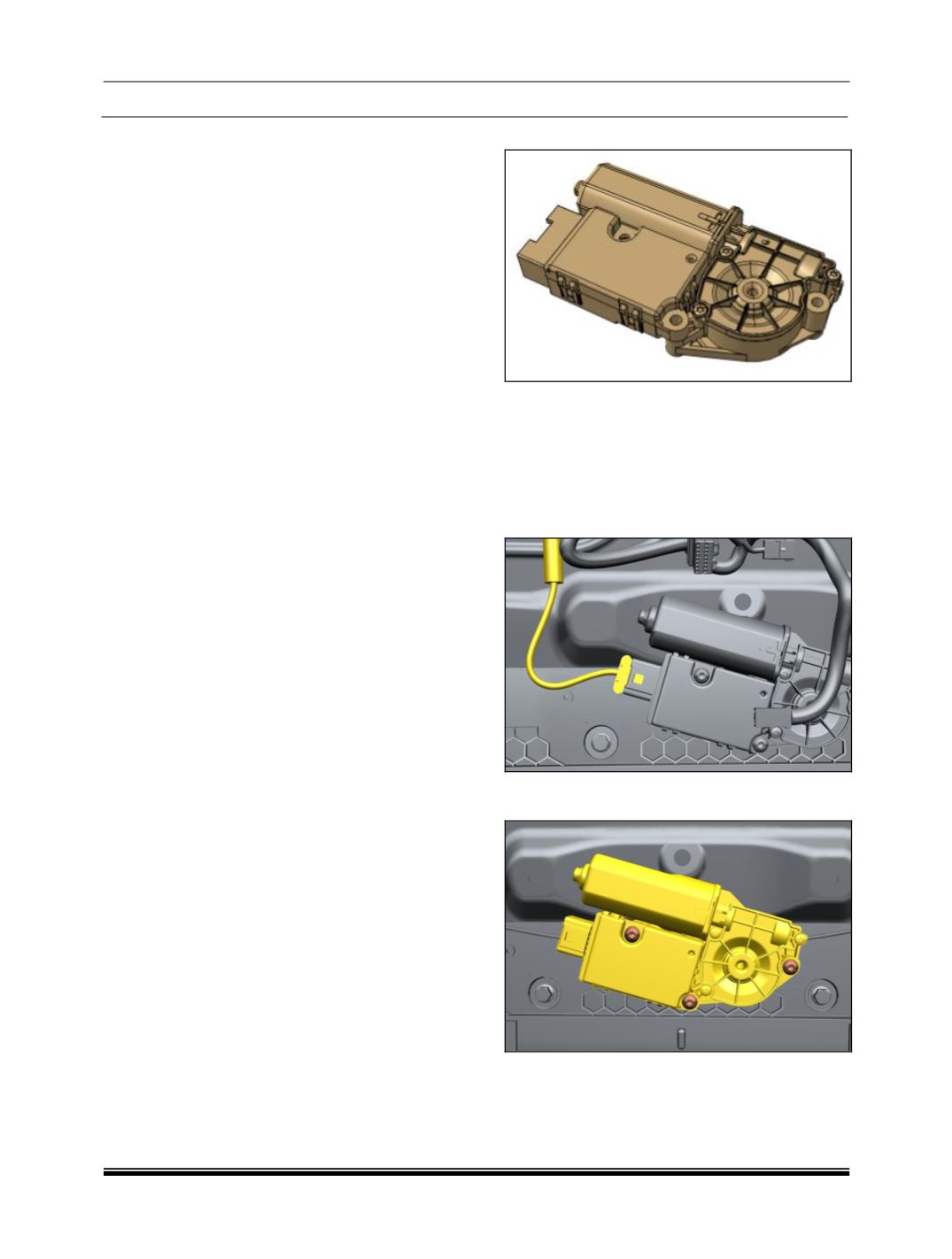

4. ELECTRIC DRIVE ASSEMBLY
REMOVAL
Remove the following Interior Trim:
Garnish Mouldings, Sun Visors, Overhead
Consoles, Coat Hooks, Assist Straps, Factory
Headliner.
1. Unplug wiring harness connected to Electric
drive.
2. Remove all three (3) screws from the Electric
drive.
3. Remove the electric drive from the sunroof.
FITMENT
For fitment follow the removal procedure in
reverse.
