11. Unplug all the wiring harness connected to
sunroof, Remove all the cables routed and
clipped on to the sunroof.

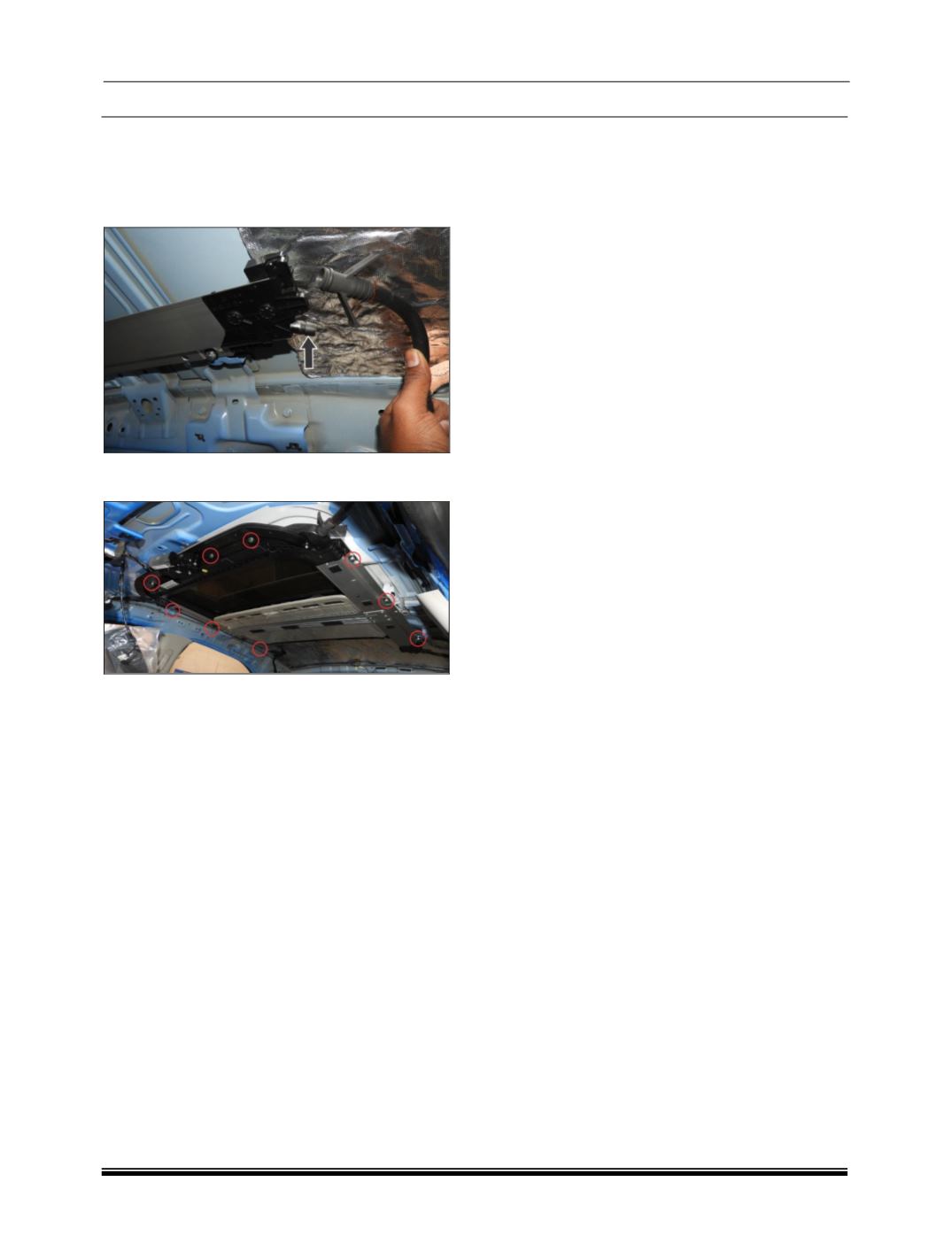

12. Unplug all the drain hoses from 4 corners of
the sunroof.
13. Remove all the mountings and give support to
Sunroof and take it out.
NOTE
Due to the weight of the sunroof assembly it is
recommended that you use Jacks to support the
sunroof assembly to avoid Twisting of guide rails
during handling.
FITMENT
1. Position the sunroof onto the mounting
location.
2. Attach all screws with washer. Do not tighten
until the Guide rail aligned with the factory
mounting points.
3. Once all fasteners are aligned and then start
tightening securely.
4. Maintain tightening torque of 7±10% N-m
5. Plug all the wiring harness to the sunroof,
Route all the cables and clip it on to the
sunroof.
6. Plug all the drain hoses to all 4 corners of the
sunroof.
7. Fix Beeding.
8. Fix A, B and C Pillar.
9. Fix All Grab Handles.
10. Connect electrical connection on microphone
and sunroof switch.
11. Tighten 2 mounting screws on Roof console
Housing.
12. Connect electrical connection on Roof Lamp
and Tighten Roof Lamp.
13. Fix Sunvisors.
14. Connect Battery –Ve Terminal.
NOTE
Due to the weight of the sunroof assembly it is
recommended that you use Jacks to support the
sunroof assembly to avoid Twisting of guide rails
during handling.
