NEXON BS VI - SERVICE MANUAL

FATC

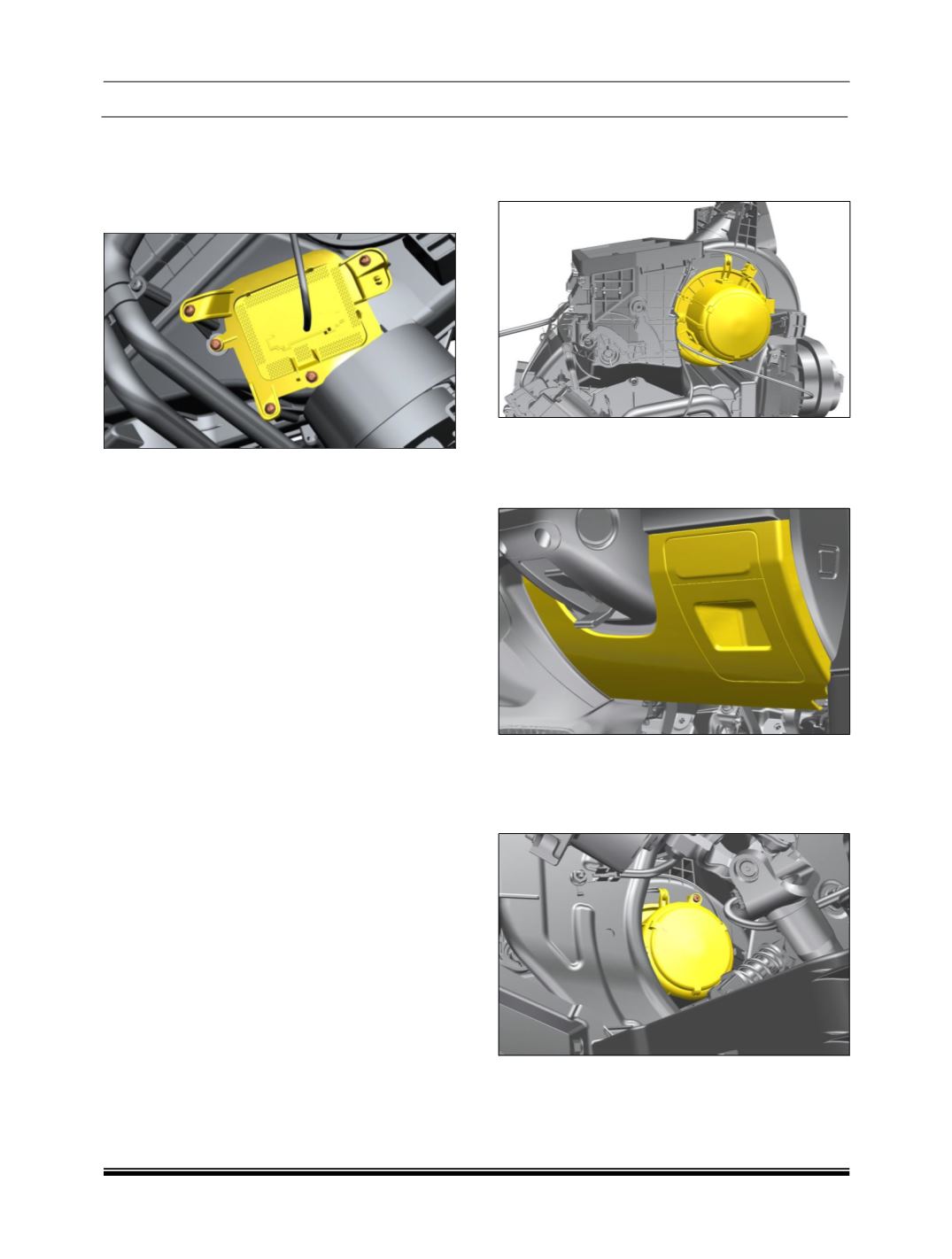

2. Access the blower control module from driver

side. Remove the electrical connection from the

module.

3. Remove the mounting screws and take out the

module along with the cover.

4. Remove the mounting screw of the module and

take out from the cove.

REFITMENT

For fitment, follow reverse procedure of removal.

9. BLOWER UNIT REMOVAL AND ASSEM-

BLY

LOCATION

It is located on the right top side of the HVAC unit.

REMOVAL

1. Remove steering column cover.

2. Access the blower from driver side. Remove the

electrical connection from the module.

3. Loosen and remove mounting screw of blower

motor.

4. Rotate blower assembly in anticlockwise direc-

tion & take out the same.

REFITMENT

For fitment, follow reverse procedure of removal.
