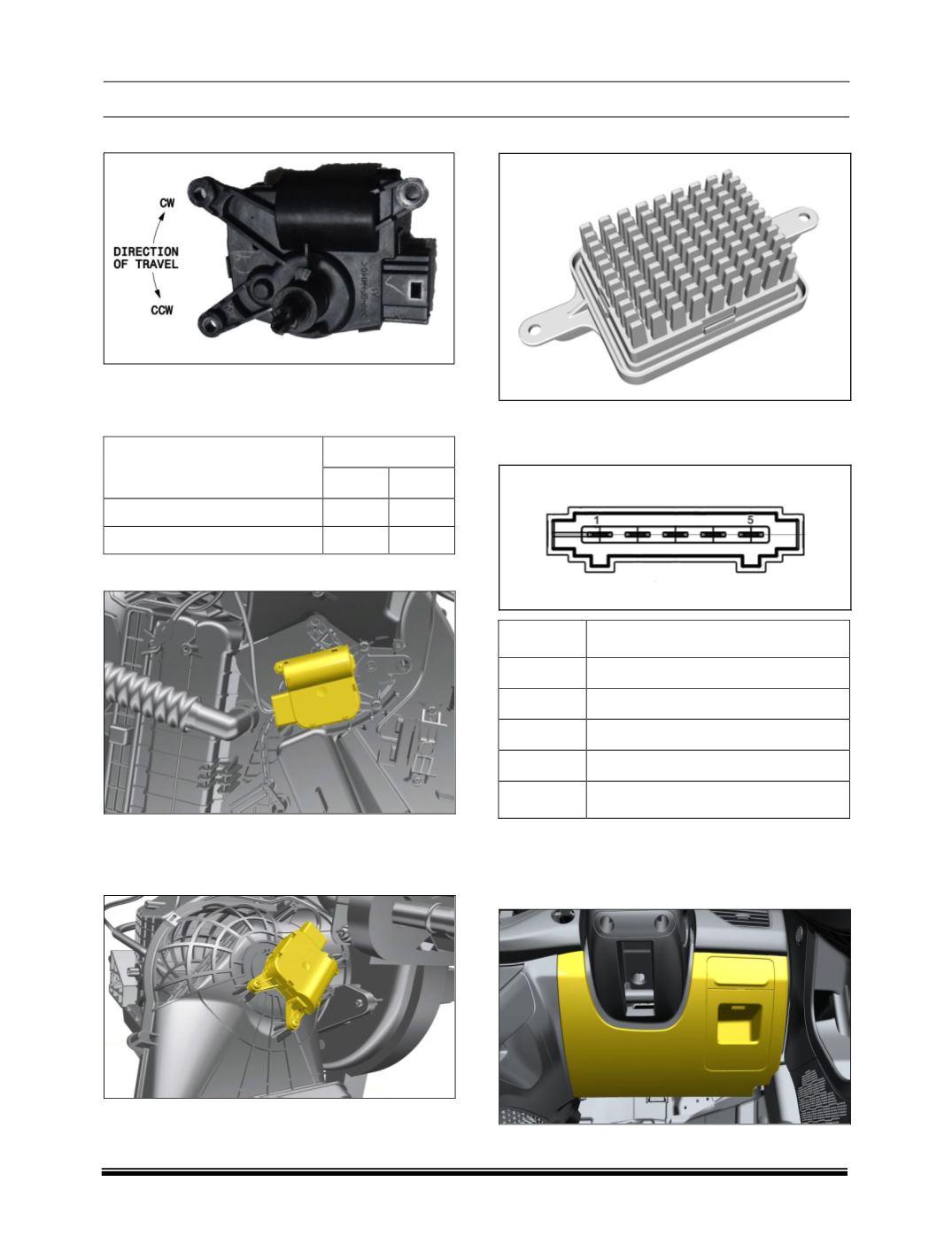

INSPECTION
When 12.0V supply is given to pin 5 and pin 6, the
movement of the actuator should follow the below
table.
Motor Movement
Input
Pin 5
Pin 6
Clockwise rotation
+ VE
- VE
Counter Clockwise rotation - VE
+ VE
ii. Temperature Actuator
To operate heater flap inside HVAC Unit, this flap
diverts Hot & cold air inside HVAC Unit.
iii. Fresh / Recirculation Actuator
This actuator operates the flap inside Fresh air inlet;
this flap opens/closes the vent for outside air into
HVAC unit.
F. BLOWER CONTROL MODULE
It is mounted on evaporator housing.
PINOUT
PIN NO
DESCRIPTION
1
CONTROL
2
DIAGNOSTICS
3
- MOTOR
4
+ BAT
5
GND
REMOVAL AND ASSEMBLY
REMOVAL
1. Remove steering column cover.
