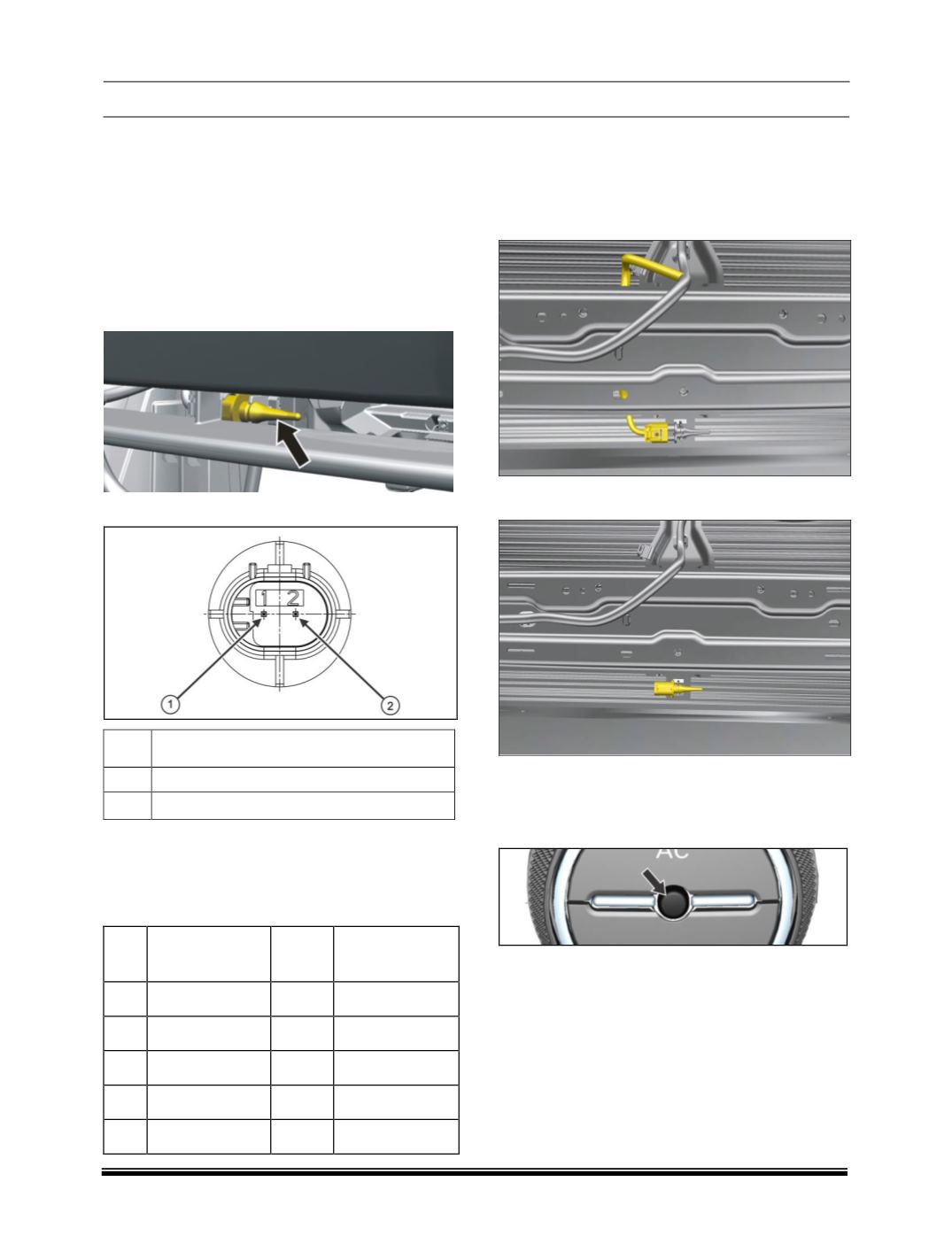

B. OAT SENSOR
The ambient temperature sensor is an encapsulated
thermistor that provides the ECU with an input of
external air temperature. Ambient sensor is a ther-
mistor that decreases its resistance when
temperature increases and increases when tempera-
ture decreases.
LOCATION
Outside Ambient Temperature (OAT) sensor located
on cross member behind the front bumper.
CONNECTOR DETAIL
PIN
DESCRIPTION
1
Analog Supply
2
GND
INSPECTION
Measure the resistance between terminals of the
sensor at minimum two temperatures. The re-
sistance value should match with stated values of
resistance in table below
T
(˚C)
R Gerber (Ω)
Tol
(K)
U (V)
-10 16567.3 ± 277.6 ± 0.30 2.5261 ± 0.0347
0
9773.2 ± 118.4 ± 0.25 2.2035 ± 0.0310
10 5953.9 ± 102.8 ± 0.36 18366 ± 0.0327
20 3737.3 ± 79.0
± 0.50 14661 ± 0.0323
30 2412.0 ± 57.6
± 0.60 11297 ± 0.0295
REMOVAL
1. Remove the Front bumper.
(For removal, refer
Font Bumper removal procedure in Body
Section).
2. Disconnect the electrical connection.
3. Pull out the OAT sensor from the location.
FITMENT
For fitment, follow reverse procedure of removal.
C. INCAR
SENSOR
Incar sensor is a sensor that measures the average
passenger cabin ambient temperature.
NOTE
No fitment can be done of the incar sensor since
it’s a part of the control panel.
