SUSPENSION
31

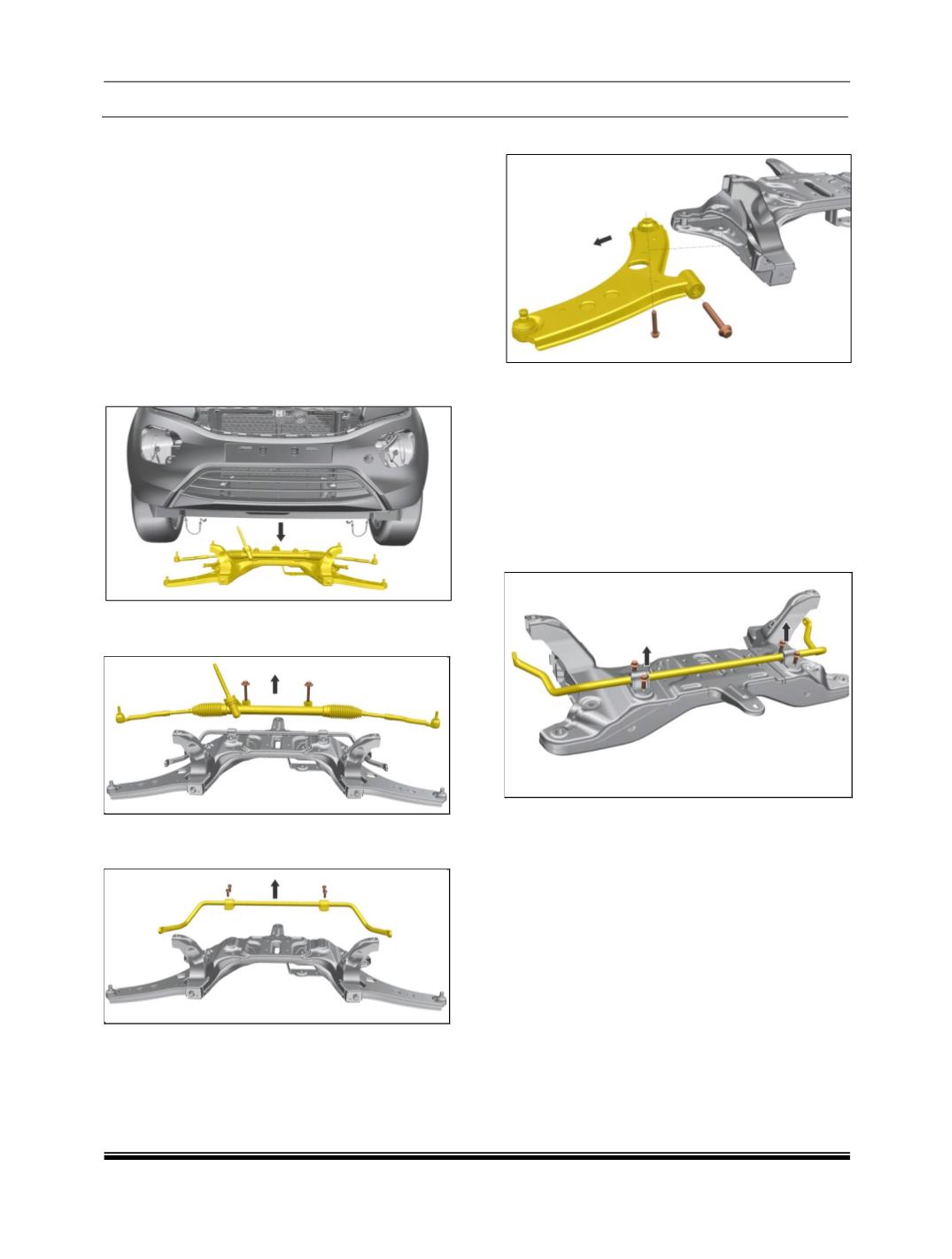

9.4. REMOVAL OF SUBFRAME ASSEMBLY
1. Remove the front wheel and disconnect the anti
roll bar joint.
2. Disconnect the steering tie rod ball joint from the
knuckle.
3. Disconnect the EPAS. (steering group)
4. Remove the C mount of the engine from the
Subframe.
5. Remove Exhaust Front Pipe Assy
(for Petrol).
6. Loosen the Subframe bolts and lower the
assembly (Subframe, antiroll bar, steering rack,
lower arm).
7. Remove the steering rack assembly from
Subframe.
8. Remove the anti roll bar from Subframe.
9. Remove the lower arm assembly
9.4.1. REMOVAL AND INSTALLATION OF ANTI
ROLL BAR
1. Position the vehicle on two post lift.
2. Remove lower nyloc nut of ball joint securing
Stab link to the anti roll bar.
3. Do markings at the area shown by arrows,
before removing anti roll bar mounting clamp
bolts so that anti roll bar can be easily
centralized while installation.
4. Remove anti roll bar mounting clamp screw (06)
and take out anti roll bar along with washer (7).
Installation
1. Mount anti roll bar but do not tighten the bolts.
Align paint mark with bush face to centralize anti
roll bar.
