SUSPENSION
29

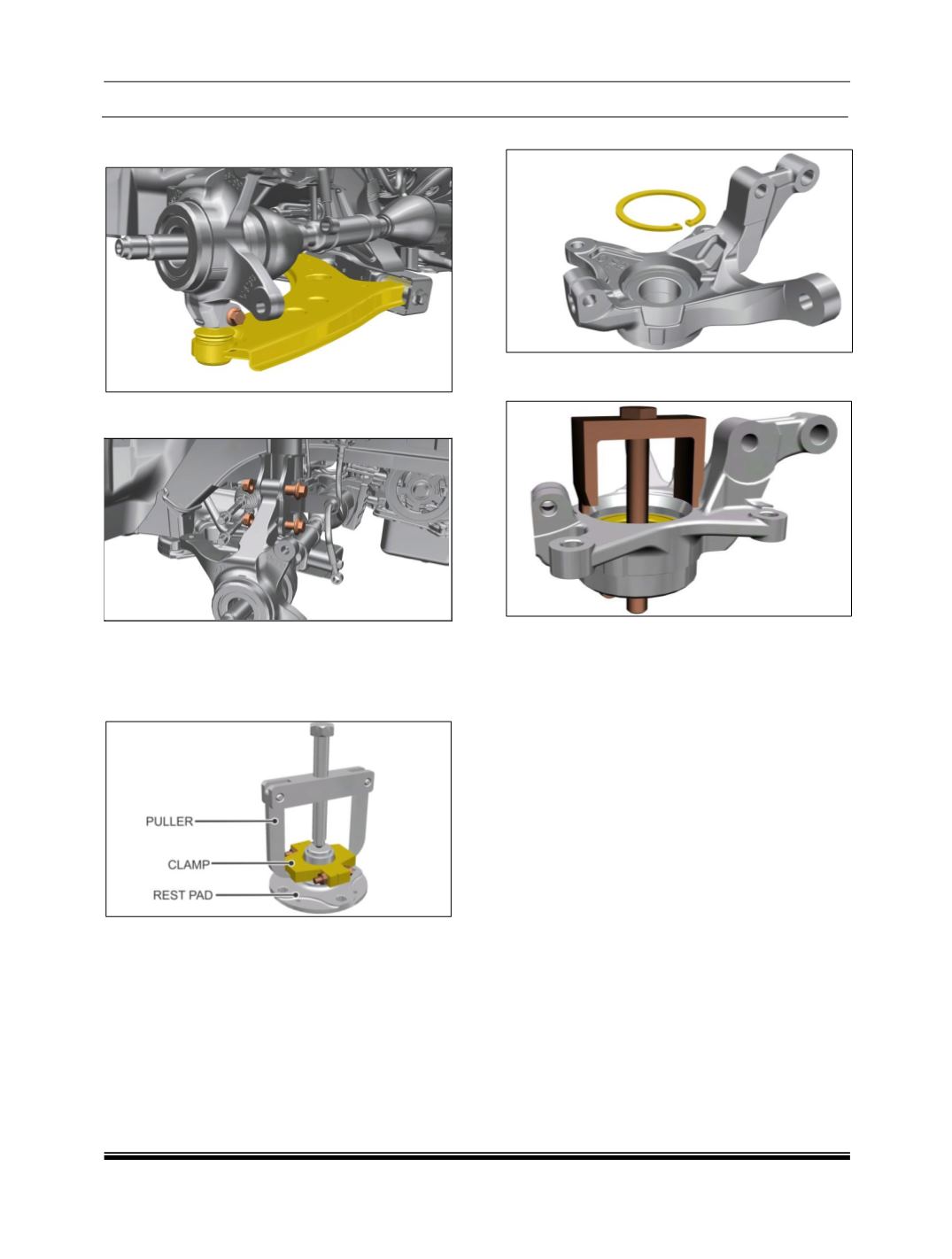

15.Remove ball joint of lower arm from the
Knuckle.
16. Remove strut mounting bottom bolts from the
knuckle assembly by supporting the drive shaft
17.Using clamp part No. 2779 5890 3303 puller
part No. 2654 5890 3508 and rest part No. 2702
5890 2612 remove inner race of bearing from
the hub
18. Remove circlip from knuckle.
19. Pull out knuckle bearing using puller part No.
2779 5890 3302
INSTALLATION:
1. Follow the above steps in reverse order in
appropriate sequence for its assembly.
NOTE:
High / Low point matching on Hub and Disc
Observe the condition of disc surface. If the disc
surface is smooth ensure that punch mark (Low
Point) on disc and hub (High Point) are aligned and
assembled.
If the disc surface is uneven showing rough marks,
grooves - machine it to the specified limit; measure
the run out on dia 220 w.r.t. hub and disc resting
face.
Punch mark around bolt hole where run out on dia
220 is at low point.
Align low point on disc and high point on hub while
assembly. Assemble with countersunk screws.
2. Tighten drive shaft nut 17.5 ± 2 kg-m torque and
lock by staking.
