SUSPENSION

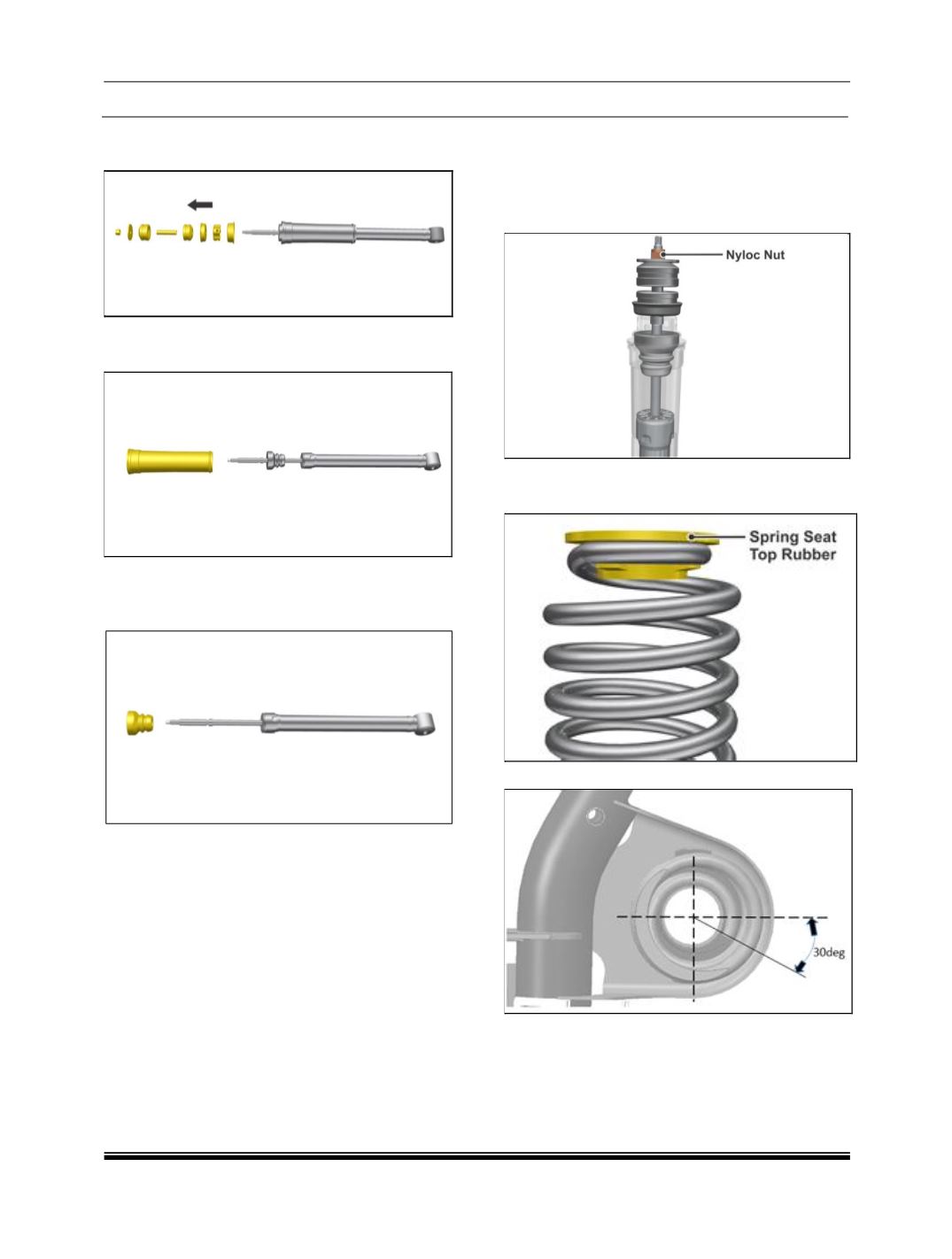

1. Remove the rubber pad and metal washer as

shown.

2. Pull the plastic cover apart.

3. Pry out the bump stopper from the shock

absorber as shown.

4. Check for any oil leakage in the shock absorber,

if any replace the unit.



Check bump stop for cracks and replace if any.



Check top rubber for cracks.



Check dust cover for damage and replace it if

any.



ASSEMBLY OF REAR SHOCKABSORBER:

1. Refit the bump stop over the shock absorber.

2. Place the metal cover and washer over it.

3. Position the rubber pad over the assembled

Unit.

INSTALLATION OF REAR SHOCK ABSORBER

AND COIL SPRINGS:

1. Refit the shock absorber top mounting

fasteners with new nylon nut in the luggage

compartment and tighten to 2.5 to 3 kgm

Torque.

2. Fit and rotate the top rubber with the coil spring.

LH Spring Orientation
