TRANSAXLE TA6300 AMT
39

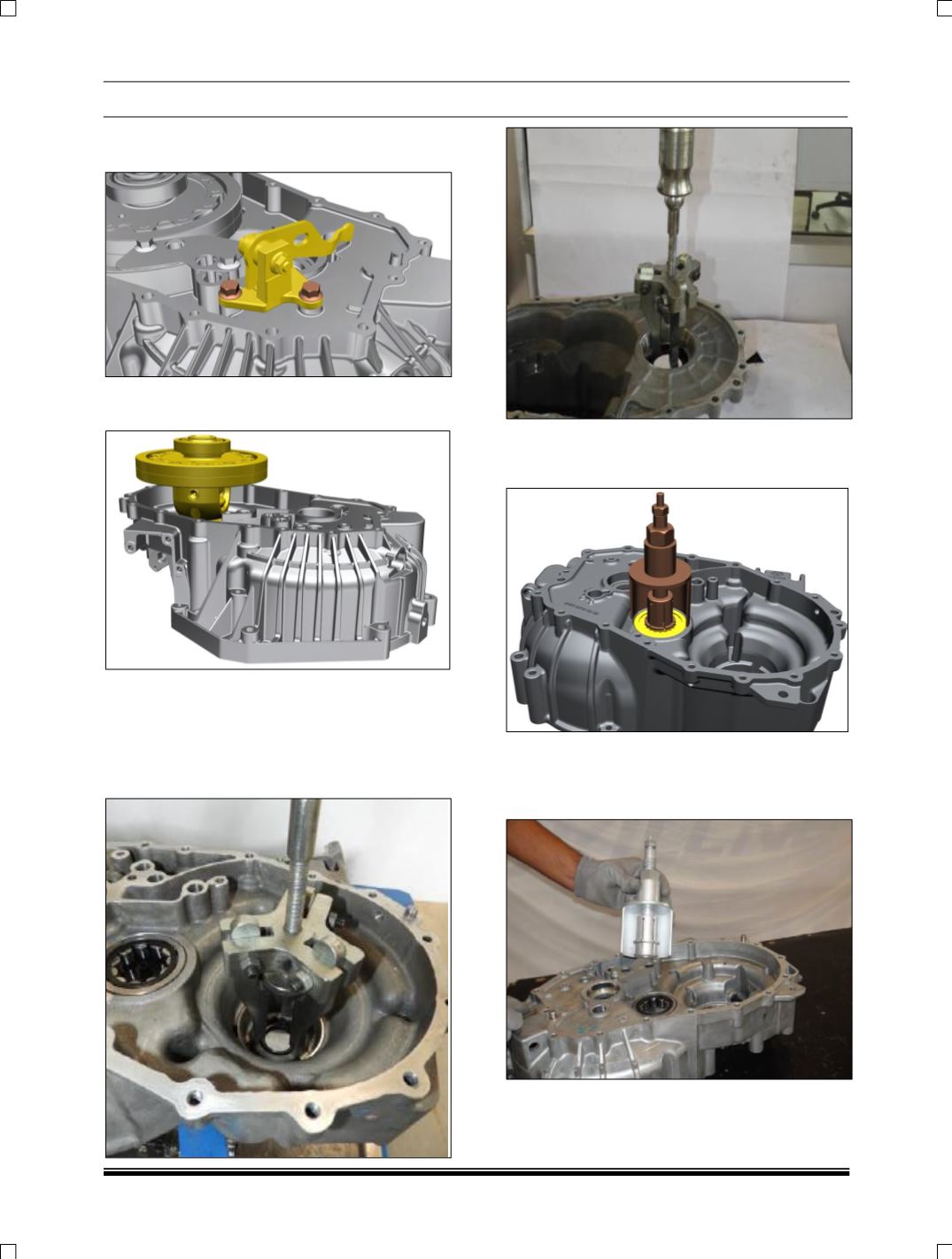

22. Unscrew hex Flange screw M8x22 & take out
reverse Lever bracket Assy.
23. Remove the differential assembly along with
taper roller bearing from the housing front.
24. Remove oil seals of drive shaft from housing.
Replace it with a new one while
assembling.
25. Remove Outer race taper bearing of
differential from front & rear housing with the
help of puller 5438 5980 2603.
26. Remove Outer race cylindrical roller bearing
of lay shaft from front housing with the help of
puller 5438 5980 2617.
PROCEDURE FOR REMOVAL OF LAY OR
COUNTER SHAFT BEARING
Position the transaxle RH side case, facing the
bearing in upward direction.
